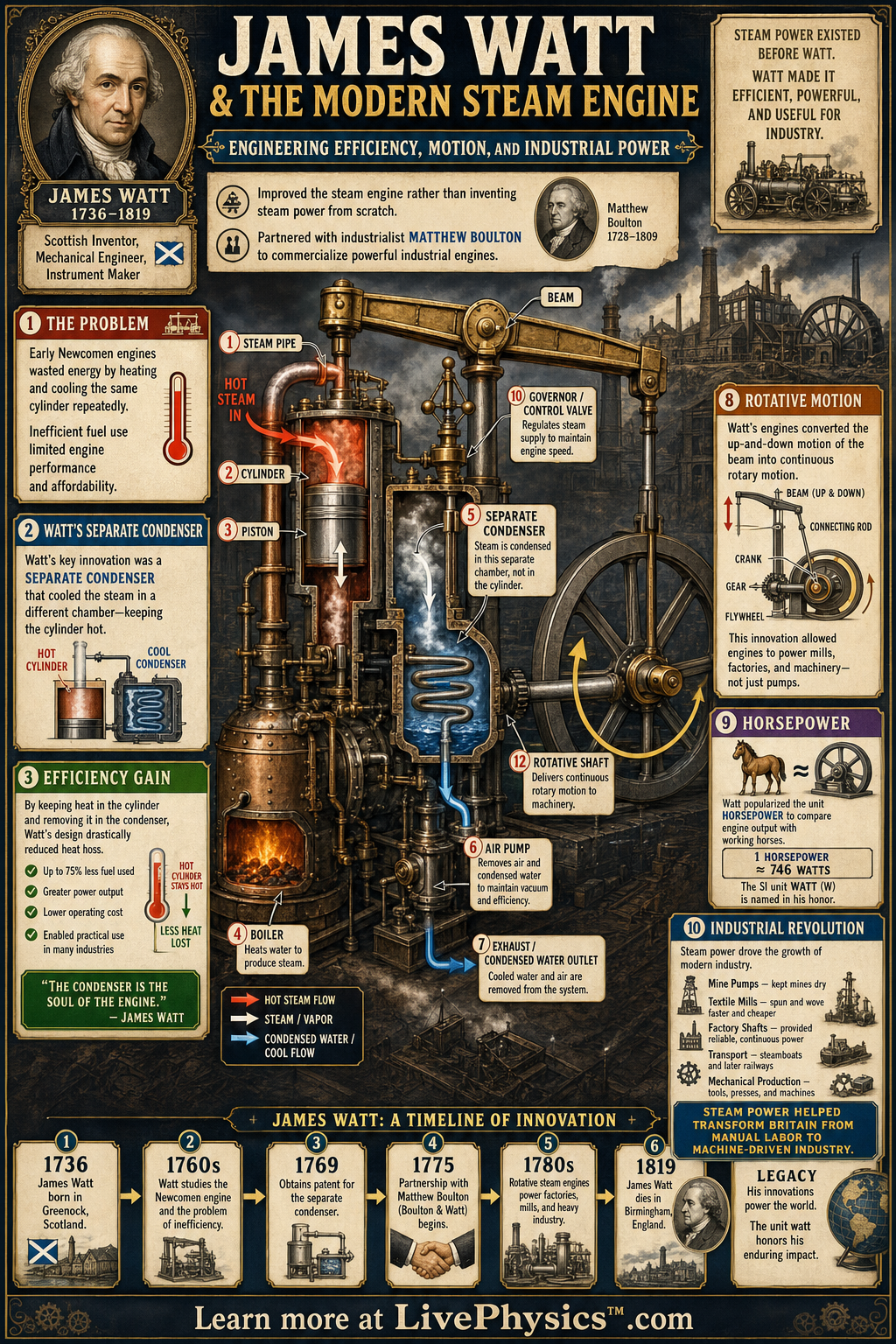

Click image to open full size
Engineering
James Watt: Inventor of the Modern Steam Engine
Separate condenser, rotative motion, and the Industrial Revolution
Related Tools
Related Worksheets
James Watt was a Scottish instrument maker and engineer whose improvements to steam engines helped change mining, manufacturing, and transportation. Earlier steam engines could pump water, but they wasted large amounts of heat and fuel. Watt's redesign made steam power more efficient and practical for factories far from rivers. His work became a key driver of the Industrial Revolution because it turned heat energy into reliable mechanical work.
Key Facts
- Watt's separate condenser kept the main cylinder hot while condensing steam in a cooler chamber, greatly reducing wasted heat.
- Work is energy transferred by a force: W = Fd.
- Power is the rate of doing work: P = W/t.
- One horsepower was defined by Watt as about 746 watts: 1 hp = 746 W.
- Engine efficiency compares useful output energy to input heat energy: efficiency = useful output energy/input energy.
- Watt's rotative steam engine converted the up and down motion of a piston and beam into continuous rotation for factory machines.
Vocabulary
- Steam engine
- A heat engine that uses steam pressure to push a piston or turbine and produce mechanical motion.
- Separate condenser
- A chamber added by Watt where steam is cooled and condensed without cooling the main cylinder.
- Piston
- A moving part inside a cylinder that is pushed by pressure and transfers force to the engine mechanism.
- Flywheel
- A heavy rotating wheel that stores rotational energy and helps keep an engine turning smoothly.
- Horsepower
- A unit of power popularized by Watt to compare steam engines with the work rate of horses.
Common Mistakes to Avoid
- Saying James Watt invented the first steam engine, which is wrong because earlier engines by inventors such as Thomas Newcomen already existed. Watt improved steam engines so much that they became far more efficient and widely useful.
- Confusing power with energy, which is wrong because energy is the amount of work done while power is how fast work is done. Use P = W/t when time matters.
- Thinking the separate condenser made the steam hotter, which is wrong because its main purpose was to condense steam away from the cylinder. This kept the cylinder hot and reduced repeated heating and cooling losses.
- Assuming a beam engine only pumped water, which is incomplete because Watt and his partners developed rotative motion. That allowed steam engines to drive mills, textile machines, and other factory equipment.
Practice Questions
- 1 A Watt engine does 120000 J of useful work in 30 s. What is its power in watts, and how many horsepower is this using 1 hp = 746 W?
- 2 A steam engine receives 500000 J of heat from burning fuel and delivers 75000 J of useful mechanical energy. What is its efficiency as a decimal and as a percent?
- 3 Explain why placing the condenser in a separate chamber made Watt's engine more fuel efficient than an engine that repeatedly heated and cooled the same cylinder.
