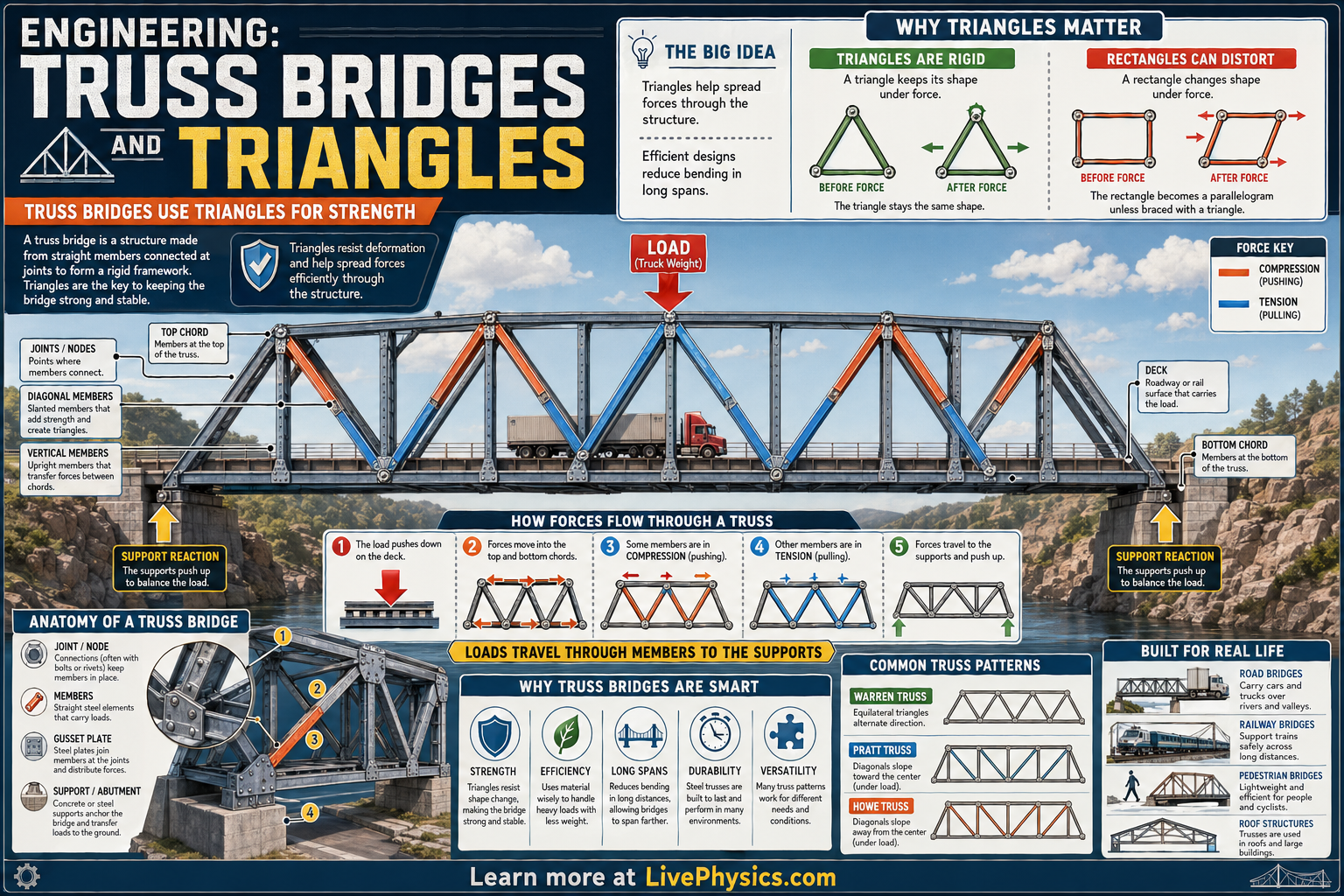

Truss bridges are structures made from connected members arranged in repeating triangles. Engineers use them because triangles are strong, stable, and efficient at carrying loads over long distances. This matters in bridge design because the structure must safely support cars, trains, wind, and its own weight.
A well designed truss can do this with less material than a solid beam of the same span.
The key idea is that a triangle keeps its shape when forces act on it, while shapes like rectangles can bend into new forms unless extra support is added. In a truss bridge, loads are transferred through members that are mostly in tension or compression. This makes it easier to predict how forces move through the structure and where reinforcement is needed.
Engineers analyze these force paths to choose member sizes, materials, and truss patterns for safe and economical designs.
Understanding Truss Bridges and Triangles
A bridge load does not stay where it lands. A vehicle presses down on the roadway, then the floor beams and joints pass that load into the main truss. From there, the forces travel along several possible routes toward the supports at each end.
This route is called a load path. Engineers want every important load path to be clear and continuous.
A missing member, weak connection, or poorly placed opening can interrupt the path and concentrate force in a small region. That concentration can cause a crack, bend, or connection failure even when most of the structure looks strong.
Truss calculations often begin at the joints. Engineers draw a separate force diagram for one joint and include every member attached to it, plus any external load or support reaction. If the joint is at rest, the horizontal forces balance and the vertical forces balance.
Starting at a joint with only a few unknown member forces makes the calculation manageable. This method shows whether a member pulls away from a joint or pushes into it. A negative result is not a mistake by itself.
It usually means the assumed force direction was opposite to the real direction. Careful sign use matters because it identifies the job done by each member.
Members in pulling force face a different risk from members in pushing force. A tension member can fail if it stretches too much, yields, or breaks across a weak section. A compression member can buckle long before its material is crushed.
Buckling is a sudden sideways bend. It is more likely in a long, thin member than in a short, thick one. This is why the top parts of many bridge trusses need special attention.
Under ordinary downward loading, upper members are often compressed while lower members are often stretched. The exact pattern changes near supports, under moving loads, or during strong wind.
Real bridges are more complicated than classroom trusses. Joints have bolts, welds, plates, and some stiffness, so they are not perfect free turning pins. Members have weight, supports can shift slightly, and repeated traffic creates fatigue.
Fatigue damage grows from many small stress cycles, even when no single load is large enough to cause immediate failure. Temperature changes make steel expand and contract, so bridges often include expansion joints or bearings that allow controlled movement.
When learning trusses, draw neat joint diagrams, label every force direction, and check whether the answer makes physical sense. A very slender compression member deserves suspicion, while a large force at a joint should lead to a close check of the connection.
Key Facts
- A triangle is rigid because its side lengths fix its shape, unlike a four sided frame that can shear.
- Static equilibrium requires sum of forces in x = 0, sum of forces in y = 0, and sum of torques = 0.
- Stress is force per area: sigma = F/A.
- Strain is change in length divided by original length: epsilon = deltaL/L0.
- For many truss problems, members are treated as two force members carrying only tension or compression.
- A simple planar truss is often checked with m = 2j - 3, where m is number of members and j is number of joints.
Vocabulary
- Truss
- A truss is a framework of connected members, usually arranged in triangles, that supports loads.
- Tension
- Tension is a pulling force that stretches a structural member.
- Compression
- Compression is a pushing force that shortens or squeezes a structural member.
- Joint
- A joint is the connection point where truss members meet and transfer forces.
- Load
- A load is any force acting on a structure, such as weight from vehicles, people, wind, or the bridge itself.
Common Mistakes to Avoid
- Assuming every member carries the same force, which is wrong because force depends on the load location and the geometry of the truss. Different members can be in tension, compression, or near zero force.
- Treating rectangles as just as stable as triangles, which is wrong because a rectangular frame can deform without diagonal bracing. Triangles resist shape change much better.
- Ignoring support reactions, which is wrong because the forces at the supports are needed before solving for internal member forces. Without them, equilibrium equations will not balance.
- Confusing tension with compression, which is wrong because the sign and direction of force matter in design. A member that is safe in tension may buckle if it is actually in compression.
Practice Questions
- 1 A truss member has a cross sectional area of 0.005 m^2 and carries a tensile force of 20000 N. What is the stress in the member?
- 2 A simple planar truss has 8 joints. Using m = 2j - 3, how many members are needed for a just stable simple truss?
- 3 Explain why engineers prefer repeating triangles instead of rectangles in a truss bridge, and describe how this helps the bridge carry loads safely.
