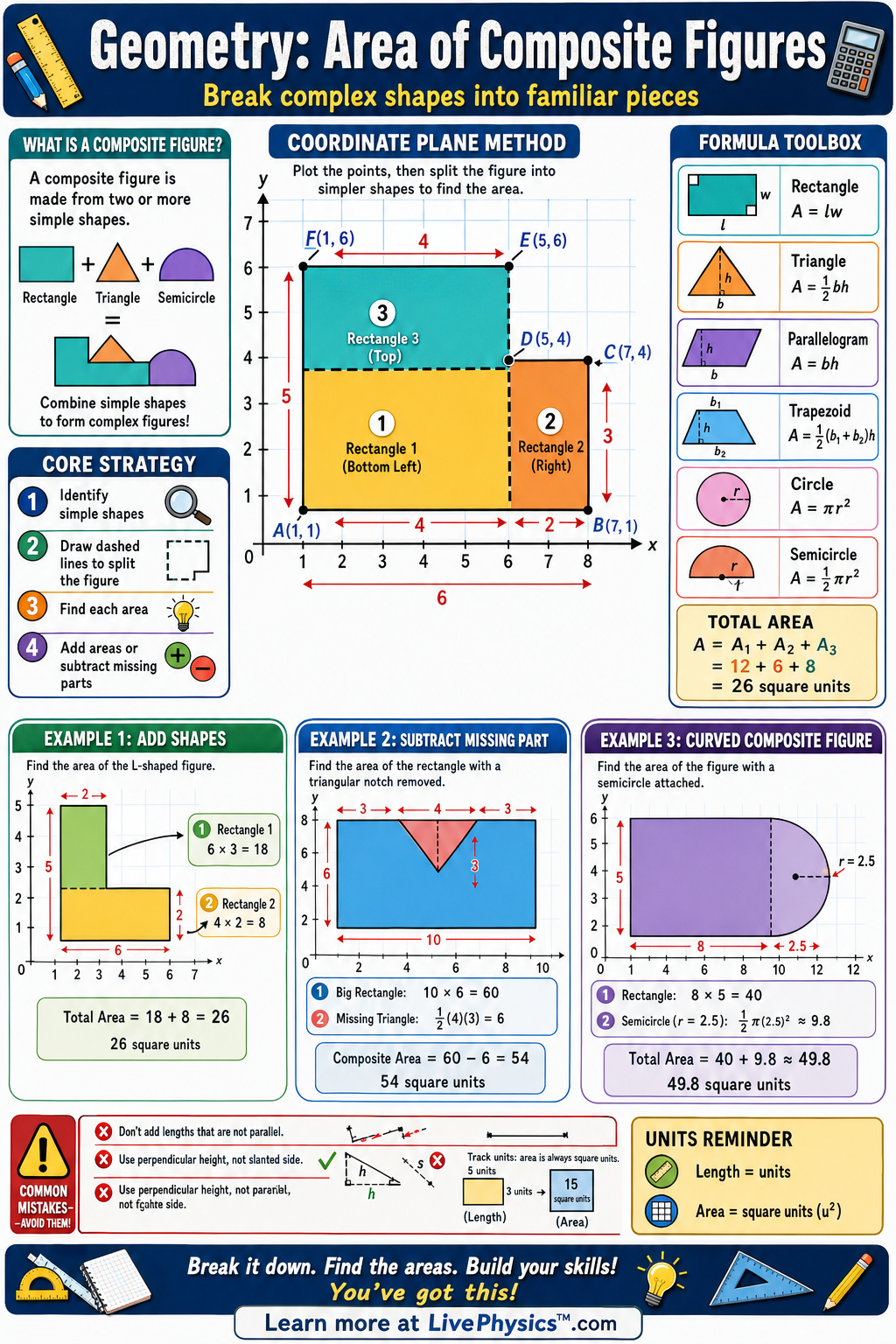

Composite figures are shapes made by joining two or more simpler figures, such as rectangles, triangles, trapezoids, semicircles, or circles. Finding their area matters because many real objects, floor plans, gardens, signs, and designs are not perfect single shapes. The main strategy is to break the figure into parts you already know how to measure.
Then you add or subtract areas carefully to find the total region covered.
Understanding Area of Composite Figures
A good first step is to trace the outside boundary of the region you need. This prevents a common mistake of measuring the whole drawing instead of the shaded or usable part. Next, draw light helper lines that divide the region into familiar pieces.
Choose lines that create pieces with known measurements or measurements you can work out from nearby labels. More than one breakdown can be correct.
A shape shaped like a block letter L can become two rectangles, or one large rectangle with one smaller rectangular corner removed. The second method is often faster when the outside dimensions are known.
Every measurement must belong to the correct part. A shared edge between two pieces is not extra area. It only helps define both pieces.
Watch for lengths that are missing but can be found by subtraction. For example, if a full horizontal side is twelve units and one section takes five units, the remaining section is seven units. Write these derived lengths on the diagram before calculating anything.
For triangles, the height must meet the chosen base at a right angle. A slanted side is not automatically the height. This detail causes many wrong answers, especially in irregular drawings.
Curved sections need equal care. A semicircle uses half the area of its full circle, while a quarter circle uses one fourth. The radius is the distance from the center to the edge.
If a diagram gives the diameter, divide it by two before finding the circle area. Curved cutouts are subtracted only when they are missing from the region. Curved pieces attached to the outside are added.
Keep pi in the calculation until the final step when possible. This reduces rounding error. If a class asks for an exact answer, leave pi in the result rather than changing it to a decimal.
Area is measured in square units because it counts how many unit squares fit inside a surface. If lengths are in centimeters, the answer is in square centimeters. A floor plan may use square meters or square feet.
This matters in real tasks such as estimating paint for a wall with a window opening, ordering grass for a yard around a circular pond, or finding the material needed for a metal sign. Before finalizing an answer, check whether your pieces cover the region once with no gaps or overlaps.
Then estimate whether the result makes sense by comparing it with the area of a simple enclosing rectangle. A result larger than that rectangle signals that something was probably added twice.
Key Facts
- Rectangle area: A = lw
- Triangle area: A = 1/2 bh
- Parallelogram area: A = bh
- Trapezoid area: A = 1/2(b1 + b2)h
- Circle area: A = pi r^2
- Composite area: total area = sum of added parts minus cut-out parts
Vocabulary
- Composite figure
- A composite figure is a shape made from two or more simpler geometric figures.
- Decompose
- To decompose a figure means to split it into simpler shapes whose areas are easier to find.
- Base
- The base is the side of a shape used with its perpendicular height to calculate area.
- Height
- The height is the perpendicular distance from a base to the opposite side or vertex.
- Coordinate grid
- A coordinate grid is a plane with horizontal and vertical number lines used to locate points and measure lengths.
Common Mistakes to Avoid
- Adding every labeled length, which is wrong because area depends on two-dimensional space, not just the perimeter around the outside.
- Using a slanted side as the height, which is wrong because height must be perpendicular to the base.
- Forgetting to subtract holes or missing sections, which gives an area that is too large because empty space is counted as part of the figure.
- Mixing units such as inches and feet, which is wrong because all measurements must use the same unit before calculating area.
Practice Questions
- 1 A composite figure is made of a rectangle that is 12 cm by 7 cm and a right triangle attached to one side with base 6 cm and height 7 cm. What is the total area?
- 2 On a coordinate grid, a rectangle has vertices (0,0), (8,0), (8,5), and (0,5). A triangular section with base 4 units and height 3 units is removed from one corner. What is the remaining area?
- 3 A student splits an irregular composite figure into two rectangles in one solution and into a rectangle plus two triangles in another solution. Explain why both methods can give the same total area if the measurements and calculations are correct.
