Volume and surface area help us describe how much space a solid object takes up and how much material covers its outside. These ideas are used in packaging, construction, engineering, and everyday measurement. Prisms, cylinders, cones, and spheres are common 3D shapes that appear in tanks, cans, boxes, balls, and many other objects.
Learning their formulas helps students connect geometry to real physical objects.
Each solid has a different structure, so its formulas come from different geometric ideas. Volume measures the amount of space inside, usually in cubic units, while surface area measures the total area of all outer faces or curved surfaces, usually in square units. Prisms and cylinders have matching cross sections along their length, while cones and spheres involve curved geometry.
Understanding which dimensions to use, such as radius, height, and slant height, is the key to solving problems correctly.
Understanding Volume & Surface Area
A useful way to understand volume is to imagine filling a solid with tiny unit cubes. A rectangular box that is four units long, three units wide, and two units high holds twenty four unit cubes. For solids with a constant cross section, every layer has the same area.
The number of layers is the height, so multiplying base area by height makes sense. This idea works for any prism, even one with a triangular or hexagonal base. A cylinder follows the same layer idea.
Its layers are circles rather than polygons. The circle area is pi times radius squared, which explains the cylinder calculation.
Pyramids and cones come to a point, so their layers get smaller as they rise. They do not fill space as efficiently as a prism or cylinder with the same base and perpendicular height. In fact, three matching pyramids can fill a prism, and three matching cones can fill a cylinder.
This is why their volume is one third of the corresponding pointed-free solid. The height used for volume must travel straight from the base to the tip at a right angle to the base. A slanted edge is not the height unless the problem specifically shows it is perpendicular.
Surface area is easiest to picture by cutting the outside covering of a solid and laying it flat. This flat pattern is called a net. A box net contains rectangles for its side faces plus two matching base faces.
A cylinder net has two circles and one rectangle. The rectangle wraps around the circular base, so its length equals the distance around the circle. For a cone, the curved side opens into part of a circle.
Its size depends on slant height, not vertical height. This difference is a common source of errors. Use slant height for the cone's outside covering, but use perpendicular height for its capacity.
Real problems often require deciding what is included before calculating. A paint problem may exclude the bottom of a tank because it touches the ground. A cardboard package may need extra material for folds and overlap.
A fish tank volume may use inside measurements, while the glass surface area uses outside measurements. Units give an important check. Volume answers must use cubic units, such as cubic centimeters or cubic meters.
Surface area answers use square units. Keep all measurements in the same unit before starting. When a radius is given, do not accidentally use the diameter.
The diameter is twice the radius. For spheres, notice that a small change in radius has a large effect because radius is used repeatedly in both calculations. Drawing a labeled sketch and marking the needed dimensions prevents many mistakes.

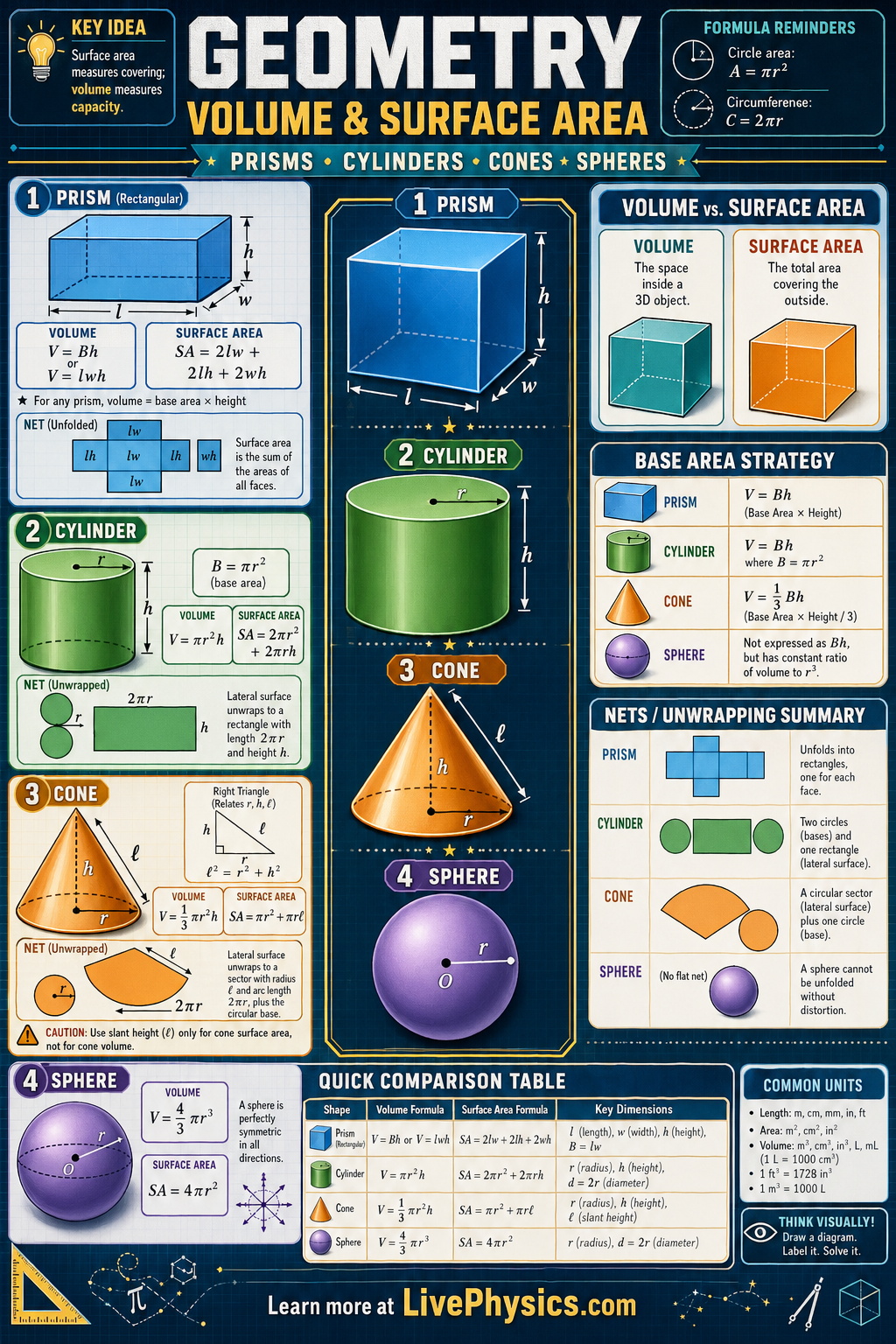

Key Facts
- Volume of a prism: , where is the area of the base.
- Surface area of a prism: SA = 2B + Ph, where P is the perimeter of the base.
- Volume of a cylinder: .
- Surface area of a cylinder: .
- Volume of a cone: and surface area of a cone: .
- Volume of a sphere: and surface area of a sphere: .
Vocabulary
- Volume
- The amount of space inside a three dimensional object, measured in cubic units.
- Surface area
- The total area covering the outside of a three dimensional object, measured in square units.
- Base
- A face or surface used as the reference shape for finding the volume of a solid.
- Radius
- The distance from the center of a circle or sphere to its edge.
- Slant height
- The distance along the side of a cone from the top point to the edge of the circular base.
Common Mistakes to Avoid
- Using diameter instead of radius in formulas, which is wrong because most cylinder, cone, and sphere formulas use r, not 2r. Always divide the diameter by 2 before substituting.
- Mixing up surface area and volume, which is wrong because surface area uses square units and volume uses cubic units. Check whether the problem asks for covering the outside or filling the inside.
- Forgetting the circular bases in a cylinder's surface area, which is wrong because gives only the curved side. Add for the top and bottom.
- Using slant height instead of vertical height in cone volume, which is wrong because requires the perpendicular height. Slant height is used in the cone surface area formula instead.
Practice Questions
- 1 A rectangular prism has length 8 cm, width 3 cm, and height 5 cm. Find its volume and total surface area.
- 2 A cylinder has radius m and height m. Find its volume and total surface area in terms of .
- 3 A cone and a cylinder have the same radius and height. Explain why the cone's volume is less than the cylinder's volume and state the exact fraction of the cylinder's volume that the cone has.
