Angle Relationships Explorer

Pick a mode and drag the slider to explore how angles relate to each other. See complementary pairs, supplementary pairs, vertical angles, and all eight angles formed by parallel lines with a transversal. All computation runs in your browser.

Angle Relationship

Angle35°

1°89°

Try an example

Angle Relationships

Two angles are complementary when they add up to 90 degrees.

Angle A

35°

Angle B

55°

\angle A + \angle B = 90°

35° + \angle B = 90°

\angle B = 90° - 35°

\angle B = 55°

Reference Guide

Complementary Angles

Two angles are complementary when their measures add up to 90 degrees. They form a right angle together.

\angle A + \angle B = 90°

If one angle is 35 degrees, its complement is $90° - 35° = 55°$ . Complementary angles do not need to be adjacent.

Supplementary Angles

Two angles are supplementary when their measures add up to 180 degrees. They form a straight line together.

\angle A + \angle B = 180°

If one angle is 120 degrees, its supplement is $180° - 120° = 60°$ . Adjacent angles on a straight line are always supplementary.

Vertical Angles

When two straight lines cross, they form two pairs of vertical (opposite) angles. Vertical angles are always equal.

\angle 1 = \angle 3, \quad \angle 2 = \angle 4

Each pair of adjacent angles around the intersection is supplementary (adds to 180 degrees).

Parallel Lines and Transversals

A transversal crossing two parallel lines creates eight angles with these relationships.

Corresponding angles are equal
Alternate interior angles are equal
Alternate exterior angles are equal
Co-interior (same-side) angles sum to 180 degrees

Knowing just one angle lets you find all eight.

TopicsShapes Measurement Trigonometry Geometry Labeled Diagram

Related Content

Visual Explainers

How Spirals Show Up Everywhere in Nature

A pattern made by growth and ratio

Why Bees Build Hexagons Not Squares

A shape that saves wax while filling space

Why Is Dividing by Zero Impossible?

A rule that protects number sense

Why Can Averages Be Misleading?

How one number can hide the shape of data

Related Tools

Area & Perimeter Explorer

Calculate area and perimeter of rectangles, triangles, parallelograms, trapezoids, and circles with SVG visuals and step-by-step formulas.

Right-Triangle Trigonometry (SOH-CAH-TOA) Solver

Solve any right triangle from two known sides or angles using the SOH-CAH-TOA ratios, inverse trig, and the Pythagorean theorem, with a to-scale labeled diagram and step-by-step reasoning.

Special Right Triangles Explorer

Explore the 30-60-90 and 45-45-90 special right triangles, enter one known side, and get every side in exact radical form and decimals with a to-scale labeled diagram and the 1:1:√2 and 1:√3:2 ratios.

Angle of Elevation & Depression Visualizer

Solve real-world angle of elevation and depression problems by entering any two of the horizontal distance, height, line of sight, or angle, with a to-scale scene and worked trigonometry steps.

Related Labs

Angle Relationships Lab

Investigate complementary (sum 90°), supplementary (sum 180°), vertical (equal), and parallel-line angle relationships. Set Angle A, observe Angle B, and record pairs to discover the numerical rules connecting each type.

Angle Builder Lab

Build angles from 0° to 360° using a slider, classify each as acute, right, obtuse, straight, or reflex, and record data to discover the boundaries between angle types and the landmark turn angles.

Geometric Constructions Lab

Perform 8 compass-and-straightedge constructions step by step. Build perpendicular bisectors, angle bisectors, parallel lines, equilateral triangles, and inscribed hexagons with verification

Coordinate Geometry & Conics Lab

Prove quadrilateral properties using coordinates (distance, slope, midpoint). Explore parabolas, ellipses, hyperbolas, and circles. Classify conics from general equations using B²−4AC

Study Posters

Angle Types and Angle Relationships

Geometry, Complementary and Supplementary Angles

Parallel Lines Cut by a Transversal

Worksheets

Geometry, Complementary Equals 90 and Supplementary Equals 180 Practice

Angle Relationships, Complementary and Supplementary

Geometry, Angles

Geometry, Coordinate Geometry

Cheat Sheets

Angles & Angle Relationships

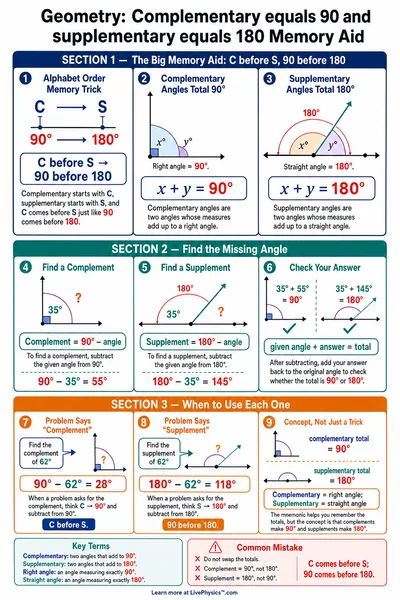

Complementary equals 90 and supplementary equals 180 Memory Aid

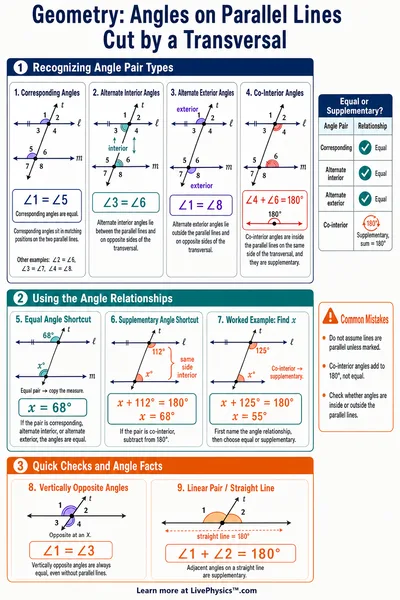

Angles on Parallel Lines Cut by a Transversal
