A capacitor is a device that stores electric charge and electric potential energy using two conductors separated by an insulator. It appears in circuits that smooth voltage, store energy briefly, filter signals, and control timing. The basic idea is simple: one plate gains positive charge, the other gains negative charge, and an electric field forms between them.
Understanding capacitors helps students connect charge, voltage, energy, and electric fields in one system.

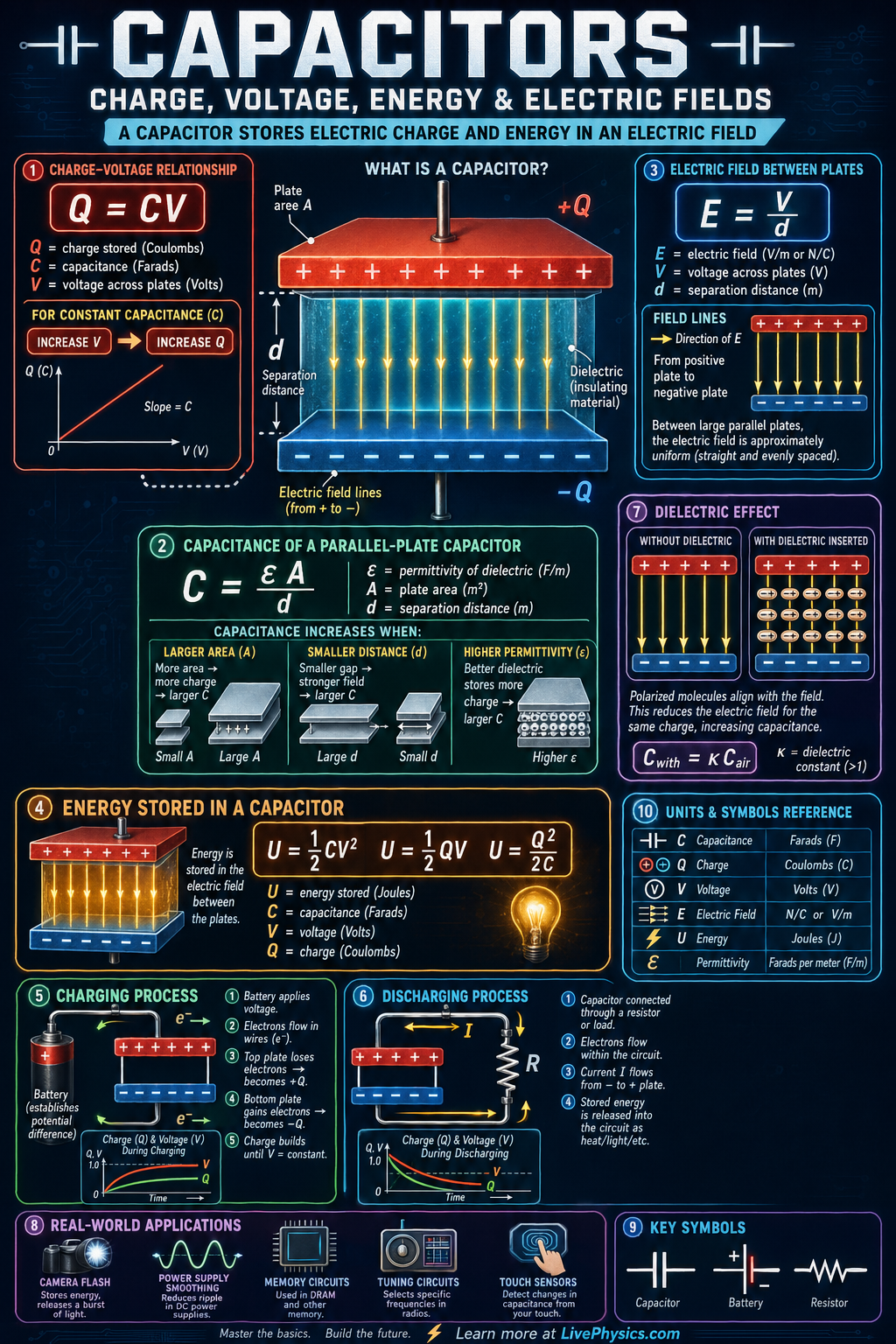

For a parallel plate capacitor, the amount of charge stored depends on the capacitance and the voltage across the plates. The electric field in the gap is related to the voltage and plate separation, and the stored energy depends on both capacitance and voltage. A dielectric placed between the plates changes how the field behaves and usually increases the capacitance.
These relationships explain why capacitor geometry and material choice matter in real devices.
Understanding Capacitors
When a capacitor is connected to a battery, electrons move through the wires, not across the insulating gap. Electrons collect on one conductor while electrons are removed from the other. This separation creates an electric force that increasingly opposes further movement of charge.
At the start of charging, charge moves easily because the opposing voltage is small. As charge builds up, each extra electron requires more work from the battery.
Eventually the capacitor voltage matches the battery voltage and the steady current falls almost to zero. This is why a capacitor blocks steady direct current after it has charged, even though it can take part in a circuit during the brief charging process.
The stored energy comes from work done while moving charge onto the conductors. Early in the process, little work is needed because the voltage is low. Later, the growing electric field makes each added amount of charge harder to place.
The energy is held in the electric field, mainly in the material between the conductors. This matters because a strong field can damage that material. Every real capacitor has a maximum voltage rating.
Above that rating, the insulator may break down and begin conducting. The result can be heating, permanent failure, or a sudden short circuit. Larger separation can reduce the field for a given voltage, but it changes the way the device stores charge.
Capacitors are especially important when voltages change with time. In a circuit with a resistor, charging does not happen instantly because the resistor limits current. The time scale is set by resistance times capacitance.
A larger resistance or a larger capacitance gives a slower change in voltage. This behaviour is used in camera flashes, blinking lights, touch sensors, audio circuits, and timing circuits. In a power supply, a capacitor can charge near the peaks of an alternating voltage, then release energy between peaks.
This reduces unwanted voltage ripple. In signal circuits, a capacitor can pass changing parts of a signal while preventing a steady voltage level from reaching the next section.
Real capacitors are not perfect. A small leakage current can slowly remove stored charge. Their leads and internal materials have some resistance, which can waste energy as heat during fast charging and discharging.
Some types are polarised, meaning they must be connected with the correct positive and negative sides. Reversing them can cause damage. Capacitors can retain a dangerous charge after equipment is unplugged, especially in power supplies and flash units.
When solving school problems, identify whether the capacitor is isolated or remains connected to a battery. That detail decides whether charge stays fixed or voltage stays fixed when the spacing or material changes.
Key Facts
- Capacitance is defined by .
- For a parallel plate capacitor, .
- The electric field between ideal parallel plates is .
- Stored energy can be written as .
- Equivalent forms of capacitor energy are and .
- A dielectric increases capacitance by , where is the dielectric constant.
Vocabulary
- Capacitance
- Capacitance is a measure of how much charge a device stores per unit voltage.
- Dielectric
- A dielectric is an insulating material placed between capacitor plates that affects the electric field and usually increases capacitance.
- Electric field
- An electric field is the region where electric charges experience a force, and in a capacitor it points from the positive plate to the negative plate.
- Potential difference
- Potential difference, or voltage, is the electrical energy per unit charge between two points.
- Parallel plate capacitor
- A parallel plate capacitor is a capacitor made of two flat conducting plates separated by a small gap.
Common Mistakes to Avoid
- Using with mismatched units, which gives wrong answers because charge must be in coulombs, capacitance in farads, and voltage in volts.
- Thinking the plates touch through the dielectric, which is wrong because the plates must remain separated by an insulator or gap to store charge properly.
- Assuming a capacitor stores charge on only one plate, which is wrong because equal magnitude and opposite sign charges build up on both plates.
- Using instead of , which doubles the stored energy and leads to a systematic calculation error.
Practice Questions
- 1 A capacitor has capacitance 5.0 microfarads and is connected to a 12 V battery. Find the charge stored on the capacitor.
- 2 A parallel plate capacitor has plate area and plate separation with air between the plates. Use to calculate the capacitance.
- 3 A dielectric is inserted between the plates of an isolated charged capacitor. Explain what happens to the capacitance, the electric field, and the voltage across the plates.
