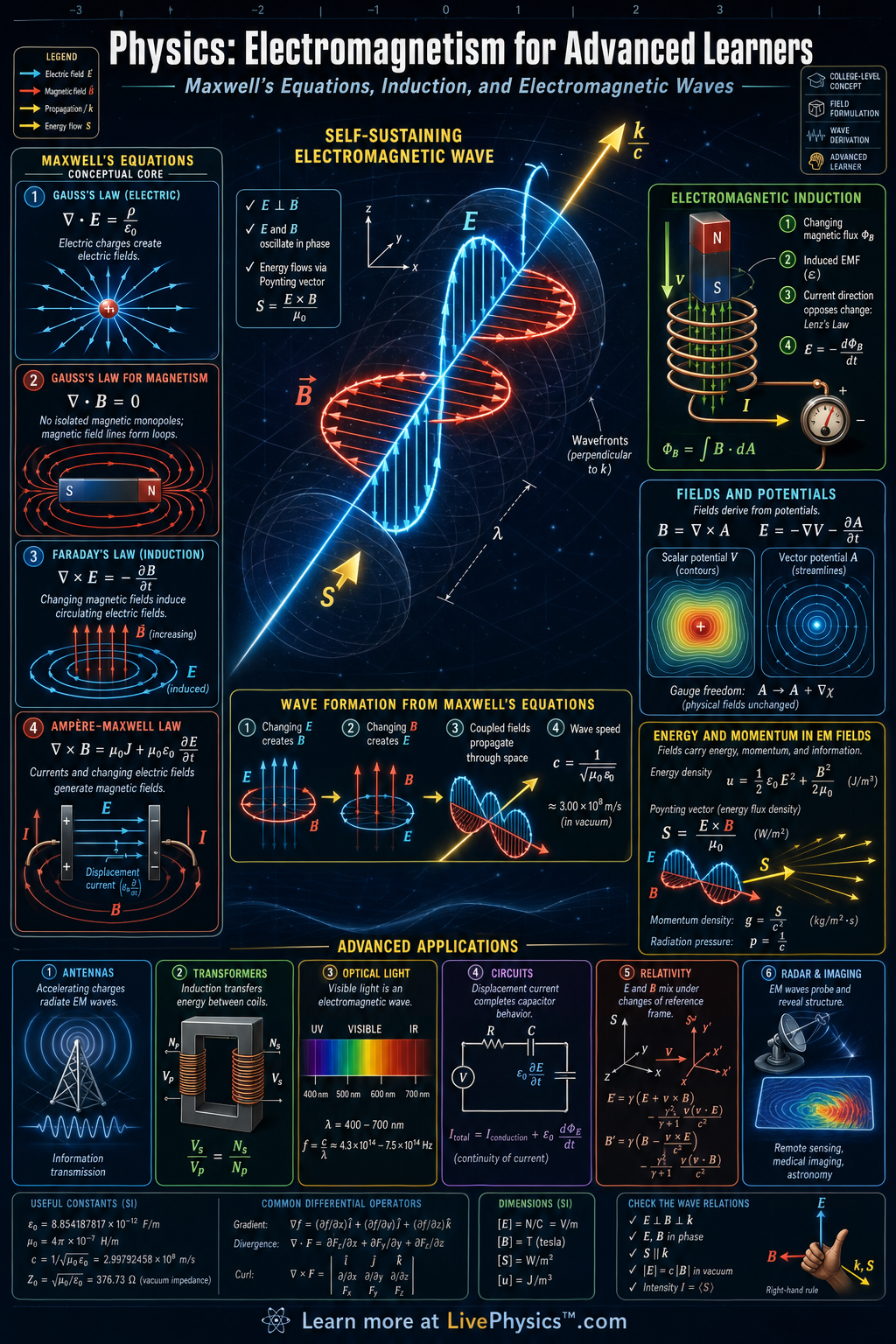

Electromagnetism unifies electric fields, magnetic fields, charge, current, and light into one theory. It explains technologies from motors and generators to antennas, fiber optics, MRI, and wireless communication. For advanced learners, the central idea is that changing electric and magnetic fields can create each other and carry energy through space as electromagnetic waves.
Maxwell’s equations provide the compact mathematical structure behind this unification.
In empty space, a changing electric field produces a magnetic field, and a changing magnetic field produces an electric field, allowing a self-sustaining wave to propagate at the speed of light. The electric field, magnetic field, and direction of travel are mutually perpendicular, and the wave transports energy and momentum. Induction connects this field behavior to circuits, where changing magnetic flux creates an induced emf.
Boundary conditions, superposition, and energy flow help explain reflection, transmission, polarization, and radiation from accelerating charges.
Understanding Electromagnetism for Advanced Learners
Maxwell’s equations become easier to use when you treat them as rules about sources and circulation. Electric charge is a source or sink of electric field. A positive charge has field lines pointing outward, while a negative charge has field lines pointing inward.
The total electric flux through a closed surface depends only on the charge inside it. This makes highly symmetric problems manageable. For a charged sphere, long straight wire, or large flat sheet, symmetry tells you the direction and relative size of the field before calculation begins.
Magnetic fields behave differently. Their field lines form continuous loops. A bar magnet has north and south poles, but cutting it in half creates two smaller dipoles rather than a single magnetic pole.
Faraday’s law gives induction its direction as well as its size. The induced effect opposes the change in magnetic flux that produced it. This is Lenz’s law, and the minus sign in the usual formula represents this opposition.
If a magnet moves toward a conducting loop, the loop develops a current whose magnetic field pushes back against the approaching magnet. Energy conservation is the reason. If the induced current helped the motion instead, the system could gain energy without work being done.
In real circuits, induced voltage depends on how rapidly flux changes, the area of the loop, its orientation, and the number of turns in a coil. Transformers use many turns to raise or lower alternating voltage. They work with changing current, not steady direct current.
The Ampere Maxwell law fixes an important gap in the older law for magnetic fields around currents. Consider a charging capacitor. Current flows through the wires, but no charges cross the insulating gap between the plates.
Still, a magnetic field exists around the circuit. Maxwell showed that a changing electric field in the gap has the same field producing role as conduction current. This term is called displacement current, though charges do not need to travel across empty space.
It preserves charge conservation and makes the equations consistent. It becomes especially important in capacitors, radio antennas, and high frequency circuits, where fields in the space around components can matter as much as current inside metal.
When studying waves, keep separate the motion of the wave from the motion of charges in a material. In a vacuum, the fields carry energy through space. The energy flow points in the direction given by the electric field crossed with the magnetic field.
Near a battery and wire, this idea can be surprising. Much of the energy travels in the electromagnetic field surrounding the wire, then enters the resistor where it becomes thermal energy. At boundaries between materials, charges within atoms respond to the incoming field.
That response can produce reflection, transmission, refraction, or absorption. Polarization describes the direction in which the electric field oscillates.
A polarizing filter blocks one direction and passes another. Careful sketches of field directions, loop orientation, and changing flux prevent many common sign errors.
Key Facts
- Gauss’s law for electricity: ∮ E · dA = Q_enclosed / ε0.
- Gauss’s law for magnetism: ∮ B · dA = 0, meaning there are no isolated magnetic monopoles in classical electromagnetism.
- Faraday’s law of induction: ε = -dΦB/dt, where ΦB = ∫ B · dA.
- Ampere-Maxwell law: ∮ B · dl = μ0 I_enclosed + μ0 ε0 dΦE/dt.
- Electromagnetic wave speed in vacuum: c = 1 / sqrt(μ0 ε0) = 3.00 × 10^8 m/s.
- For a plane electromagnetic wave in vacuum: E0 = cB0 and average intensity I = (1/2)cε0E0^2.
Vocabulary
- Electric field
- An electric field is a vector field that gives the electric force per unit positive charge at each point in space.
- Magnetic flux
- Magnetic flux is the surface integral of the magnetic field through an area, measuring how much magnetic field passes through that surface.
- Displacement current
- Displacement current is the term ε0 dΦE/dt that allows a changing electric field to produce a magnetic field even where no charges physically flow.
- Poynting vector
- The Poynting vector S = (1/μ0) E × B gives the direction and rate of electromagnetic energy flow per unit area.
- Polarization
- Polarization describes the orientation of the electric field oscillations in an electromagnetic wave.
Common Mistakes to Avoid
- Treating electric and magnetic fields as separate topics, which is wrong because Maxwell’s equations show they are coupled whenever fields change with time.
- Forgetting the negative sign in Faraday’s law, which is wrong because the sign represents Lenz’s law and the induced effect opposing the change in magnetic flux.
- Assuming a magnetic field does work on a moving charge, which is wrong because the magnetic force is perpendicular to velocity and changes direction rather than speed.
- Using E = Bc incorrectly as B = Ec, which is wrong because in a vacuum electromagnetic wave the correct relation is E = cB.
Practice Questions
- 1 A plane electromagnetic wave in vacuum has an electric field amplitude of 120 V/m. Find the magnetic field amplitude.
- 2 A circular coil with 50 turns and area 0.020 m^2 is perpendicular to a uniform magnetic field that decreases from 0.80 T to 0.20 T in 0.10 s. Find the magnitude of the average induced emf.
- 3 Explain why Maxwell’s displacement current term is necessary for electromagnetic waves to exist in empty space.
