Electromagnetism for High School
Magnetic fields, motors, and generators
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets

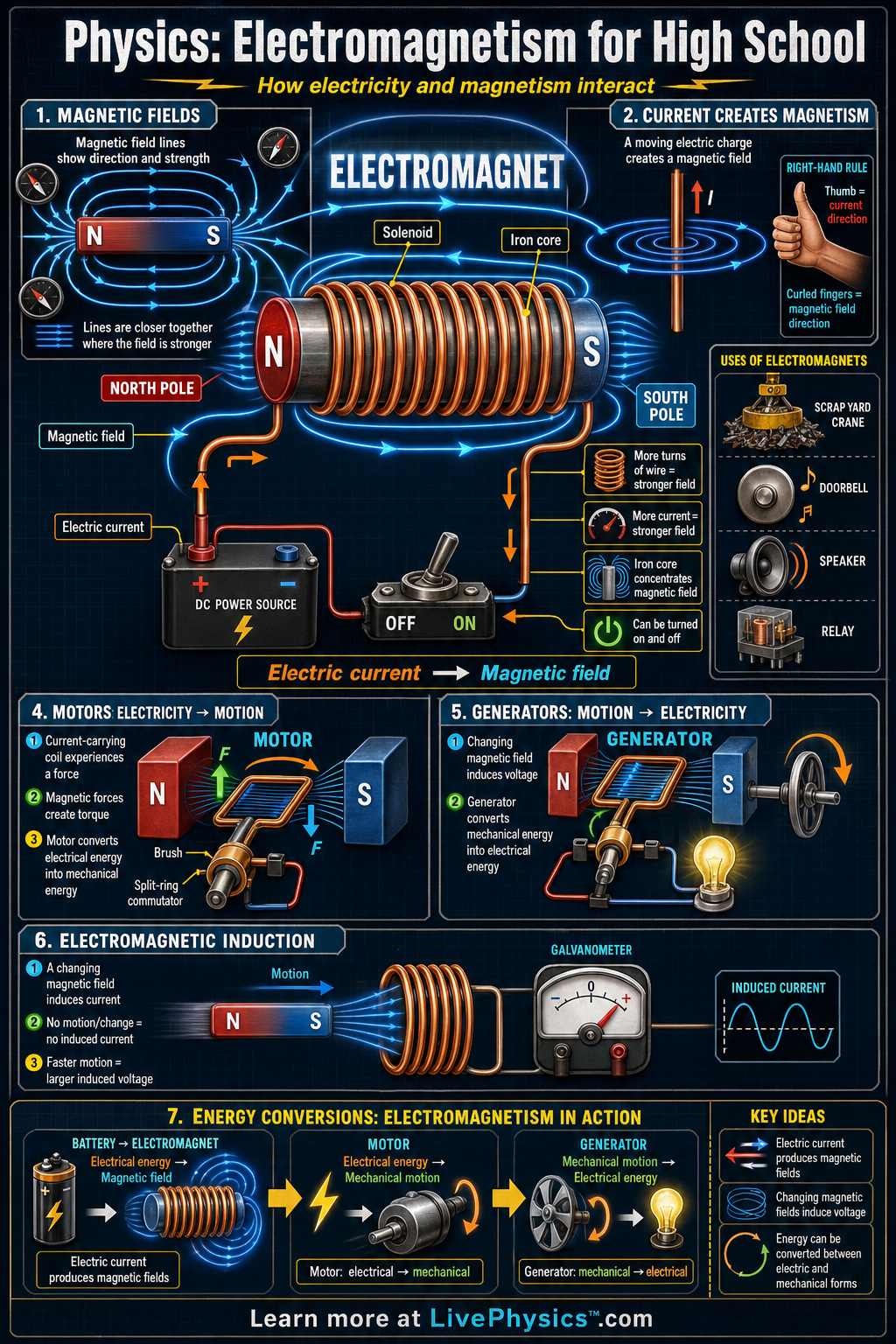

Electromagnetism connects electricity and magnetism into one powerful idea: moving electric charges create magnetic fields, and changing magnetic fields can create electric current. This explains how electromagnets, motors, generators, speakers, and many sensors work. In high school physics, electromagnetism is important because it links invisible fields to real forces, motion, and energy transfer. A coil of wire around an iron core is a clear example because it turns electric current into a strong, controllable magnet.
When current flows through a wire, a magnetic field forms in circles around the wire. Winding the wire into a coil stacks many field loops together, and adding an iron core makes the field much stronger because iron becomes magnetized. If the current changes, the magnetic field changes too, which can induce voltage in another wire or coil. Motors use magnetic forces to turn electrical energy into motion, while generators use motion in a magnetic field to produce electrical energy.
Key Facts
- A current-carrying wire produces a magnetic field around it.
- For a long straight wire, B = μ0I/(2πr), where B is magnetic field strength, I is current, and r is distance from the wire.
- For a long solenoid, B = μ0nI, where n is turns per meter and I is current.
- The magnetic force on a moving charge is F = qvB sin θ.
- Faraday's law of induction is ε = -NΔΦ/Δt, where ε is induced voltage, N is turns, and Φ is magnetic flux.
- A stronger electromagnet can be made by increasing current, adding more coil turns, or using an iron core.
Vocabulary
- Magnetic field
- A region around a magnet, current-carrying wire, or moving charge where magnetic forces can act.
- Electromagnet
- A magnet made by electric current flowing through a coil, often strengthened by an iron core.
- Solenoid
- A coil of wire that produces a magnetic field similar to a bar magnet when current flows through it.
- Electromagnetic induction
- The production of voltage or current in a conductor due to a changing magnetic field.
- Magnetic flux
- A measure of how much magnetic field passes through a surface, often written as Φ = BA cos θ.
Common Mistakes to Avoid
- Treating magnetic field lines as physical wires is wrong because field lines are a drawing tool that show direction and relative strength, not actual objects.
- Forgetting that a steady magnetic field does not induce current by itself is wrong because induction requires a changing magnetic flux through a loop.
- Using the wrong hand rule direction gives the wrong force or field direction because magnetic effects depend on three-dimensional orientation.
- Assuming an iron core creates electricity on its own is wrong because the core only strengthens and guides the magnetic field produced by current in the coil.
Practice Questions
- 1 A solenoid has 500 turns over a length of 0.25 m and carries a current of 2.0 A. Using B = μ0nI with μ0 = 4π × 10^-7 T m/A, calculate the magnetic field inside the solenoid.
- 2 A coil with 100 turns experiences a magnetic flux change from 0.020 Wb to 0.005 Wb in 0.30 s. Use ε = -NΔΦ/Δt to find the magnitude of the induced voltage.
- 3 Explain why spinning a coil between the poles of a magnet can generate an electric current, and describe one change that would increase the generated voltage.
