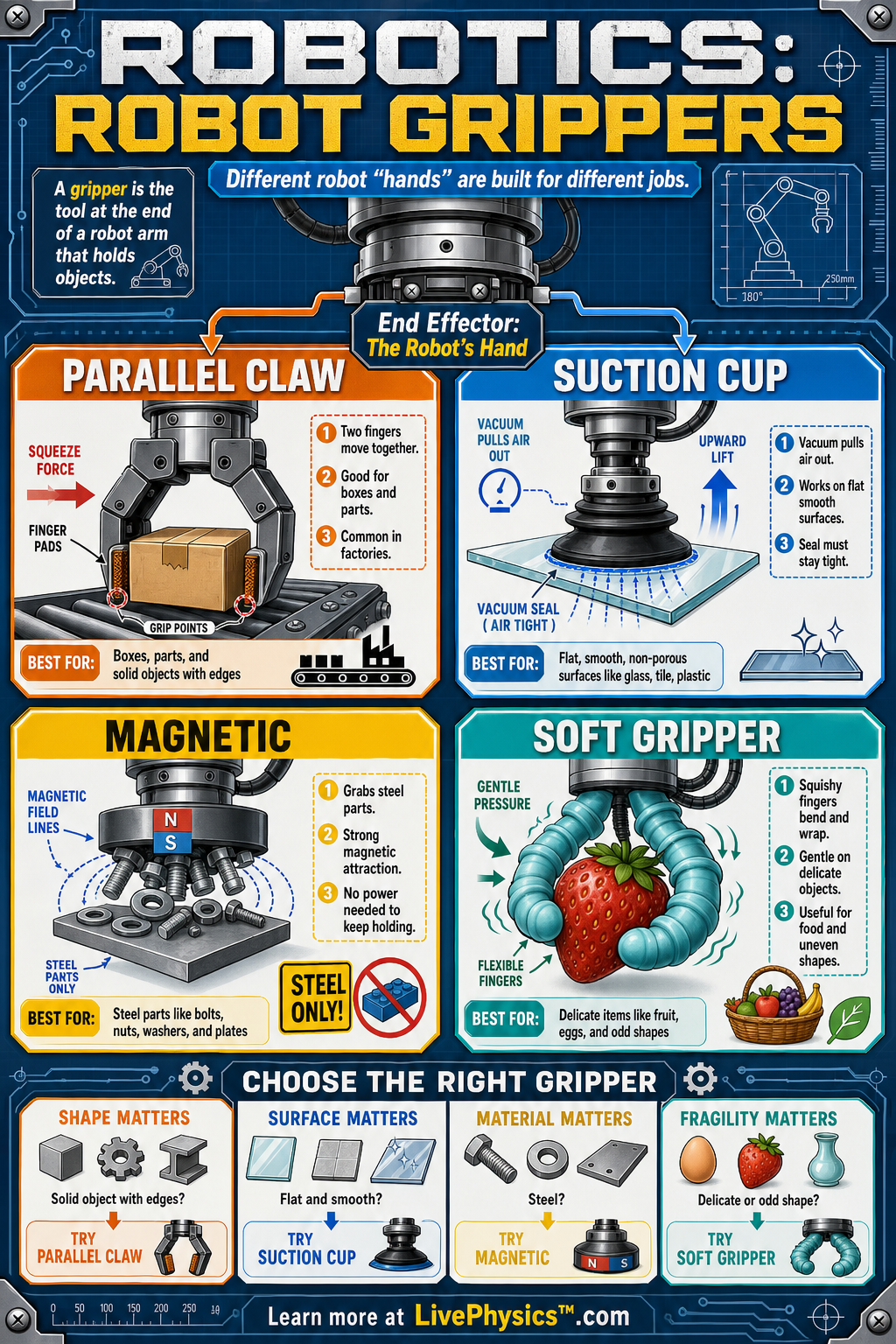

Robot grippers are end effectors, which means they are the tools at the end of a robot arm that touch and move objects. They matter because a robot cannot build, sort, pack, or explore unless it can hold things safely. Different jobs need different grippers, just like people use different tools for different tasks. A factory robot might squeeze a metal block, while a food robot might gently pick up a strawberry.
Key Facts
- End effector = the tool at the end of a robot arm that interacts with objects.
- Parallel claw grippers use two fingers that move toward each other to squeeze an object.
- Suction cup grippers use a pressure difference: F = ΔP × A, where A is cup area.
- Magnetic grippers work best on iron and steel objects, but not on plastic, wood, or aluminum.
- Soft grippers spread force over a larger area, which helps protect delicate objects.
- A safe grip needs enough holding force: grip force must be greater than the object's weight, W = mg.
Vocabulary
- End effector
- The end effector is the part attached to the end of a robot arm that performs a task, such as gripping, welding, or sensing.
- Parallel claw
- A parallel claw is a gripper with two fingers that slide toward each other to pinch and hold an object.
- Vacuum
- A vacuum is a space with lower air pressure than the surrounding air, which can make a suction cup stick to a surface.
- Magnetic gripper
- A magnetic gripper uses magnetic force to pick up objects made of ferromagnetic materials such as iron or steel.
- Soft gripper
- A soft gripper uses flexible, squishy fingers that bend around objects and reduce the chance of damage.
Common Mistakes to Avoid
- Choosing a suction cup for a rough or hole-filled surface is wrong because air leaks prevent a strong vacuum seal.
- Using a magnetic gripper on aluminum or plastic is wrong because those materials are not strongly attracted to magnets.
- Squeezing delicate objects too hard with a parallel claw is wrong because a small contact area can crush or dent the object.
- Ignoring the object's weight is wrong because the gripper must provide enough holding force to overcome gravity and motion.
Practice Questions
- 1 A robot lifts a 2 kg box with a parallel claw. Using g = 10 m/s^2, what is the box's weight in newtons?
- 2 A suction cup has an area of 0.01 m^2 and creates a pressure difference of 20,000 Pa. Using F = ΔP × A, what lifting force can it provide?
- 3 A robot must pick up a smooth glass sheet, a steel bolt, a ripe peach, and a cardboard box. Choose the best gripper type for each object and explain your choices.
