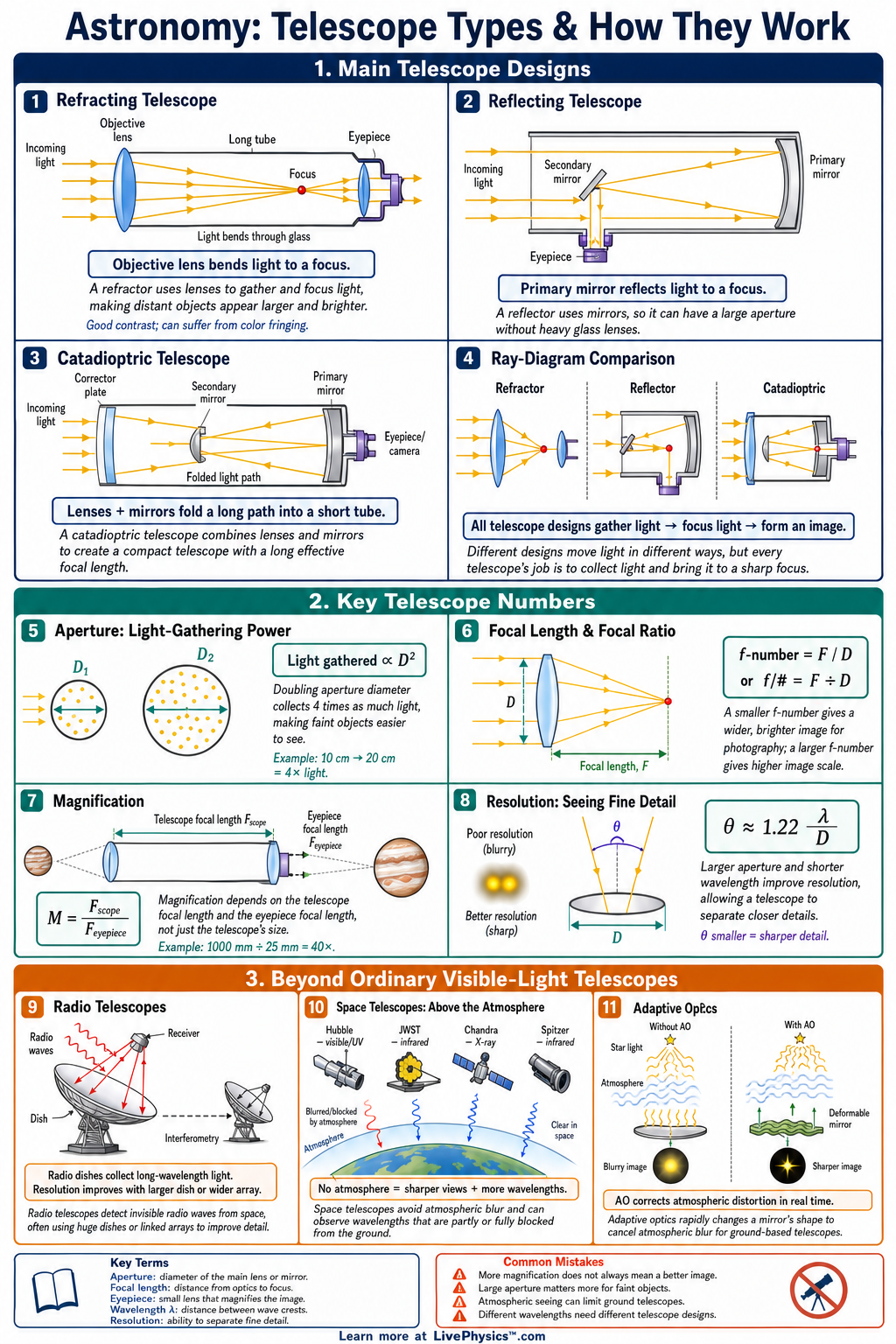

Click image to open full size
Telescope Types & How They Work Cheat Sheet
A printable reference covering refracting, reflecting, radio telescopes, aperture, focal length, magnification, and resolution for grades 6-12.
Related Labs
Related Worksheets
This cheat sheet explains the main types of telescopes and how they collect, focus, and magnify light or other signals from space. Students need these ideas to understand how astronomers study objects that are too dim, distant, or detailed for the unaided eye. It is useful for comparing optical telescopes, radio telescopes, and space telescopes in a clear reference format. The most important telescope ideas are aperture, focal length, magnification, and resolution. A larger aperture collects more light and can reveal fainter objects. Magnification depends on the focal lengths of the telescope and eyepiece, while resolution describes how well a telescope can separate close details. Different telescope designs use lenses, mirrors, or antennas to gather electromagnetic radiation.
Key Facts
- A telescope's light-gathering power is proportional to the area of its aperture, so light-gathering power is proportional to D^2.
- Magnification is calculated with M = telescope focal length / eyepiece focal length.
- A refracting telescope uses a large objective lens to bend light to a focus.
- A reflecting telescope uses a curved primary mirror to reflect light to a focus.
- Angular resolution improves when aperture increases, and the diffraction limit can be estimated by theta = 1.22 lambda / D in radians.
- Focal ratio is calculated with f-number = focal length / aperture, and smaller f-numbers usually give brighter images for photography.
- Radio telescopes use dish-shaped antennas to collect radio waves, and many dishes can work together through interferometry.
- Space telescopes avoid most atmospheric distortion and can observe wavelengths that Earth's atmosphere blocks.
Vocabulary
- Aperture
- The diameter of a telescope's main lens, mirror, or dish that collects incoming radiation.
- Focal Length
- The distance from a lens or mirror to the point where incoming parallel light is focused.
- Magnification
- The amount a telescope makes an object appear larger, calculated by dividing telescope focal length by eyepiece focal length.
- Resolution
- The ability of a telescope to distinguish two close objects or fine details as separate.
- Refractor
- A telescope that uses lenses to bend and focus light.
- Reflector
- A telescope that uses mirrors to reflect and focus light.
Common Mistakes to Avoid
- Thinking higher magnification always means a better view, because too much magnification can make an image dim, blurry, and harder to focus.
- Confusing aperture with focal length, because aperture controls light collection and possible resolution while focal length strongly affects magnification and image scale.
- Assuming all telescopes see visible light, because radio, infrared, ultraviolet, X-ray, and gamma-ray telescopes detect different parts of the electromagnetic spectrum.
- Forgetting that Earth's atmosphere affects observations, because air turbulence blurs images and the atmosphere blocks many wavelengths.
- Comparing telescopes only by size, because design, wavelength, location, detector quality, and observing conditions also affect performance.
Practice Questions
- 1 A telescope has a focal length of 1000 mm and uses a 20 mm eyepiece. What is its magnification?
- 2 Telescope A has an aperture of 10 cm and Telescope B has an aperture of 20 cm. How many times more light-gathering power does Telescope B have than Telescope A?
- 3 A telescope has a focal length of 800 mm and an aperture of 100 mm. What is its focal ratio?
- 4 Why can a space telescope sometimes produce clearer images than a similar telescope on Earth's surface?
