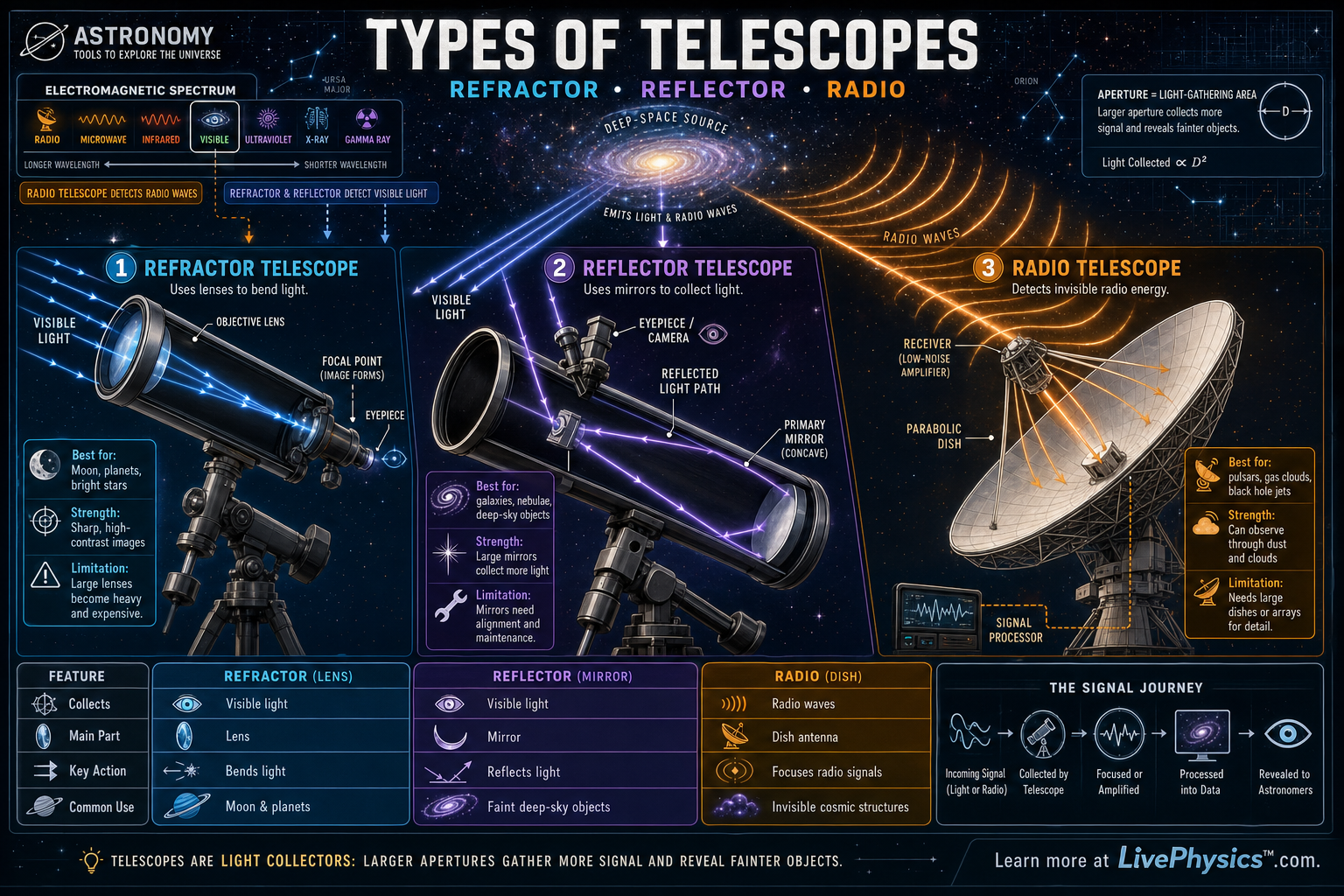

Types of Telescopes
Refractor, Reflector, and Radio
Related Tools
Related Labs
Related Worksheets
Telescopes let astronomers collect faint electromagnetic radiation from distant objects and form useful signals from it. Refractor, reflector, and radio telescopes all gather waves from space, but they use different materials and shapes to focus or detect them. Understanding these designs explains why observatories can study stars, galaxies, planets, pulsars, and cosmic gas clouds. The main goal is always to collect more radiation than the human eye can and separate fine details in the sky.
A refractor uses lenses to bend visible light to a focus, while a reflector uses a curved mirror to bring light together. A radio telescope uses a large dish or antenna to collect long-wavelength radio waves and send the signal to electronic receivers. Larger apertures collect more energy and usually improve angular resolution, which is the ability to distinguish nearby objects. Since different wavelengths reveal different physics, astronomers often combine optical and radio observations to build a fuller picture of the universe.
Key Facts
- Light-gathering power is proportional to aperture area: A = pi(D/2)^2.
- Angular resolution improves as aperture increases: theta = 1.22 lambda / D for a circular aperture.
- A refractor focuses light by refraction through lenses, so focal length depends on lens curvature and material.
- A reflector focuses light by reflection from a curved mirror, often a parabolic primary mirror.
- Radio telescopes detect long wavelengths, often from millimeters to meters, using antennas and electronic receivers.
- Photon energy depends on frequency: E = hf, so visible light photons have much higher energy than most radio photons.
Vocabulary
- Aperture
- The diameter of a telescope's main light-collecting lens, mirror, or dish.
- Refractor
- A telescope that uses lenses to bend and focus visible light.
- Reflector
- A telescope that uses a curved mirror to reflect and focus visible light.
- Radio telescope
- A telescope that uses an antenna or dish to collect radio waves from space.
- Angular resolution
- The smallest angular separation a telescope can distinguish between two objects.
Common Mistakes to Avoid
- Confusing magnification with power is wrong because a telescope's most important abilities are light collection and resolution, not just making an image look larger.
- Assuming all telescopes detect visible light is wrong because radio telescopes observe long-wavelength radiation that human eyes cannot see.
- Thinking a bigger telescope always gives a brighter image at any magnification is incomplete because brightness also depends on detector sensitivity, exposure time, wavelength, and observing conditions.
- Ignoring wavelength when comparing resolution is wrong because theta = 1.22 lambda / D shows that longer wavelengths need much larger apertures for the same sharpness.
Practice Questions
- 1 A refractor has an aperture diameter of 0.10 m and a reflector has an aperture diameter of 0.40 m. How many times greater is the light-collecting area of the reflector?
- 2 Use theta = 1.22 lambda / D to estimate the angular resolution in radians of a 2.0 m optical telescope observing light with wavelength 500 nm.
- 3 A visible-light reflector and a radio telescope both observe the same galaxy. Explain why the two instruments might reveal different structures or features in that galaxy.
