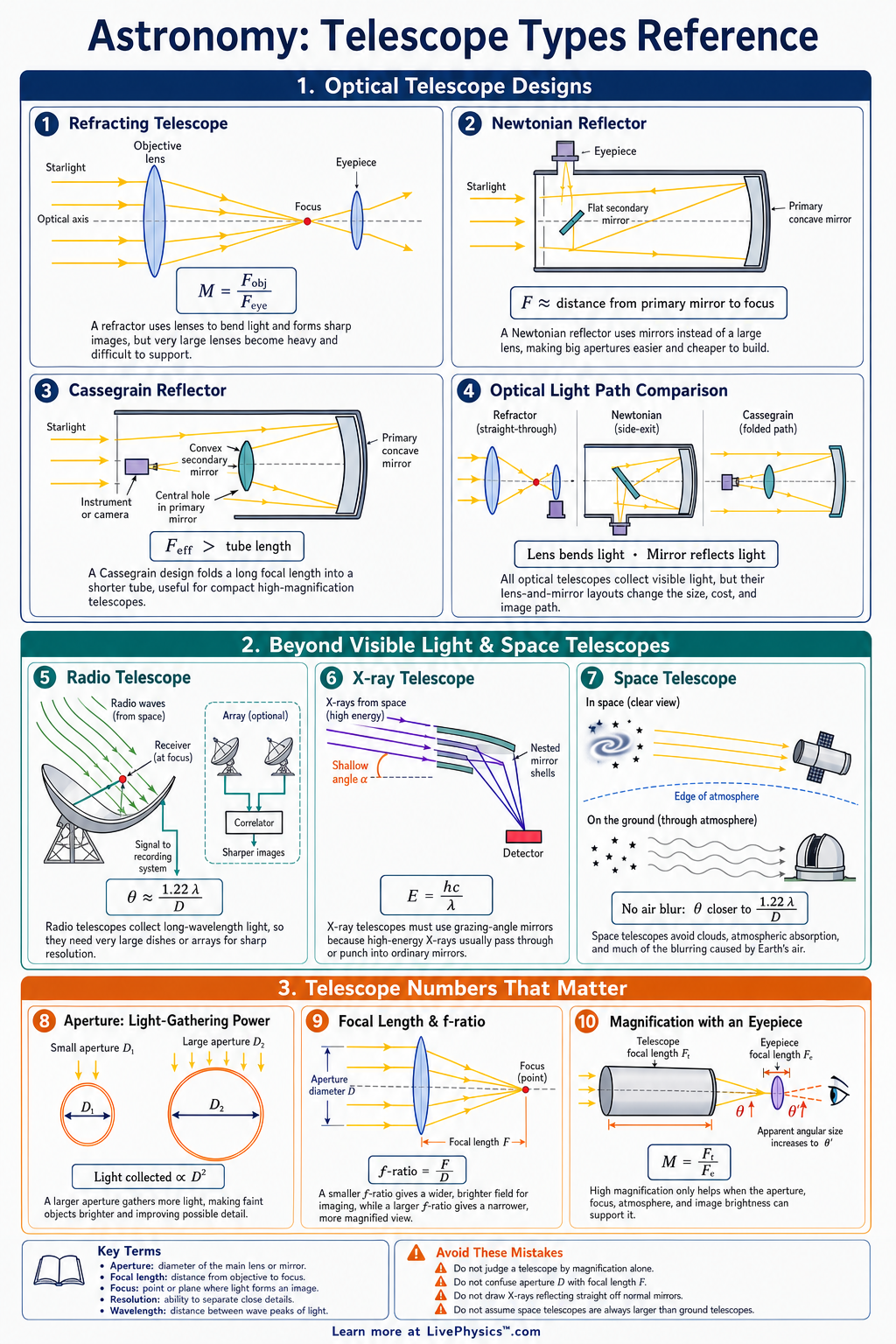

Telescope Types Reference Cheat Sheet
A printable reference covering refractors, reflectors, catadioptric telescopes, aperture, focal length, magnification, and resolving power for grades 7-12.
Related Tools
Related Labs
Related Worksheets
This telescope types reference helps students compare the main designs used in astronomy: refracting, reflecting, and catadioptric telescopes. It explains how each type gathers and focuses light, which is the central job of any telescope. Students need this cheat sheet to connect telescope structure with image quality, magnification, and common observing uses. The most important ideas are aperture, focal length, focal ratio, magnification, and resolution. A larger aperture collects more light and usually gives sharper detail. Magnification depends on the telescope focal length divided by the eyepiece focal length. Different telescope designs trade off cost, size, image orientation, maintenance, and performance.
Key Facts
- A refracting telescope uses a front objective lens to bend light and bring it to a focus.
- A reflecting telescope uses a curved primary mirror to collect light and reflect it toward a focus.
- A catadioptric telescope uses both lenses and mirrors, often in a compact folded light path.
- Light-gathering power is proportional to aperture area, so area = pi x (D/2)^2, where D is aperture diameter.
- Magnification = telescope focal length / eyepiece focal length.
- Focal ratio = focal length / aperture, often written as f-number such as f/5 or f/10.
- Angular resolution improves as aperture increases, so larger telescopes can separate closer objects in the sky.
- A low f-number gives a wider, brighter field for imaging, while a high f-number is often useful for planets and high magnification.
Vocabulary
- Aperture
- The diameter of a telescope's main light-collecting lens or mirror.
- Focal length
- The distance from the main lens or mirror to the point where incoming light is brought to focus.
- Magnification
- The amount a telescope enlarges an object's apparent size, found by dividing telescope focal length by eyepiece focal length.
- Refractor
- A telescope that uses lenses to bend and focus light.
- Reflector
- A telescope that uses mirrors to collect and focus light.
- Catadioptric telescope
- A telescope design that combines lenses and mirrors to create a compact optical system.
Common Mistakes to Avoid
- Using magnification as the only measure of telescope quality is wrong because aperture and optical quality usually matter more for brightness and detail.
- Confusing aperture with focal length is wrong because aperture controls light collection, while focal length strongly affects magnification and field of view.
- Assuming every telescope image has the same orientation is wrong because different optical designs and diagonals can flip, invert, or rotate the view.
- Choosing the highest-power eyepiece for every target is wrong because too much magnification makes images dimmer, blurrier, and harder to track.
- Thinking reflectors do not need maintenance is wrong because many reflecting telescopes require collimation to keep mirrors aligned.
Practice Questions
- 1 A telescope has a focal length of 1000 mm and uses a 25 mm eyepiece. What is the magnification?
- 2 A telescope has an aperture of 200 mm and a focal length of 1000 mm. What is its focal ratio?
- 3 Telescope A has a 70 mm aperture and Telescope B has a 140 mm aperture. How many times greater is Telescope B's light-collecting area?
- 4 Explain why an astronomer might choose a reflector instead of a refractor for observing faint deep-sky objects.
