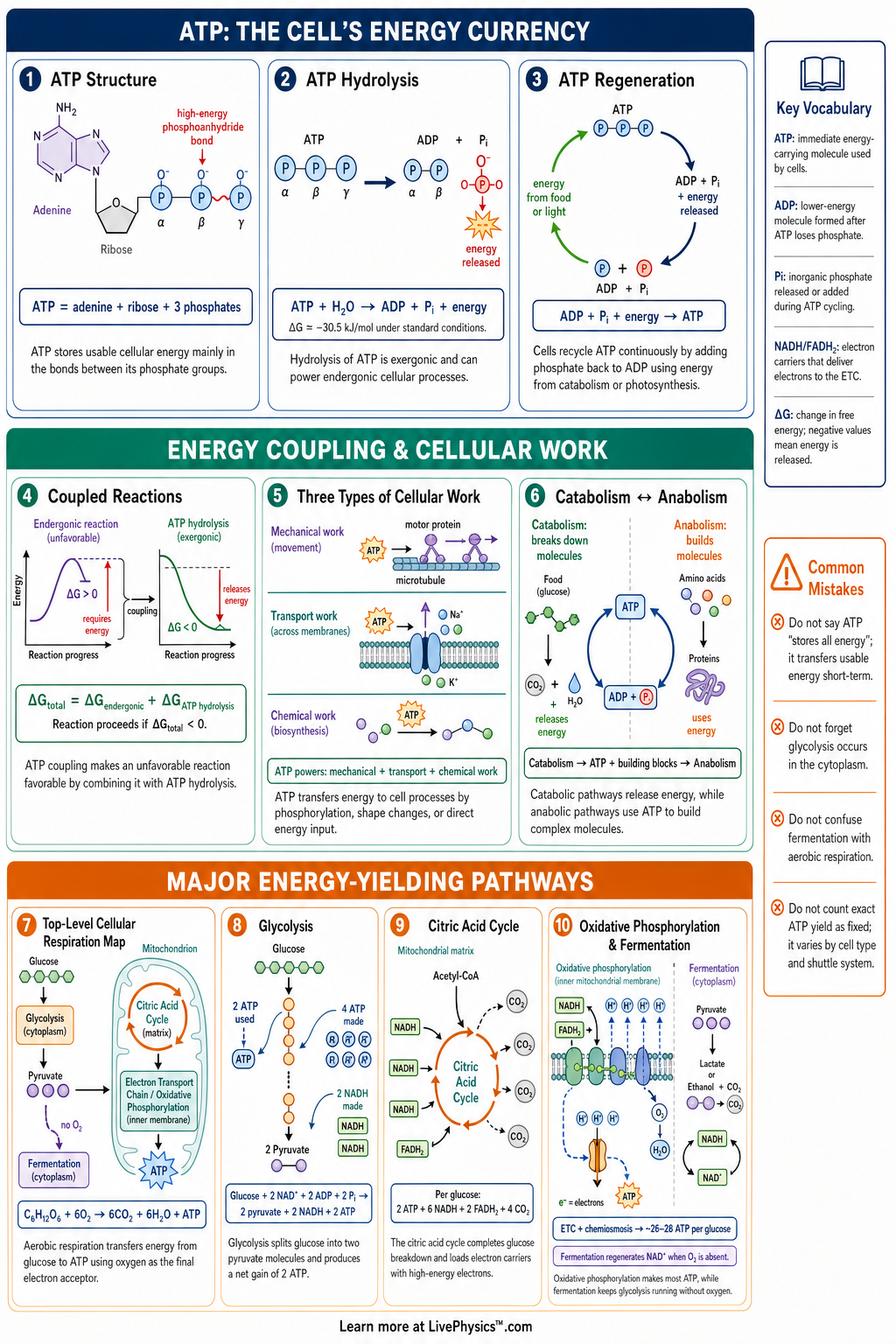

Bioenergetics & ATP Cheat Sheet
A printable reference covering ATP structure, energy coupling, cellular respiration, photosynthesis, redox reactions, and chemiosmosis for grades 10-12.
Related Labs
Related Worksheets
Related Infographics
Bioenergetics is the study of how living cells capture, transfer, and use energy. This cheat sheet helps students connect ATP, cellular respiration, photosynthesis, and redox reactions in one organized reference. These ideas are central to understanding how organisms power growth, movement, active transport, and biosynthesis. Students need these concepts for biology units on cells, metabolism, ecosystems, and molecular biology. ATP is the main energy currency of cells because breaking its terminal phosphate bond releases usable energy. Cellular respiration transfers energy from glucose to ATP, while photosynthesis stores light energy in glucose. Redox reactions move electrons through carriers such as NADH, FADH2, NADPH, and electron transport chains. Chemiosmosis uses a proton gradient to drive ATP synthase and produce ATP.
Key Facts
- ATP stands for adenosine triphosphate and is made of adenine, ribose sugar, and three phosphate groups.
- ATP hydrolysis releases energy by the reaction ATP + H2O -> ADP + Pi + energy.
- Energy coupling uses energy released from ATP hydrolysis to power endergonic cell processes such as active transport and protein synthesis.
- Cellular respiration is summarized by C6H12O6 + 6 O2 -> 6 CO2 + 6 H2O + ATP.
- Photosynthesis is summarized by 6 CO2 + 6 H2O + light energy -> C6H12O6 + 6 O2.
- Oxidation is loss of electrons, reduction is gain of electrons, and the mnemonic OIL RIG helps remember this rule.
- NAD+ and FAD carry high-energy electrons in respiration, while NADP+ carries high-energy electrons in photosynthesis.
- Chemiosmosis produces ATP when H+ ions move down their concentration gradient through ATP synthase.
Vocabulary
- ATP
- ATP is a small energy-carrying molecule that cells use to power many reactions and processes.
- Bioenergetics
- Bioenergetics is the study of energy flow and energy transformations in living organisms.
- Energy coupling
- Energy coupling is the use of energy from an exergonic reaction, often ATP hydrolysis, to drive an endergonic reaction.
- Redox reaction
- A redox reaction is a chemical reaction in which electrons are transferred from one substance to another.
- Electron transport chain
- An electron transport chain is a series of membrane proteins that transfer electrons and help create a proton gradient.
- Chemiosmosis
- Chemiosmosis is the movement of H+ ions through ATP synthase to make ATP from ADP and inorganic phosphate.
Common Mistakes to Avoid
- Saying ATP stores unlimited energy is wrong because ATP stores a small, quickly usable amount of energy and must be constantly regenerated.
- Confusing ADP with ATP is wrong because ATP has three phosphate groups and more usable energy, while ADP has two phosphate groups.
- Thinking photosynthesis and cellular respiration are the same process is wrong because photosynthesis stores energy in glucose, while respiration releases energy from glucose to make ATP.
- Forgetting that oxygen is the final electron acceptor in aerobic respiration is wrong because without oxygen the electron transport chain backs up and ATP production drops sharply.
- Saying the phosphate bond itself contains all the released energy is wrong because energy release depends on the overall products being more stable than the reactants.
Practice Questions
- 1 Write the ATP hydrolysis reaction and name the two main products formed when ATP loses one phosphate group.
- 2 If one glucose molecule produces about 30 ATP during cellular respiration, how many ATP are produced from 6 glucose molecules?
- 3 A cell uses 45 ATP for active transport and then regenerates 18 ATP. What is the cell's net ATP change?
- 4 Explain why a proton gradient across a membrane can be used as a source of energy for ATP production.
