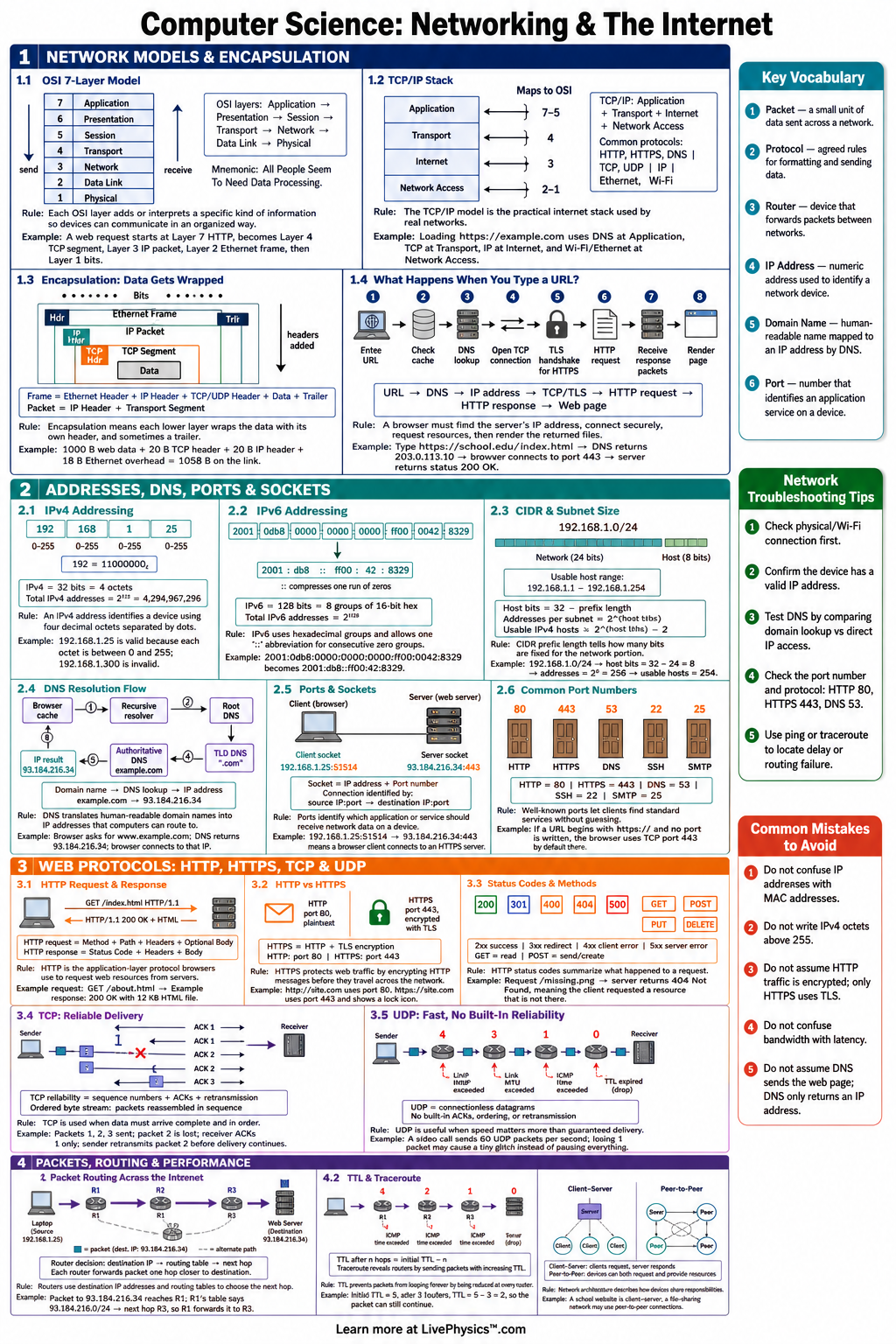

Networking & The Internet Cheat Sheet
A printable reference covering network models, encapsulation, IP addressing, DNS, routing, latency, bandwidth, and internet protocols for grades 8-12.
Related Tools
Related Labs
Related Worksheets
Related Infographics
Networking and the Internet explain how computers exchange data across local networks and around the world. This cheat sheet helps students connect big ideas like protocols, packets, addresses, and routing into one clear reference. It is useful for reviewing how messages move through network layers and how common internet services work. Students need these concepts to understand cybersecurity, web apps, cloud computing, and everyday online communication. The most important ideas are that data is split into packets, wrapped with headers during encapsulation, sent through routers, and reassembled at the destination. Network models such as TCP/IP and OSI organize communication into layers so each layer has a specific job. Key formulas include bandwidth = data transferred / time, latency = propagation delay + transmission delay + processing delay + queueing delay, and total bits = bytes x 8. Core protocols include IP for addressing and routing, TCP for reliable delivery, UDP for faster connectionless delivery, DNS for name lookup, and HTTP or HTTPS for web communication.
Key Facts
- Bandwidth measures data rate and is calculated as bandwidth = data transferred / time.
- To convert bytes to bits, use bits = bytes x 8 because 1 byte equals 8 bits.
- Transmission delay is calculated as transmission delay = packet size in bits / link bandwidth in bits per second.
- Propagation delay is calculated as propagation delay = distance / signal speed.
- Total latency can be estimated with latency = propagation delay + transmission delay + processing delay + queueing delay.
- In encapsulation, each network layer adds its own header, so application data becomes segments, packets, frames, and then bits.
- TCP provides reliable ordered delivery using acknowledgments, sequence numbers, and retransmission, while UDP sends data without guaranteeing delivery or order.
- DNS translates a domain name such as example.com into an IP address that computers use to route packets.
Vocabulary
- Packet
- A packet is a small unit of data sent across a network with addressing and control information attached.
- Protocol
- A protocol is a shared set of rules that devices follow to communicate correctly.
- IP Address
- An IP address is a numeric label that identifies a device or destination on a network.
- Router
- A router is a network device that forwards packets between networks based on destination addresses.
- Encapsulation
- Encapsulation is the process of wrapping data with headers and trailers as it moves down network layers.
- DNS
- DNS is the Domain Name System that maps human-readable domain names to IP addresses.
Common Mistakes to Avoid
- Confusing bandwidth with latency is wrong because bandwidth measures how much data can be sent per second, while latency measures delay.
- Forgetting to convert bytes to bits gives an answer that is 8 times too small because network speeds are usually measured in bits per second.
- Thinking IP guarantees delivery is wrong because IP mainly handles addressing and routing, while reliability is handled by protocols such as TCP.
- Assuming DNS sends web pages is incorrect because DNS only resolves names to IP addresses before protocols such as HTTP or HTTPS request content.
- Treating TCP and UDP as interchangeable is a mistake because TCP favors reliability and order, while UDP favors lower overhead and speed.
Practice Questions
- 1 A 24 megabit file is downloaded in 6 seconds. What is the average bandwidth in megabits per second?
- 2 A packet is 12,000 bits and the link bandwidth is 3,000,000 bits per second. What is the transmission delay in seconds?
- 3 A signal travels 2,000,000 meters through fiber at 200,000,000 meters per second. What is the propagation delay?
- 4 A video call sometimes drops a frame but keeps going smoothly. Explain why UDP might be chosen instead of TCP for this type of application.
