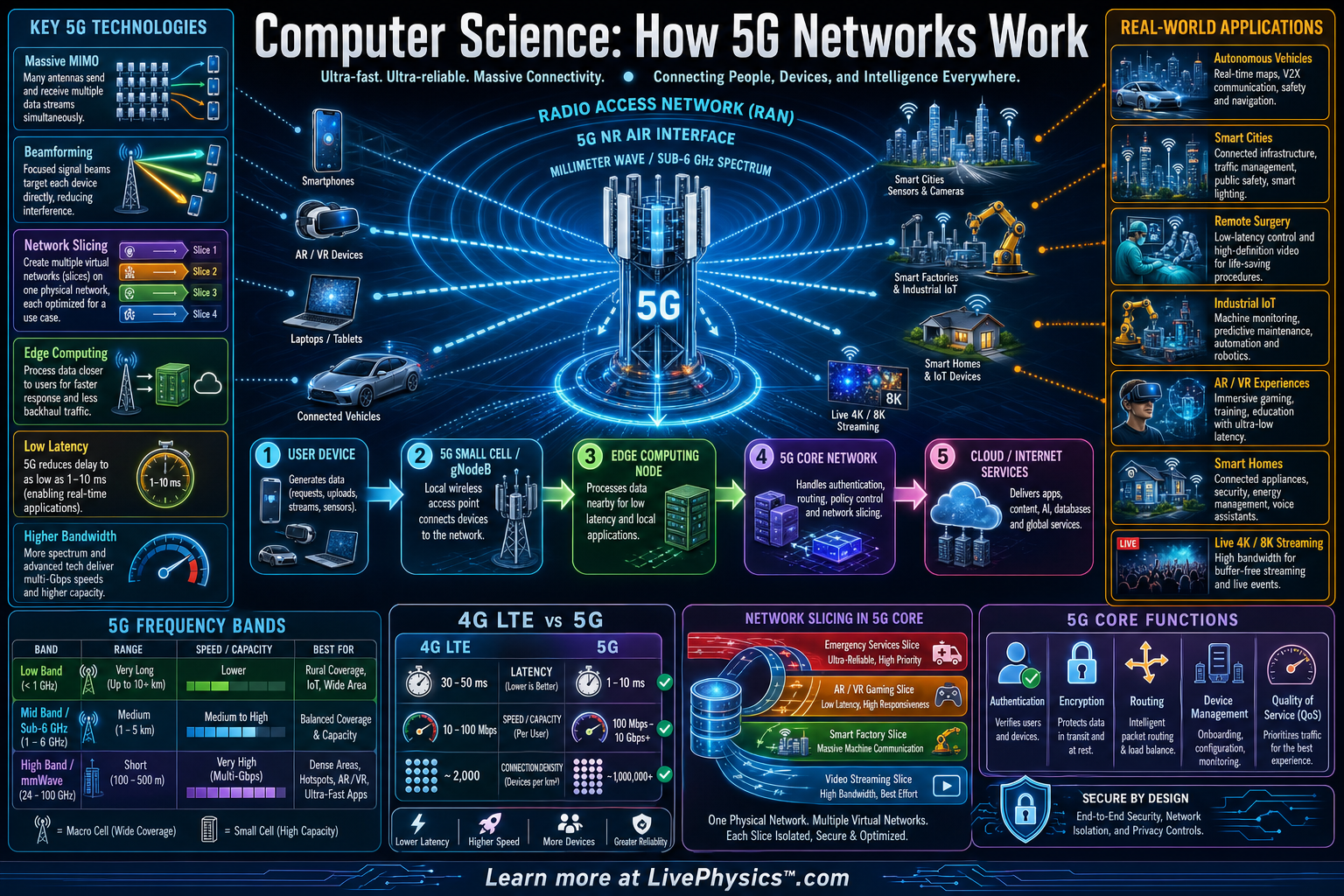

How 5G Networks Work
5G Networks
Related Tools
Related Labs
Related Worksheets
5G is the fifth generation of cellular network technology, designed to move more data with lower delay and support many more connected devices than earlier networks. It matters because phones, vehicles, factories, hospitals, and sensors increasingly depend on fast wireless communication. Instead of being only a faster version of 4G, 5G changes how radio signals, antennas, software, and cloud computing work together. A 5G network is built to serve very different needs, from streaming video to controlling machines in real time.
A 5G connection usually travels from a device to a nearby cell tower or small cell, then through a radio access network into the core network and the internet. Technologies such as millimeter waves, massive MIMO, beamforming, edge computing, and network slicing help the system increase speed, capacity, and reliability. Higher-frequency signals can carry more data, but they travel shorter distances and are blocked more easily, so 5G often uses many small cells placed close to users. The network also uses software-defined control so it can allocate resources dynamically for phones, autonomous vehicles, smart factories, and Internet of Things devices.
Key Facts
- Data rate is often measured in bits per second: 1 Gbps = 1,000,000,000 bits/s.
- Latency is the time delay between sending and receiving data: latency = response time - send time.
- 5G uses low-band, mid-band, and high-band radio frequencies to balance range, speed, and capacity.
- Frequency and wavelength are related by c = fλ, where c is the speed of light, f is frequency, and λ is wavelength.
- Massive MIMO uses many antennas to send and receive multiple data streams at the same time.
- Edge computing reduces delay by processing data near the user instead of sending everything to a distant cloud server.
Vocabulary
- 5G
- 5G is the fifth generation of mobile network technology that supports high data rates, low latency, and large numbers of connected devices.
- Small cell
- A small cell is a low-power cellular base station that covers a small area and helps increase 5G capacity in dense locations.
- Beamforming
- Beamforming is an antenna technique that directs a radio signal toward a specific device instead of spreading it equally in all directions.
- Massive MIMO
- Massive MIMO is a system that uses many antennas to transmit and receive several wireless data streams at once.
- Network slicing
- Network slicing is the practice of dividing one physical 5G network into multiple virtual networks optimized for different applications.
Common Mistakes to Avoid
- Thinking 5G is only about faster downloads is wrong because 5G also improves latency, device density, reliability, and flexible network control.
- Assuming higher frequency always means a better signal is wrong because high-frequency millimeter waves carry lots of data but have shorter range and weaker penetration through walls.
- Confusing bandwidth with latency is wrong because bandwidth describes how much data can be carried per second, while latency describes how long a message takes to arrive.
- Ignoring the role of small cells is wrong because dense 5G coverage often depends on many nearby antennas, not just a few tall towers.
Practice Questions
- 1 A 5G link transfers 2 gigabits of data in 4 seconds. What is the average data rate in gigabits per second?
- 2 A radio signal has frequency 30 GHz. Using c = 3.0 × 10^8 m/s and c = fλ, calculate its wavelength in meters.
- 3 Explain why an autonomous vehicle might benefit more from low latency and edge computing than from high download speed alone.
