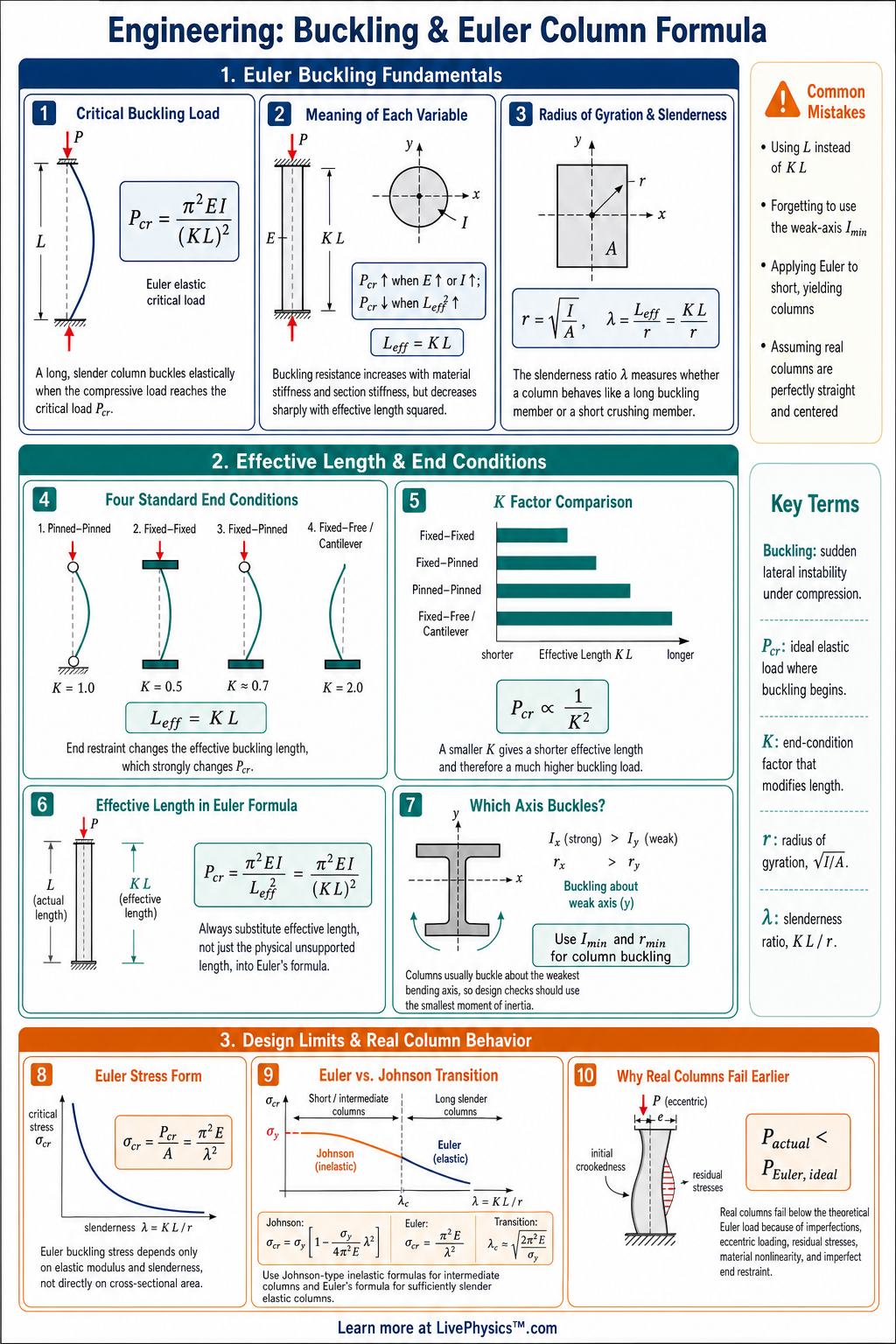

Buckling is a stability failure that can occur in slender columns under compressive load, often before the material reaches its yield stress. This cheat sheet helps engineering students connect column geometry, boundary conditions, stiffness, and critical load. It is especially useful for mechanics of materials, structural analysis, and machine design problems involving compression members.
The core idea is that an ideal straight elastic column buckles at the Euler critical load, Pcr = pi^2 E I / (K L)^2. The effective length factor K accounts for end restraint, while the slenderness ratio KL/r helps determine whether Euler buckling is appropriate. Design work also requires comparing buckling stress, material yield stress, safety factors, and real-world imperfections.
Key Facts
- The Euler critical buckling load for an ideal elastic column is Pcr = pi^2 E I / (K L)^2.
- The effective length is Le = K L, where K depends on the column end conditions and rotational restraint.
- Common ideal effective length factors are K = 0.5 for fixed-fixed, K = 0.7 for fixed-pinned, K = 1.0 for pinned-pinned, and K = 2.0 for fixed-free.
- The radius of gyration is r = sqrt(I/A), where I is the least area moment of inertia and A is the cross-sectional area.
- The slenderness ratio is KL/r, and larger values indicate a greater tendency to fail by elastic buckling.
- The Euler buckling stress is sigma_cr = Pcr/A = pi^2 E / (KL/r)^2 for an ideal elastic column.
- Euler buckling is most appropriate for long, slender columns that remain elastic and have stresses below the proportional limit.
- For design with a safety factor, the allowable compressive load is P_allow = Pcr / FS when Euler buckling governs.
Vocabulary
- Buckling
- Buckling is a sudden lateral deflection of a compressed member caused by instability rather than direct crushing.
- Euler Critical Load
- Euler critical load is the theoretical axial compressive load at which an ideal slender elastic column becomes unstable.
- Effective Length Factor
- The effective length factor K adjusts the actual column length to represent the restraint provided by its end conditions.
- Slenderness Ratio
- Slenderness ratio KL/r is a nondimensional measure of how likely a column is to buckle instead of crush.
- Radius of Gyration
- Radius of gyration r = sqrt(I/A) describes how efficiently a cross-sectional area is distributed about a bending axis.
- Least Moment of Inertia
- The least moment of inertia is the smaller bending stiffness axis of a cross section and usually controls column buckling.
Common Mistakes to Avoid
- Using the actual length L instead of the effective length KL is wrong because end conditions can greatly increase or decrease the buckling load.
- Using the larger moment of inertia is wrong because a column buckles about its weakest bending axis, so the least I usually controls.
- Applying Euler's formula to a short stocky column is wrong because yielding or inelastic crushing may occur before elastic buckling.
- Forgetting consistent units is wrong because E, I, L, area, stress, and load must use one compatible unit system throughout the calculation.
- Treating fixed, pinned, and free ends as interchangeable is wrong because rotational and translational restraints strongly change the effective length factor K.
Practice Questions
- 1 A pinned-pinned steel column has E = 200 GPa, I = 8.0 x 10^-6 m^4, and L = 3.0 m. Find the Euler critical load using K = 1.0.
- 2 A fixed-free aluminum column has E = 70 GPa, I = 2.5 x 10^-6 m^4, and L = 2.0 m. Calculate Pcr using K = 2.0.
- 3 A column has A = 0.004 m^2 and I = 1.6 x 10^-6 m^4. Find r and the slenderness ratio KL/r for L = 2.5 m and K = 0.7.
- 4 Explain why a column with fixed-fixed ends can carry more compressive load before buckling than the same column with pinned-pinned ends.
Understanding Buckling & Euler Column Formula
Buckling is driven by a feedback effect. A perfectly centered compressive force would act along the column axis, but real members are never perfect. They have small initial curves, residual stresses from manufacturing, uneven material, or slight load eccentricity.
Once a member bends a little, the compressive force acts through an offset distance. This creates an additional bending moment. More bending increases that offset, which increases the moment further.
Near the critical condition, a very small increase in load can produce a large sideways deflection. This is why a column can appear safe at one load, then suddenly become unstable.
The bending direction matters greatly. A column usually buckles about its weaker axis, meaning the direction with less resistance to bending. For a rectangular bar standing upright, turning it ninety degrees can greatly change its stability even though its area stays the same.
Structural steel shapes behave similarly. Their strong and weak axes have different second moments of area. Engineers must check both possible directions and use the smaller buckling capacity.
Bracing can change the result by preventing sideways movement at one or more points. A long building column may therefore act like several shorter column segments if floor beams or cross braces provide reliable lateral support.
End conditions are often less certain than textbook diagrams suggest. A connection called fixed must actually resist rotation to provide strong restraint. Bolted plates, welds, base plates, and surrounding framing each have some flexibility.
If a support rotates under load, the member behaves more like a less restrained column and its capacity falls. A cantilever flagpole is close to fixed at its base and free at its top, while a simple bar between two loose pins is closer to pinned at both ends.
Real structures lie between these ideal cases. Good engineering judgment means avoiding overly optimistic assumptions about restraint.
Euler theory describes elastic instability, not every compression failure. Stocky columns can reach yielding or crushing before they buckle in the Euler mode. Columns of medium slenderness often need empirical or code based formulas that account for both yielding and instability.
Local buckling is another concern. A thin steel tube wall, flange, or web may wrinkle before the whole member bends sideways. In class problems, first identify the unsupported length, the likely weak axis, the actual load path, and the material range.
Then check units carefully. Elastic modulus uses force per area, second moment uses length to the fourth power, and a small error in length has a large effect because buckling capacity changes with the square of effective length. In real design, safety factors and code limits account for uncertainty, imperfections, and changing loads.
