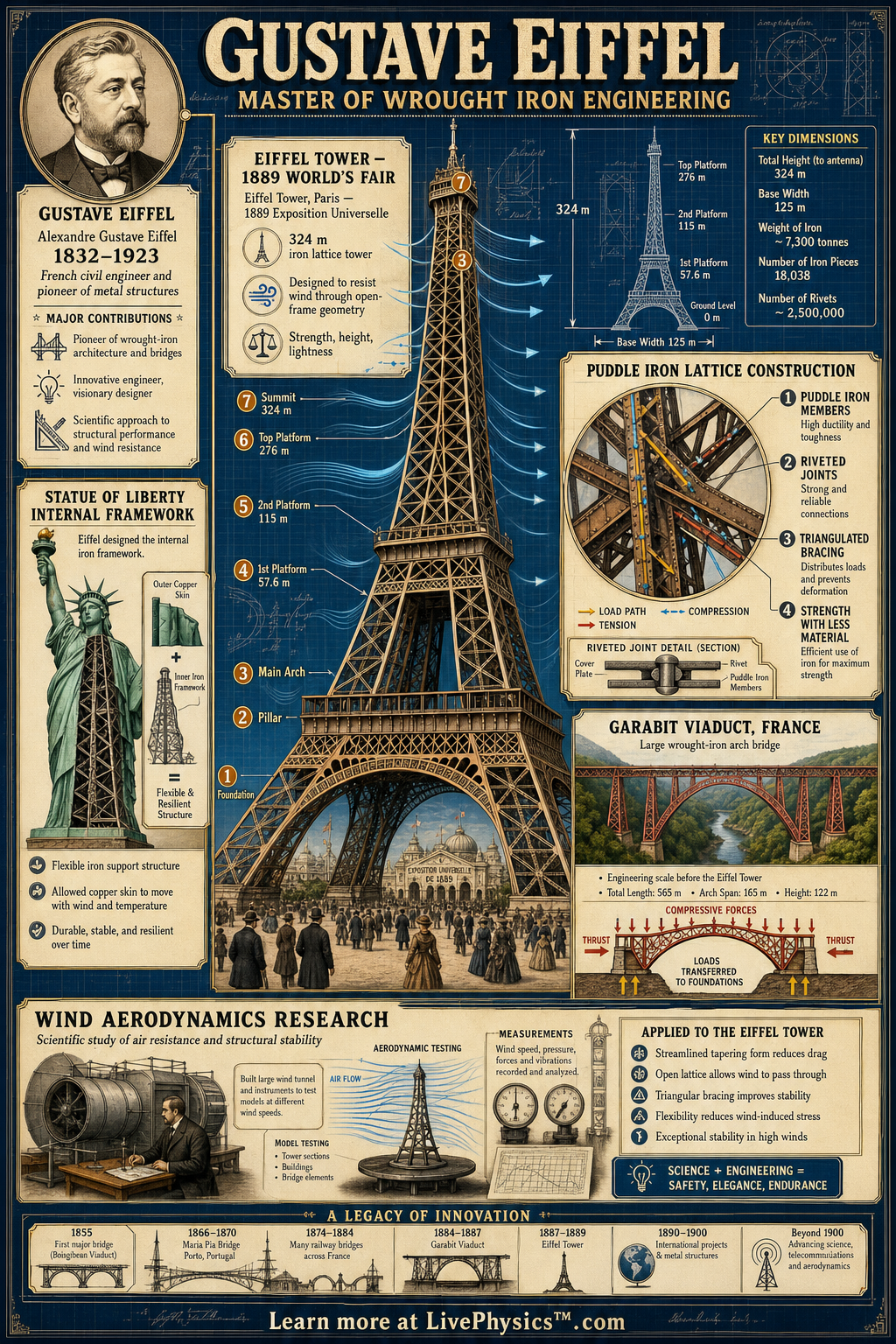

Gustave Eiffel: Master of Wrought Iron Engineering
The Eiffel Tower, the Statue of Liberty frame, and the science of wind
Related Tools
Related Labs
Related Worksheets
Gustave Eiffel was a French engineer whose work showed how metal structures could become taller, lighter, and more daring than traditional stone buildings. He is best known for the Eiffel Tower, built for the 1889 World's Fair in Paris, but his engineering influence also appears in bridges, viaducts, and the internal frame of the Statue of Liberty. His projects mattered because they turned careful calculation, factory fabrication, and riveted assembly into a new language of modern engineering. Eiffel helped prove that open lattice structures could be both strong and elegant.
Key Facts
- Gustave Eiffel lived from 1832 to 1923 and became famous for large metal structures.
- The Eiffel Tower was completed in 1889 and is about 300 m tall without later antennas.
- The tower used puddle iron, a refined form of wrought iron with good tensile strength for its time.
- Stress = Force / Area, written as σ = F / A, helps engineers check whether a member can carry a load.
- For wind pressure, a simple model is p = 1/2 ρv^2, where ρ is air density and v is wind speed.
- The Statue of Liberty uses an internal metal framework designed by Eiffel's company to support the copper skin while allowing thermal expansion.
Vocabulary
- Wrought iron
- Wrought iron is a low-carbon iron material that can be shaped and riveted, making it useful for 19th century bridges and towers.
- Lattice structure
- A lattice structure is a framework made from many connected bars arranged in repeating triangles or patterns to carry loads efficiently.
- Rivet
- A rivet is a permanent metal fastener that is inserted through holes and hammered or pressed into shape to join structural pieces.
- Truss
- A truss is a structure made of connected members, often triangles, that spreads forces through tension and compression.
- Wind load
- Wind load is the force on a structure caused by moving air pushing against its surfaces.
Common Mistakes to Avoid
- Calling the Eiffel Tower a solid iron tower is wrong because most of its volume is open space. Its strength comes from a riveted lattice that reduces weight while guiding forces to the ground.
- Ignoring wind forces in tall structures is wrong because wind can create large sideways loads and bending moments. Eiffel shaped and braced the tower to handle wind as a main design requirement.
- Assuming all metal members carry the same force is wrong because load depends on position, geometry, and connection paths. Engineers analyze each member for tension, compression, and buckling risk.
- Confusing wrought iron with modern structural steel is wrong because they have different composition, strength, and manufacturing methods. Eiffel's designs used the best available iron technology of the late 1800s.
Practice Questions
- 1 A vertical wrought iron member in a lattice carries a force of 120000 N and has a cross-sectional area of 0.006 m^2. Calculate the stress using σ = F / A.
- 2 Use p = 1/2 ρv^2 with ρ = 1.2 kg/m^3 and v = 30 m/s to estimate the wind pressure on a flat surface in pascals.
- 3 Explain why an open lattice tower can be more efficient than a solid tower of the same height when resisting gravity and wind loads.
