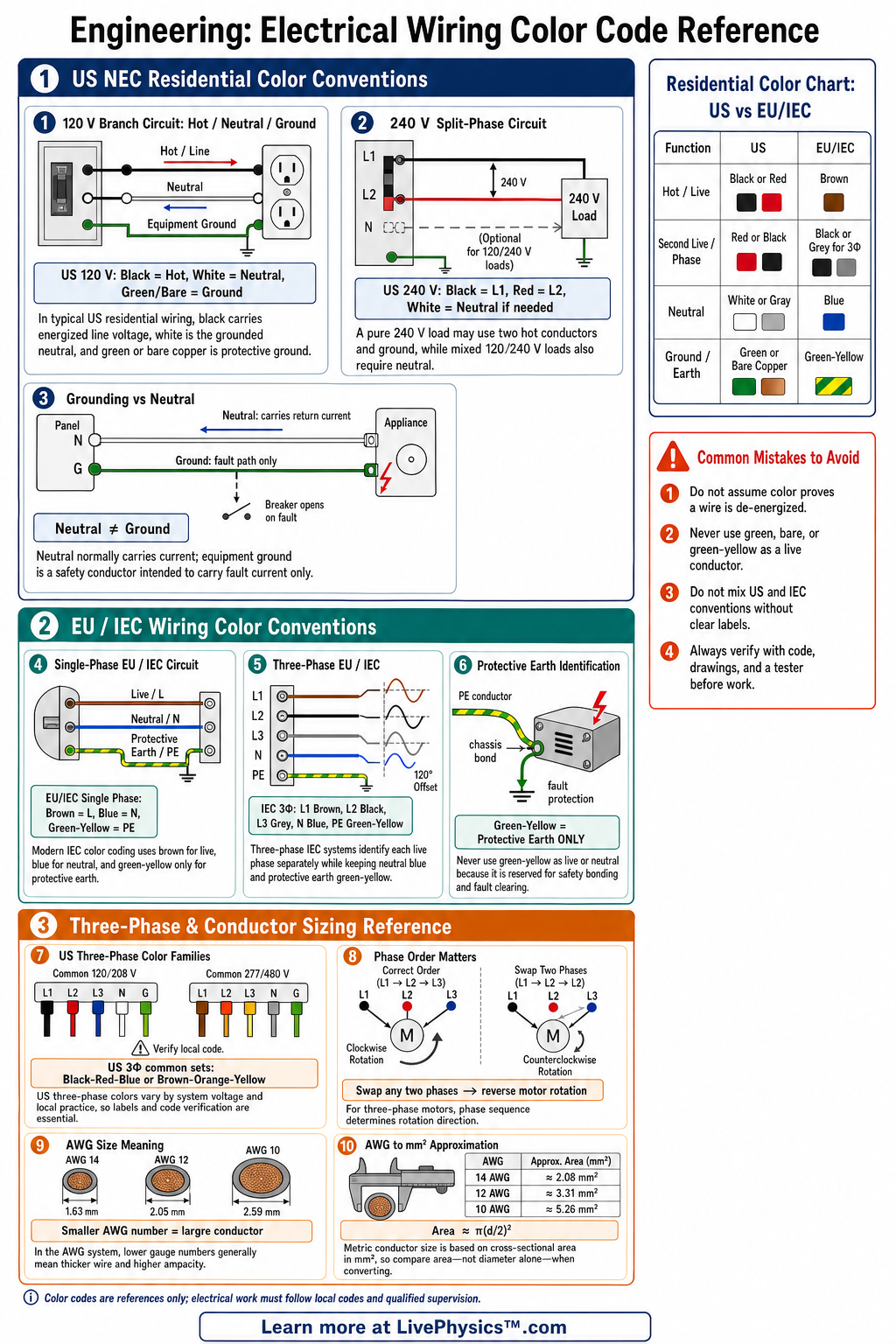

Electrical wiring color codes help engineers, electricians, and technicians identify conductors quickly and reduce the risk of dangerous mistakes. This cheat sheet summarizes common color conventions used for power wiring, control wiring, grounding, and DC circuits. Students need it because wire color is a key part of reading diagrams, building circuits, and troubleshooting safely.
Color codes are helpful references, but they must always be checked against the local standard and the actual circuit.
Key Facts
- In many U.S. AC systems, black or red usually indicates a hot or live conductor, white usually indicates neutral, and green or bare copper indicates equipment ground.
- In many IEC systems, brown usually indicates line, blue indicates neutral, and green-yellow indicates protective earth.
- A hot or line conductor carries voltage from the power source to the load and can cause electric shock if touched while energized.
- A neutral conductor completes the normal current path back to the source and is usually bonded to ground only at the service point.
- A grounding conductor is a safety path for fault current and should not normally carry current during regular operation.
- For DC circuits, red commonly marks positive voltage and black commonly marks negative or common, but equipment documentation must be checked.
- Wire color alone is never proof that a conductor is safe, so the circuit must be de-energized and tested with a proper meter before work begins.
- A multimeter set to AC volts or DC volts can verify conductor function by measuring voltage between hot, neutral, ground, positive, and negative points.
Vocabulary
- Hot conductor
- A conductor that carries voltage from the power source to a load in an AC circuit.
- Neutral conductor
- A conductor that completes the return path for normal current in many AC power systems.
- Ground conductor
- A safety conductor that provides a low-resistance path for fault current to help trip protective devices.
- Protective earth
- The IEC term for the safety grounding conductor, commonly identified by green-yellow insulation.
- Phase
- One alternating voltage waveform in an AC power system, often labeled L1, L2, and L3 in three-phase circuits.
- Continuity test
- A meter test that checks whether an electrical path is complete and has very low resistance.
Common Mistakes to Avoid
- Assuming every black wire is hot is wrong because color codes can vary by country, building age, and previous repairs. Always confirm with a diagram and a meter.
- Using a ground wire as a neutral is wrong because the grounding conductor is for safety faults, not normal current. This can energize metal parts and create shock hazards.
- Trusting wire color without turning off power is wrong because mislabeled or damaged wiring may still be energized. De-energize the circuit and verify zero voltage before handling conductors.
- Mixing IEC and U.S. color codes is wrong because the same color can mean different things in different systems. Identify which standard applies before connecting wires.
- Ignoring terminal labels is wrong because equipment terminals define the required connection even when wire colors seem familiar. Match both the label and the wiring diagram.
Practice Questions
- 1 In a common U.S. 120 V AC branch circuit, a meter reads about 120 V between a black wire and a white wire. Which conductor is most likely hot and which is most likely neutral?
- 2 In an IEC-style AC circuit, a brown wire, a blue wire, and a green-yellow wire enter a device. Identify the likely line, neutral, and protective earth conductors.
- 3 A DC control panel uses red for +24 V and black for 0 V common. What voltage should a meter read when the red probe is on the red wire and the black probe is on the black wire?
- 4 Why is it unsafe to rely only on insulation color before touching or modifying a wire in an electrical system?
Understanding Electrical Wiring Color Code Reference
Color coding works as a visual map layered onto the circuit diagram. A wire has an electrical job based on where it connects, not on its insulation color. The diagram shows this job through symbols, terminal names, and connection paths.
Color makes tracing faster when many conductors run through the same cable, conduit, or control cabinet. In a panel, conductors may be grouped by circuit number, terminal block, or phase.
Labels and markings are therefore as important as color. A careful technician follows a conductor from one endpoint to the other before deciding what it does.
Alternating current systems often have more than one energized supply conductor. These are called phases. In a three phase system, the phases take turns reaching their voltage peaks.
This produces smoother power delivery for large motors and industrial equipment. Phase colors help workers keep conductors in the correct order. Incorrect phase order can make some three phase motors rotate in the wrong direction.
In school diagrams, notice whether a circuit is single phase or three phase. Notice the voltage rating too. A color that represents one function in a low voltage control circuit may not have the same meaning in building power wiring.
Some wires can be misleading because their job changes within a circuit. A switch loop is a common example. A conductor may carry power down to a switch, then return as a switched energized conductor to a lamp.
Older installations sometimes use insulation colors in ways that do not match modern expectations. Wires may be faded, painted over, replaced during repairs, or marked incorrectly by a previous worker. A white insulated wire can be repurposed in limited cases when it is permanently marked at its ends, but this must follow the applicable electrical code.
Students reading schematics should rely on the connection lines and terminal labels first. Color is a useful cross check, not the final answer.
Testing is the step that turns an assumption into evidence. A meter reading compares electrical potential between two selected points. The selected meter setting must match the type of supply being checked.
Meter leads, probe condition, and meter ratings matter because an unsuitable meter can create a serious hazard. Professional practice includes isolating the supply, preventing accidental reconnection, and proving the tester works before and after a test. Students should only measure circuits that their teacher has approved and that use safe training equipment.
Household panels, outlets, and exposed mains wiring require qualified supervision. Good wiring work combines diagrams, labels, visual inspection, and measured results.
