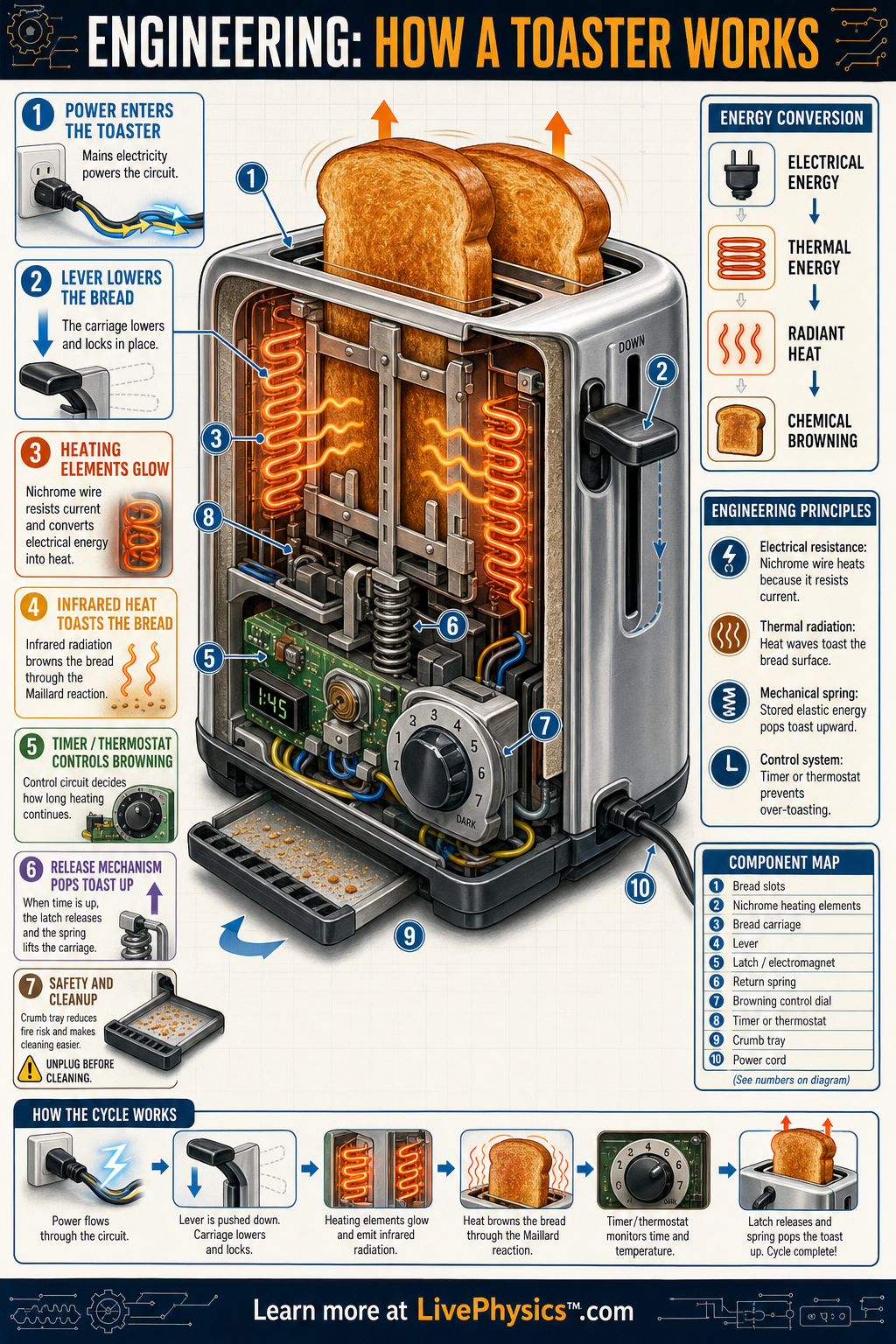

How a Toaster Works
a Toaster
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets
A pop-up toaster is a small appliance that turns electrical energy into heat to brown bread quickly and evenly. It matters because it shows several core engineering ideas in one familiar device: electrical resistance, heat transfer, timing, safety, and mechanical motion. Inside the toaster, simple parts work together so the bread is heated, held in place, released, and protected from overheating.
Key Facts
- Electrical power is P = VI, where P is power, V is voltage, and I is current.
- Resistive heating follows P = I^2R, so current through a high-resistance wire produces heat.
- Heat energy can be estimated by E = Pt, where E is energy, P is power, and t is time.
- Nichrome wire is used for heating elements because it has high resistance and tolerates high temperature.
- Browning happens mainly through the Maillard reaction, which speeds up when bread surface temperature is high.
- A spring-loaded carriage stores elastic potential energy and releases the toast when the latch lets go.
Vocabulary
- Heating element
- A heating element is a resistive wire or strip that converts electrical energy into thermal energy.
- Nichrome
- Nichrome is a nickel-chromium alloy often used in heating elements because it resists oxidation and gets hot without melting.
- Thermostat
- A thermostat is a control device that responds to temperature and helps prevent unsafe overheating.
- Timer circuit
- A timer circuit controls how long the toaster stays on before the bread carriage is released.
- Carriage
- The carriage is the spring-loaded support that lowers, holds, and raises the bread slices.
Common Mistakes to Avoid
- Thinking the toaster cooks bread with flames is wrong because normal toasters use infrared radiation and hot air from electric heating elements, not combustion.
- Ignoring power rating is wrong because a 1200 W toaster uses twice as much energy per second as a 600 W toaster when both are on.
- Assuming the timer alone prevents all overheating is wrong because many toasters also use temperature-sensitive parts and thermal safety features.
- Putting metal utensils into a plugged-in toaster is dangerous because metal can contact live electrical parts and create a shock or short circuit.
Practice Questions
- 1 A toaster is rated at 900 W and runs for 2.5 minutes. How much energy does it use in joules?
- 2 A toaster operates at 120 V and draws 7.5 A. What is its electrical power, and what is the resistance of its heating element?
- 3 Explain why toaster heating elements glow red while the metal outer shell usually stays much cooler.
