Circuit protection keeps electrical systems safe by stopping dangerous currents before wires overheat, equipment fails, or people are shocked. In homes, schools, and workplaces, devices such as fuses and circuit breakers are placed in circuits so faults can be interrupted quickly. Grounding adds another layer of safety by giving unwanted current a low resistance path to earth or to the system reference point.
Together, these features reduce fire risk, protect appliances, and improve reliability.
A fuse protects a circuit by melting a thin metal element when current exceeds its rated value for too long. A circuit breaker does a similar job with a switch mechanism that trips open and can usually be reset after the fault is fixed. Grounding does not normally carry current in a healthy circuit, but during a fault it helps force enough current to flow so the fuse or breaker opens fast.
Engineers choose protection devices by matching voltage, current rating, interrupting capacity, and the expected fault conditions of the system.

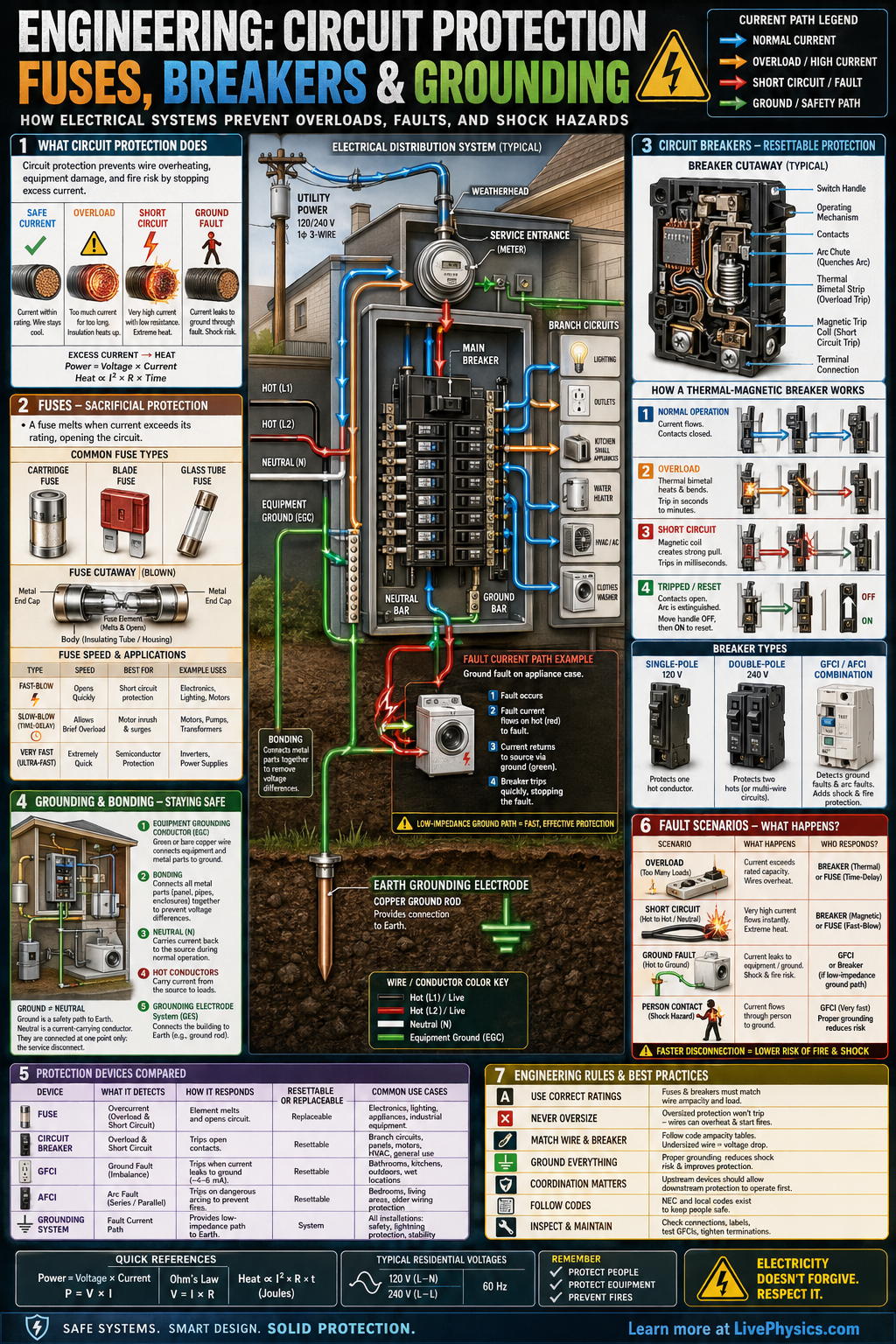

Understanding Circuit Protection: Fuses, Breakers, and Grounding
An overload develops when a circuit supplies more working devices than its wires are meant to carry. A space heater, kettle, microwave, and toaster can each seem ordinary, yet several high power appliances on one branch circuit can push its current above a safe level. The danger usually builds over time because wire insulation becomes hotter as current rises.
A short circuit is different. It occurs when conductors at different voltages touch through a very low resistance path, often because damaged insulation, a loose wire, or a failed component connects them. Current can rise extremely fast during a short circuit, creating heat, sparks, and strong magnetic forces.
Protection devices respond differently to slow overloads and sudden faults. Many circuit breakers contain a thermal part that reacts to sustained excess current. It warms gradually, so a small overload may take time to trip.
They also contain a magnetic part for large fault currents. A strong current creates a magnetic pull that opens the breaker almost immediately. This difference is intentional.
Motors and some appliances draw a brief starting current that should not trip the circuit every time they turn on. Fuses have their own time response based on the material and shape of the metal element.
A correct rating means more than choosing a number close to the normal current. The device must interrupt the largest fault current that the electrical supply can deliver without breaking apart or continuing to arc.
Grounding involves more than connecting a wire to the soil. In a building, the protective grounding conductor connects metal cases, outlet ground contacts, panels, and other exposed conductive parts. Bonding joins these parts so they remain close to the same electrical potential.
If a live wire contacts a metal appliance case, the grounding path carries fault current back toward the source. This gives the breaker a clear fault path and helps it trip. Earth itself is not usually the main return path for this purpose.
The neutral conductor carries normal return current, while the equipment grounding conductor should carry current only during a fault. Mixing their jobs in the wrong place can leave metal cases unsafe.
Ground fault circuit interrupters protect against a different kind of problem. They compare the current leaving on the hot conductor with the current returning on the neutral conductor. If some current leaks through water, damaged insulation, or a person, the amounts no longer match.
The device can disconnect power even when the leakage is too small to trip a normal breaker. This is why these outlets are common near sinks, bathrooms, garages, and outdoor areas.
Students should learn to trace the complete current path, identify which conductor is normal return and which is protective ground, and never replace a fuse or breaker with a larger rating just to stop nuisance trips. A repeated trip is evidence that needs investigation.
Key Facts
- Normal electric power relation: P = VI
- For a resistive load, current can be found from I = V/R
- Heat in wiring rises with current as P_loss = I^2R
- A fuse opens when its element overheats and melts above its rated current-time limit
- A circuit breaker trips when thermal or magnetic sensing detects overload or short-circuit current
- Ground fault protection works by detecting current imbalance, ideally I_hot = I_neutral in normal operation
Vocabulary
- Fuse
- A fuse is a one-time protective device that melts and opens a circuit when current becomes too large.
- Circuit breaker
- A circuit breaker is a resettable switch that automatically opens a circuit during overloads or short circuits.
- Grounding
- Grounding is the connection of parts of an electrical system to earth or a reference conductor to improve safety and fault clearing.
- Overload
- An overload is excess current above the normal rating of a circuit, usually caused by too many devices or a motor drawing too much current.
- Short circuit
- A short circuit is an unintended low resistance path that allows very large current to flow suddenly.
Common Mistakes to Avoid
- Confusing grounding with the neutral wire, which is wrong because neutral normally carries return current while grounding is mainly a safety path during faults.
- Choosing a fuse or breaker only by normal operating current, which is wrong because the device also needs the correct voltage rating and interrupting capacity for the fault level.
- Replacing a blown fuse with a larger one, which is wrong because the wire may overheat before the fuse opens and this can create a fire hazard.
- Assuming a breaker protects people from all shocks, which is wrong because standard breakers mainly protect wiring from overcurrent and special devices such as GFCIs are needed for many ground fault shock hazards.
Practice Questions
- 1 A 120 V space heater has a resistance of 12 ohms. Calculate the current it draws and the power it uses.
- 2 A branch circuit wire has resistance 0.40 ohms and carries 15 A. Calculate the power lost as heat in the wire using P_loss = I^2R.
- 3 A metal appliance case becomes energized because a hot wire touches it. Explain why proper grounding helps the fuse or breaker open quickly and why this improves safety.
