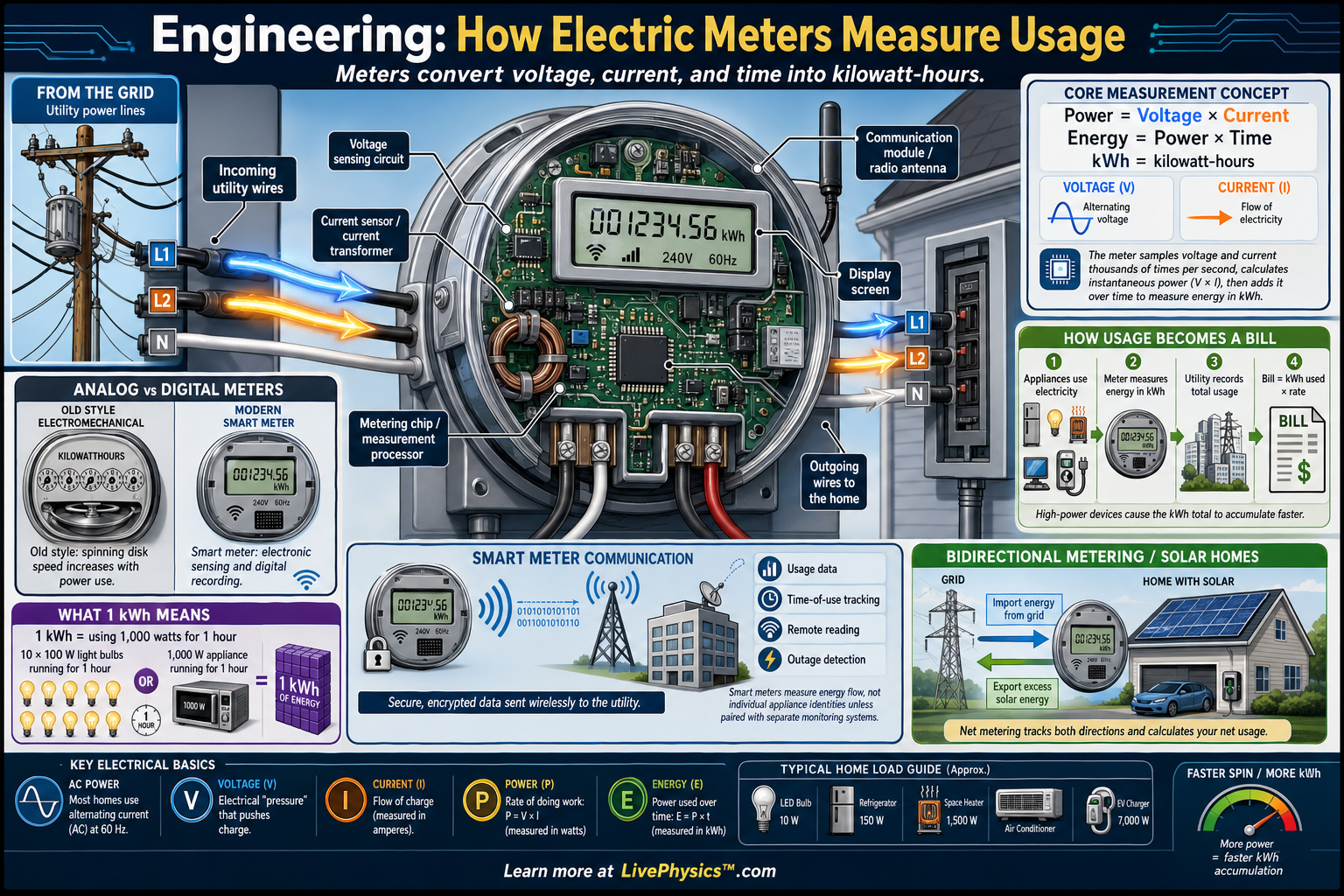

An electric meter measures how much electrical energy a home uses so the utility can bill fairly and monitor demand on the grid. It sits between the incoming service wires and the house electrical panel, so all household current passes through or is sensed by the meter. The key quantity is energy, not just power, because the bill depends on how long appliances run as well as how much power they draw.
Modern meters make this measurement continuously and report usage in kilowatt-hours.
Understanding How Electric Meters Measure Usage
Older household meters used a rotating aluminum disk. Coils inside the meter made magnetic fields from the supply voltage and the current flowing to the home. These fields pushed on the disk, causing it to turn.
A brake magnet resisted the motion, so the disk speed matched the rate of energy use. Gears counted the turns and moved number dials. This design was clever because it performed a physical version of multiplication and time accumulation without electronics.
A disk that turned quickly showed a large load. A disk that kept turning for hours recorded substantial energy.
Electronic meters use sensors instead of a spinning disk. A small, carefully known resistor or a current transformer measures current. Separate circuits measure the line voltage.
A processor takes many readings during each alternating current cycle. It combines matching voltage and current readings to find real power, then adds tiny energy amounts over time. The timing matters because voltage and current do not always rise and fall together.
Motors, transformers, and some electronic power supplies can shift the current waveform relative to voltage. The meter must account for this shift so it charges for useful transferred energy rather than a simple product that may be too large.
The unit on a household bill is useful because it connects appliance power with running time. A one kilowatt space heater used for three hours consumes three kilowatt-hours. A ten watt phone charger left connected for a day uses much less, though small loads can add up when they run every day.
Heating elements often use large amounts because nearly all their electrical input becomes heat. Refrigerators and air conditioners switch on and off, so their energy use depends on room temperature, insulation, settings, and how long the compressor runs.
Smart meters can store readings at regular intervals, such as every fifteen minutes or every hour. This creates a load profile showing when a building uses energy. Utilities use these patterns to plan generators, wires, and transformers for busy periods.
Some electricity plans charge different prices at different times, which gives households a reason to move flexible tasks away from high-demand periods. A smart meter can usually send data by radio, power line signals, or a cellular connection.
It does not control every appliance by itself. Its main job is measurement and communication.
Meter measurements must remain accurate for years in outdoor weather, electrical noise, and changing loads. Engineers test meters at very low current, near their rated current, and with loads that have different power factors. They protect the sensing circuits from voltage surges caused by lightning or switching equipment.
Safety is essential because the meter connects directly to high-voltage service conductors. When studying this topic, keep power and energy separate in your mind. Power describes the rate of transfer at one moment.
Energy is the total collected over a period. That distinction explains why a brief high-power event may cost little while a modest device running continuously can matter.
Key Facts
- Electrical power is P = VI for a simple direct current circuit.
- For alternating current, real power is P = Vrms Irms cos(theta).
- Energy used is E = Pt when power is constant.
- 1 kilowatt-hour = 1000 W x 3600 s = 3.6 x 10^6 J.
- A smart meter samples voltage and current many times per second to calculate power and add it over time.
- The meter reading increases faster when high-power devices like heaters, ovens, or air conditioners are running.
Vocabulary
- Kilowatt-hour
- A kilowatt-hour is a unit of energy equal to using 1000 watts of power for 1 hour.
- Real power
- Real power is the rate at which electrical energy is actually converted into useful work or heat in a circuit.
- RMS voltage
- RMS voltage is the effective value of an alternating voltage that produces the same heating effect as a direct voltage.
- Current transformer
- A current transformer is a sensor that measures large alternating currents by producing a smaller proportional current.
- Power factor
- Power factor is the ratio of real power to apparent power and depends on the phase difference between voltage and current.
Common Mistakes to Avoid
- Confusing power with energy is wrong because watts measure the rate of energy use, while kilowatt-hours measure the total energy used over time.
- Using peak AC voltage instead of RMS voltage is wrong because household power calculations normally use RMS values.
- Ignoring power factor in AC circuits is wrong because voltage times current gives apparent power, not always the real power billed for energy use.
- Assuming a meter only counts current is wrong because energy measurement requires both voltage and current, plus time.
Practice Questions
- 1 A 1500 W space heater runs for 4.0 h. How many kilowatt-hours of energy does it use?
- 2 A home uses 28 kWh in one day. If electricity costs $0.16 per kWh, what is the cost for that day?
- 3 Two appliances draw the same RMS current from the same outlet, but one has a lower power factor. Which one uses less real power, and why?
