How Fuses Work
Fuses
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets

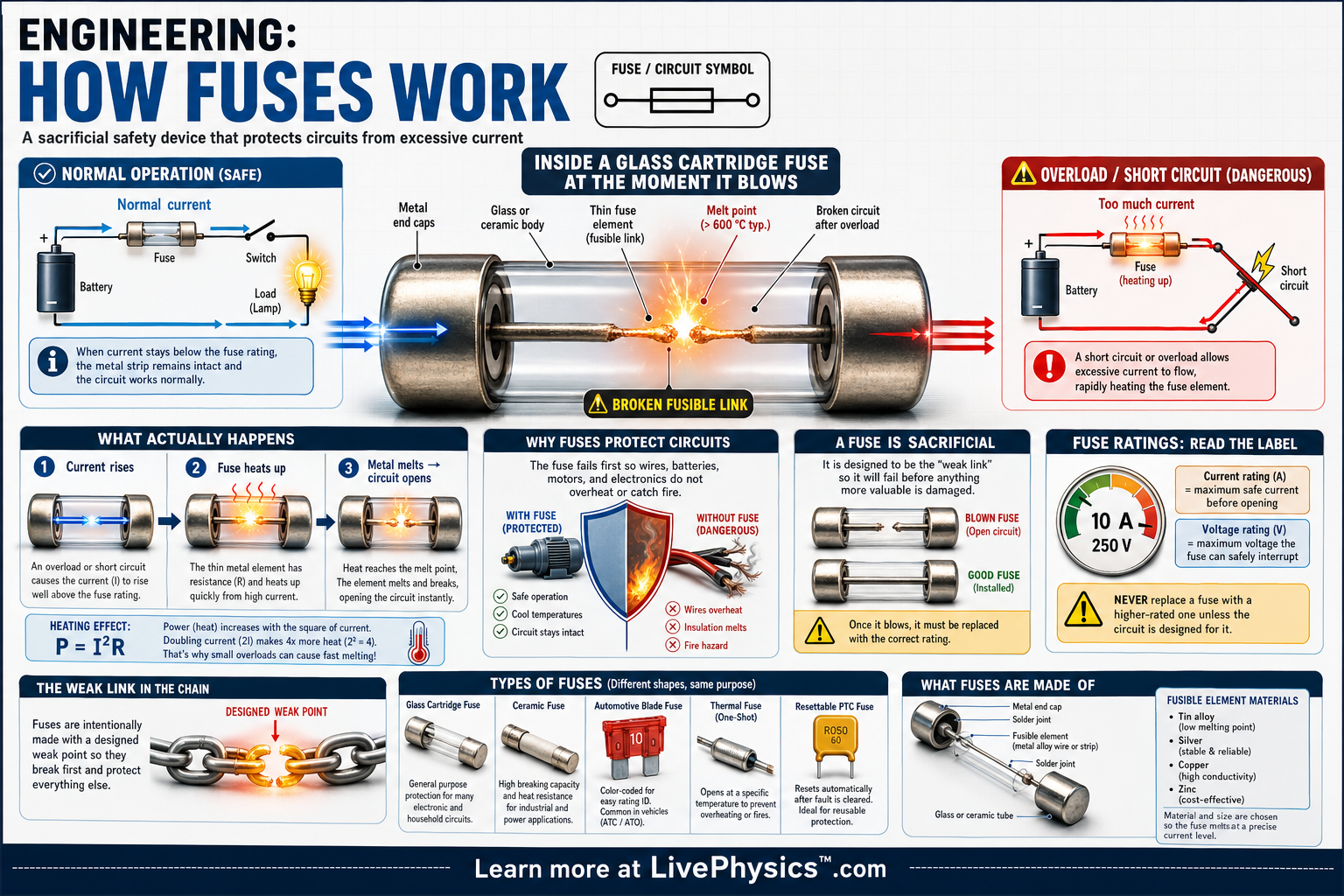

A fuse is a simple safety device that protects wires and equipment from too much electric current. It contains a thin metal strip or wire that is designed to heat up faster than the rest of the circuit. When the current becomes dangerously high, the metal melts and opens the circuit. This prevents overheating, insulation damage, fires, and failure of more expensive components.
Fuses work because electric current produces heat in any resistance, described by P = I^2R. The fuse element is made with a carefully chosen material, thickness, and length so it melts at a known current level. In a glass cartridge fuse, the transparent body lets you see whether the fusible link has broken. Engineers choose fuse ratings based on normal operating current, possible fault current, voltage rating, and how fast the circuit must be disconnected.
Key Facts
- Heating in a fuse follows P = I^2R, so doubling current makes heating four times larger.
- A fuse opens a circuit by melting a fusible link when current exceeds its safe rating.
- Current in a series circuit is the same through the fuse and the protected load.
- Ohm's law relates circuit current, voltage, and resistance: V = IR.
- Electrical power can be found from P = VI, P = I^2R, or P = V^2/R.
- A fuse must have both a current rating and a voltage rating suitable for the circuit.
Vocabulary
- Fuse
- A fuse is a protective device that melts and breaks a circuit when current becomes too large.
- Fusible link
- The fusible link is the thin metal part inside a fuse that is designed to melt during an overcurrent.
- Overcurrent
- Overcurrent is any current greater than the safe or intended value for a circuit.
- Short circuit
- A short circuit is an unintended low-resistance path that can allow a very large current to flow.
- Current rating
- Current rating is the maximum current a fuse can carry under specified conditions without opening.
Common Mistakes to Avoid
- Replacing a blown fuse with a higher rated fuse is wrong because it may let unsafe current flow long enough to overheat wires or cause a fire.
- Assuming a fuse limits current continuously is wrong because a fuse does not regulate current, it only opens the circuit after enough heating occurs.
- Ignoring the voltage rating is wrong because a fuse must safely stop current without arcing at the circuit voltage.
- Putting the fuse in parallel with the load is wrong because a fuse must be in series so all load current passes through it.
Practice Questions
- 1 A 2.0 ohm fuse element briefly carries 5.0 A during a fault. How much thermal power is produced in the fuse element using P = I^2R?
- 2 A device normally uses 1.5 A from a 120 V supply. What is its normal power, and why would a 1 A fuse be unsuitable for this device?
- 3 A glass fuse has a broken metal link and dark marks inside the tube. Explain what likely happened in the circuit and why the broken link made the circuit safe.
