A power grid is the connected system that moves electrical energy from where it is produced to where people use it. It matters because homes, hospitals, factories, data centers, and transportation all depend on a steady supply of electricity every second. Engineers design grids to deliver power safely, efficiently, and reliably over long distances.
The grid must also respond instantly when demand changes during the day.

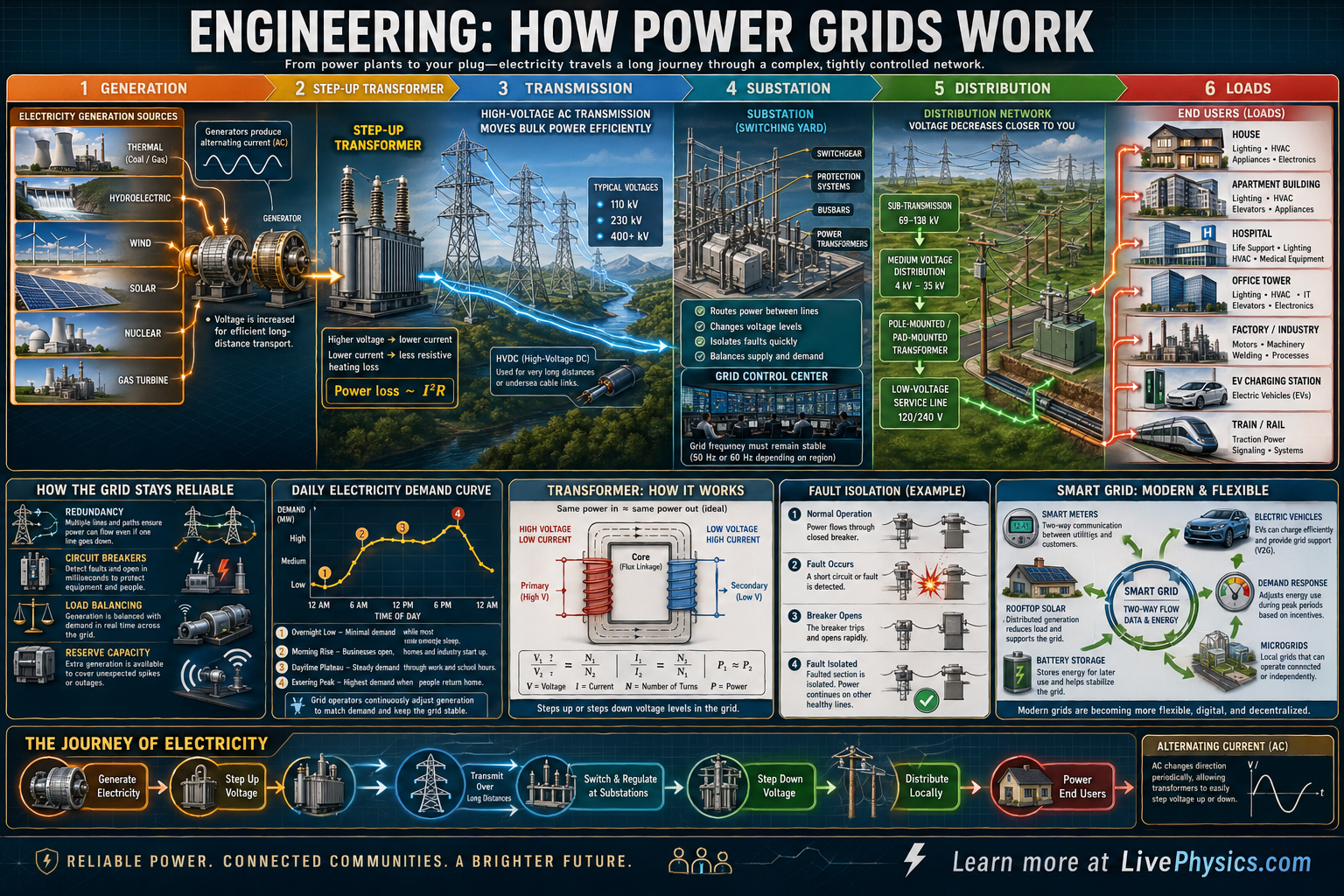

Electricity usually starts at a generating station, then passes through transformers that raise the voltage for long distance transmission. High voltage lowers current for the same power, which reduces energy loss in the wires according to P_loss = I^2R. Near cities and neighborhoods, substations lower the voltage in stages so it can be distributed safely to customers.
Modern grids also use sensors, control centers, and protective devices to balance supply and demand and to isolate faults before they spread.
Understanding Electrical Engineering: How Power Grids Work
Most large generators make alternating current by spinning coils or magnets inside a magnetic field. The spinning motion usually comes from steam turbines, water turbines, wind turbines, or engines. A connected generator cannot simply spin at any speed.
Its electrical output must match the grid frequency and line up with the wave pattern already on the network. When customers switch on more equipment, generators must receive more mechanical input very quickly. If supply becomes too small, the rotating machines slow slightly and frequency falls.
If supply is too large, frequency rises. Automatic controls called governors adjust generator output, while grid operators direct larger changes over minutes and hours.
Many transmission networks use three phase alternating current. They carry three voltage waves that are evenly spaced through each cycle. This arrangement delivers power smoothly and makes large motors run efficiently.
Transformers work well with alternating current because a changing magnetic field in one coil induces a voltage in another coil. Their windings are electrically separate, which can improve safety and allow different voltage levels. Long lines have more than simple wire resistance.
They have inductance and capacitance, which affect how voltage and current behave along the route. Engineers manage these effects with capacitor banks, reactors, and other equipment.
This part of grid operation is called reactive power control. It helps keep voltage within safe limits, especially when loads or generation change.
Faults are unavoidable. Lightning can strike a line, a tree can touch a conductor, or insulation can fail. Protection systems must identify the damaged section in a fraction of a second.
Relays measure electrical quantities and send commands to circuit breakers. A breaker opens to stop fault current before heat and mechanical forces damage equipment. Protection is carefully coordinated so the device closest to the fault opens first.
That prevents a small local problem from shutting down an entire city. Important parts of a network often have more than one possible route for electricity.
This gives operators options when a line, transformer, or generator is out of service. Engineers call this planning for the loss of one major component without causing widespread interruption.
The final part of the system is much closer to everyday life. Distribution feeders run along streets or underground routes. Smaller branches supply groups of buildings, and a local transformer provides the voltage used at a service entrance.
The meter records energy use over time. The main panel contains breakers that protect the wiring inside a building. Grounding and neutral conductors provide a controlled path during certain faults, helping breakers operate quickly.
Appliances do not receive a fixed amount of power merely because they are plugged in. Their design determines how much current they draw at the supply voltage.
When learning grids, keep separate the ideas of power, energy, voltage, current, and frequency. They are connected, but they describe different parts of the same system.
Key Facts
- Electrical power is P = VI, where P is power, V is voltage, and I is current.
- For the same power, increasing voltage decreases current: I = P/V.
- Resistive line losses are P_loss = I^2R, so high voltage transmission reduces losses.
- Transformers change voltage using the turns ratio: Vp/Vs = Np/Ns.
- In AC systems, frequency must stay near its target value, typically 50 Hz or 60 Hz, to keep the grid stable.
- Substations step voltage down in stages, for example from transmission levels to distribution levels and then to utilization voltages such as 120 V or 230 V.
Vocabulary
- Generation
- Generation is the production of electrical energy at power plants using sources such as coal, gas, nuclear, hydro, wind, or solar.
- Transmission
- Transmission is the long distance movement of electricity at very high voltage from power plants to major substations.
- Substation
- A substation is a facility that uses transformers, switches, and protection equipment to control power flow and change voltage levels.
- Distribution
- Distribution is the local delivery of electricity from substations to homes, schools, stores, and factories.
- Transformer
- A transformer is a device that increases or decreases AC voltage using magnetic induction between coils.
Common Mistakes to Avoid
- Thinking electricity is stored in transmission lines, which is wrong because the grid mainly delivers energy as it is generated and balanced in real time.
- Assuming higher voltage is more wasteful, which is wrong because for the same power a higher voltage means lower current and lower I^2R losses.
- Confusing transmission lines with distribution lines, which is wrong because transmission carries bulk power over long distances while distribution serves local customers at lower voltage.
- Believing a transformer works with any current type, which is wrong because standard transformers require changing current and therefore work with AC rather than steady DC.
Practice Questions
- 1 A transmission line must deliver 1.0 x 10^8 W of power. If the line voltage is 2.0 x 10^5 V, what current flows in the line using I = P/V?
- 2 A power line has resistance R = 4.0 ohms and carries current I = 500 A. Calculate the resistive power loss using P_loss = I^2R.
- 3 Explain why power grids use substations and multiple voltage levels instead of sending one single voltage directly from the power plant to every customer.
