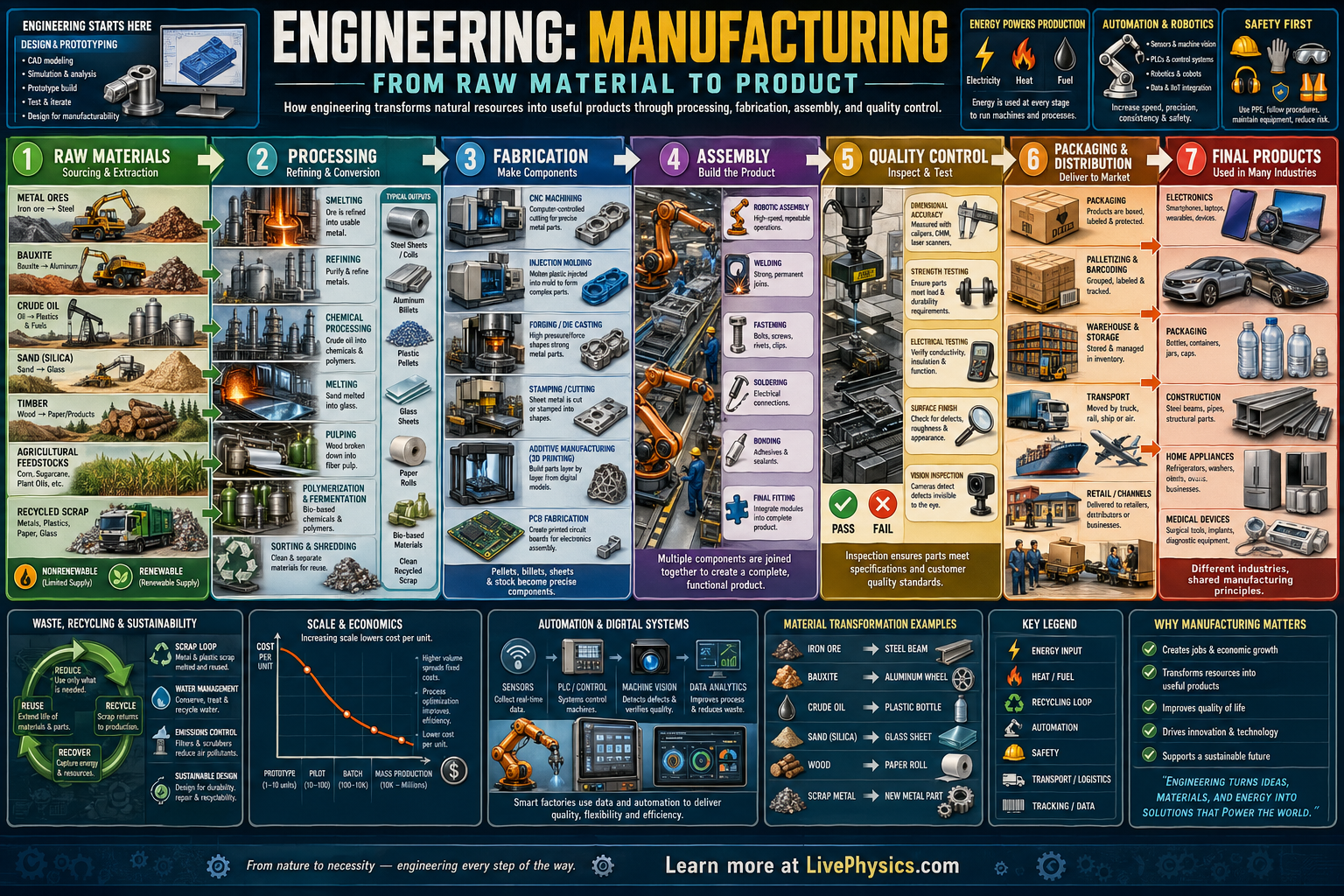

Manufacturing Engineering: From Raw Material to Product
Casting, Machining, Welding, and Quality Inspection
Related Tools
Related Worksheets
Manufacturing is the engineering process of turning raw materials into useful products through a sequence of planned steps. It matters because nearly everything people use, from phones to bicycles to medical tools, depends on efficient and reliable production. Engineers must balance cost, speed, quality, safety, and environmental impact at every stage. A good manufacturing system can produce many identical parts while still meeting strict performance standards.
The path from raw material to product usually includes material extraction, processing, shaping, assembly, quality control, packaging, and distribution. Different materials such as metals, polymers, ceramics, and composites require different methods like casting, machining, molding, or additive manufacturing. Measurements and feedback are built into the process so defects can be caught early and waste can be reduced. Modern factories also use automation, sensors, and data analysis to improve precision and productivity.
Key Facts
- Manufacturing flow often follows: raw material -> processing -> part production -> assembly -> inspection -> packaging -> distribution.
- Productivity = output / input
- Yield = good units / total units
- Efficiency = useful output energy / total input energy
- Unit cost = total production cost / number of units produced
- Quality control reduces variation so parts stay within design tolerances.
Vocabulary
- Raw material
- A basic natural or processed substance used as the starting input for manufacturing.
- Tolerance
- The allowed amount of variation in a part's dimension or performance from its target value.
- Assembly
- The stage where separate manufactured parts are joined to make a complete product.
- Automation
- The use of machines, control systems, and software to perform manufacturing tasks with limited human effort.
- Quality control
- The process of checking products and processes to make sure they meet required standards.
Common Mistakes to Avoid
- Assuming manufacturing is only assembly, which is wrong because the full process begins with material selection and includes shaping, testing, and finishing before a product is complete.
- Ignoring tolerances when comparing part sizes, which is wrong because two parts can have slightly different measurements and still both be acceptable.
- Confusing efficiency with productivity, which is wrong because efficiency compares useful output to total input while productivity compares output to resources such as time or labor.
- Thinking inspection only happens at the end, which is wrong because modern manufacturing uses checks throughout production to catch defects early and reduce waste.
Practice Questions
- 1 A factory uses 500 kg of raw polymer to make 450 kg of usable molded parts. What is the material yield as a decimal and as a percent?
- 2 A production line makes 240 parts in 8 hours using 4 workers. What is the productivity in parts per worker-hour?
- 3 A company can inspect products only at the end of the line or at several steps during production. Explain which choice is usually better for reducing waste and why.
