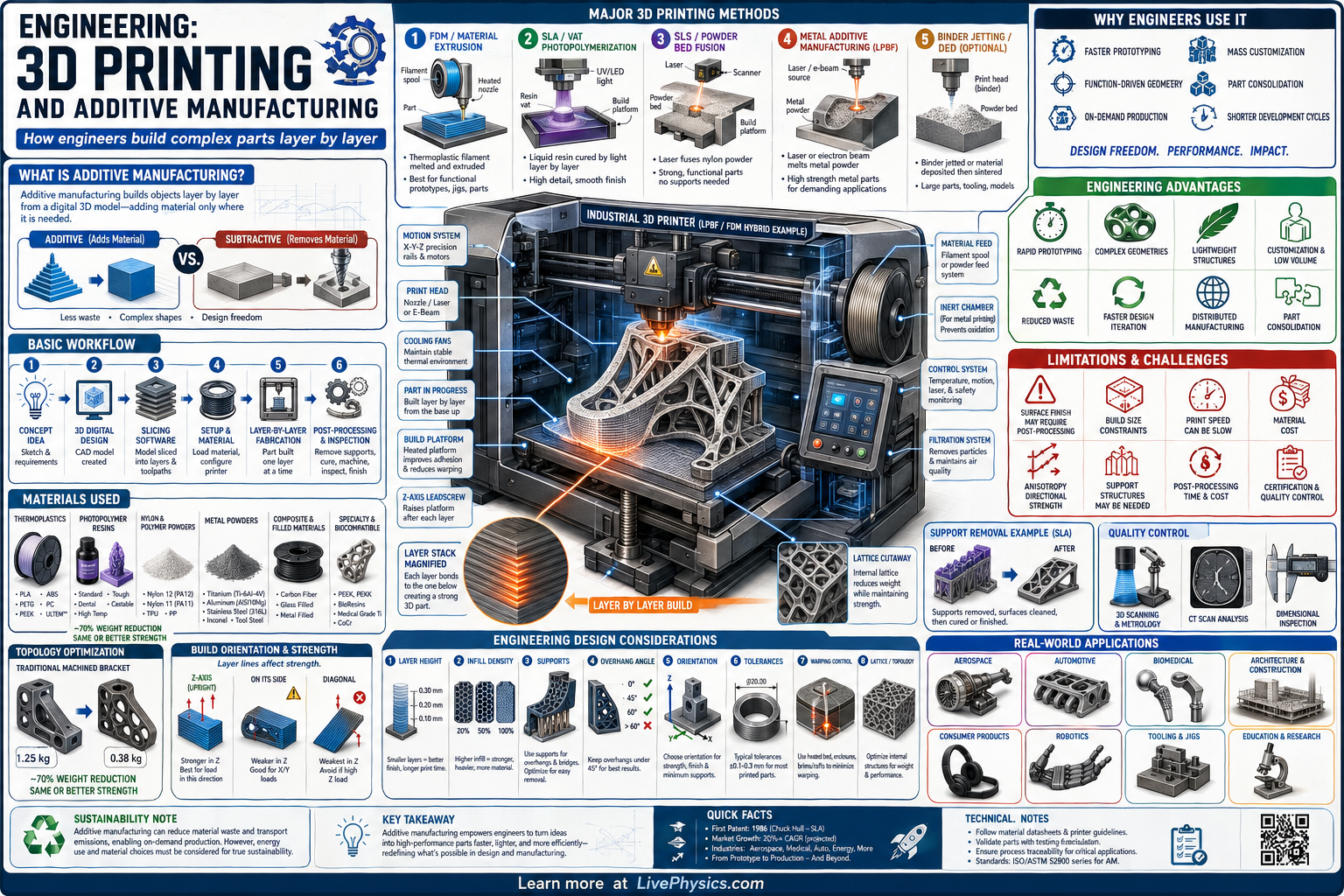

3D printing, also called additive manufacturing, is a way of making objects by building them one layer at a time from a digital design. Engineers use it to create prototypes, custom tools, medical devices, and even parts for aircraft and cars. It matters because it can reduce waste, shorten design cycles, and make shapes that are hard or impossible to produce with traditional machining.
The process connects computer modeling directly to physical production, which makes it a powerful engineering tool.
In additive manufacturing, a CAD model is sliced into many thin horizontal layers, and the printer follows those instructions to deposit or solidify material in each layer. Different systems use plastics, metals, resins, or powders, and each method has tradeoffs in strength, speed, cost, and surface finish. Engineers must think about layer thickness, print orientation, support structures, and post processing because these choices affect accuracy and mechanical performance.
The result is a manufacturing approach that is especially useful for rapid iteration, lightweight design, and low volume production.
Understanding 3D Printing and Additive Manufacturing
A slicer does more than divide a shape into horizontal sheets. It creates travel paths for the nozzle or energy source, sets temperatures, controls speed, and decides where the outer walls begin. The outer walls, often called perimeters, usually matter more for strength than the material placed in the middle.
A printer must move material at a steady rate. If it moves too fast, plastic may stretch into gaps or fail to bond.
If it moves too slowly, heat can build up and soften nearby features. Small settings such as nozzle diameter, cooling time, and first layer height can decide whether a print succeeds.
Infill is the internal structure inside a part. A low infill percentage saves material and reduces print time, which is useful for models that only need to look correct. Functional parts need more careful choices.
Grid, triangle, honeycomb, and gyroid patterns spread loads in different ways. More infill does not always produce a much stronger part. Adding extra outer walls or increasing thickness near holes can be more effective because stresses often concentrate at edges, corners, and fasteners.
Students can see this by comparing a solid-looking test piece with one that cracks near a screw hole. Strength depends on shape, wall thickness, material bonding, and the direction of the applied load.
Print orientation is especially important because printed layers do not have equal strength in every direction. In many plastic printers, material bonds strongly along a deposited line but less strongly between layers. A tall hook may snap across its layer lines when pulled sideways.
Turning the same hook on its side can make it much stronger, though it may then need supports. Supports hold up overhangs while the part is being made. They prevent sagging, but they use extra material and leave rough marks after removal.
Engineers try to orient a design so that important surfaces face upward or sideways, while hidden surfaces receive support contact. They may redesign an overhang as a sloped surface, called a chamfer, to avoid supports entirely.
Materials determine what a printed object can safely do. PLA is common in classrooms because it prints at relatively low temperatures and has little warping, but it can soften in heat. PETG has better impact resistance and moisture resistance.
ABS can tolerate warmer conditions but tends to shrink as it cools, causing corners to lift from the build plate. Resin prints can show fine detail, yet many resins are brittle and require careful washing and curing. Metal printing can produce complex aerospace or medical parts, but the process needs strict control of powder, heat, and safety.
Every process has tolerances, meaning the expected range around a target size. Holes often print too small and mating parts may fuse if clearances are too tight.
Measure test pieces with calipers, record the difference from the design, then adjust dimensions before printing the final part. This cycle of testing, measuring, and improving is central to engineering.
Key Facts
- Additive manufacturing builds parts layer by layer from a digital 3D model.
- A sliced model divides the object into thin layers, and total build height is H = N x t where N is number of layers and t is layer thickness.
- Print time generally increases as layer thickness decreases because more layers are required for the same height.
- Material efficiency is often higher than subtractive manufacturing because less raw material is cut away as waste.
- Density = mass/volume is important for checking whether a printed part has internal voids or poor infill.
- Engineers often compare percent error using percent error = |measured - designed| / designed x 100%.
Vocabulary
- Additive manufacturing
- A manufacturing process that creates an object by adding material layer by layer from a digital design.
- CAD model
- A computer aided design file that defines the shape and dimensions of a part before it is printed.
- Slicing
- The process of converting a 3D model into many thin layers and tool paths that a printer can follow.
- Support structure
- Temporary printed material that holds up overhangs or complex features during the printing process.
- Infill
- The internal pattern and density inside a printed part that affects strength, mass, and print time.
Common Mistakes to Avoid
- Assuming 3D printing makes every part stronger, which is wrong because printed parts can be weaker between layers and their strength often depends on print orientation.
- Ignoring support material, which is wrong because overhangs and bridges may fail or deform if the design does not include enough support.
- Choosing the smallest possible layer thickness every time, which is wrong because finer layers improve detail but also increase print time and may not be necessary for the part's function.
- Treating the CAD dimensions as the final exact dimensions, which is wrong because shrinkage, warping, and printer calibration can cause the printed part to differ from the design.
Practice Questions
- 1 A part is 60 mm tall and is printed with a layer thickness of 0.20 mm. How many layers are needed to complete the part?
- 2 A printed bracket was designed to be 50.0 mm long, but the measured length after printing is 49.2 mm. What is the percent error in length?
- 3 A metal part can be made either by machining from a solid block or by additive manufacturing. Explain one engineering reason why additive manufacturing might be preferred and one reason why machining might still be better.
