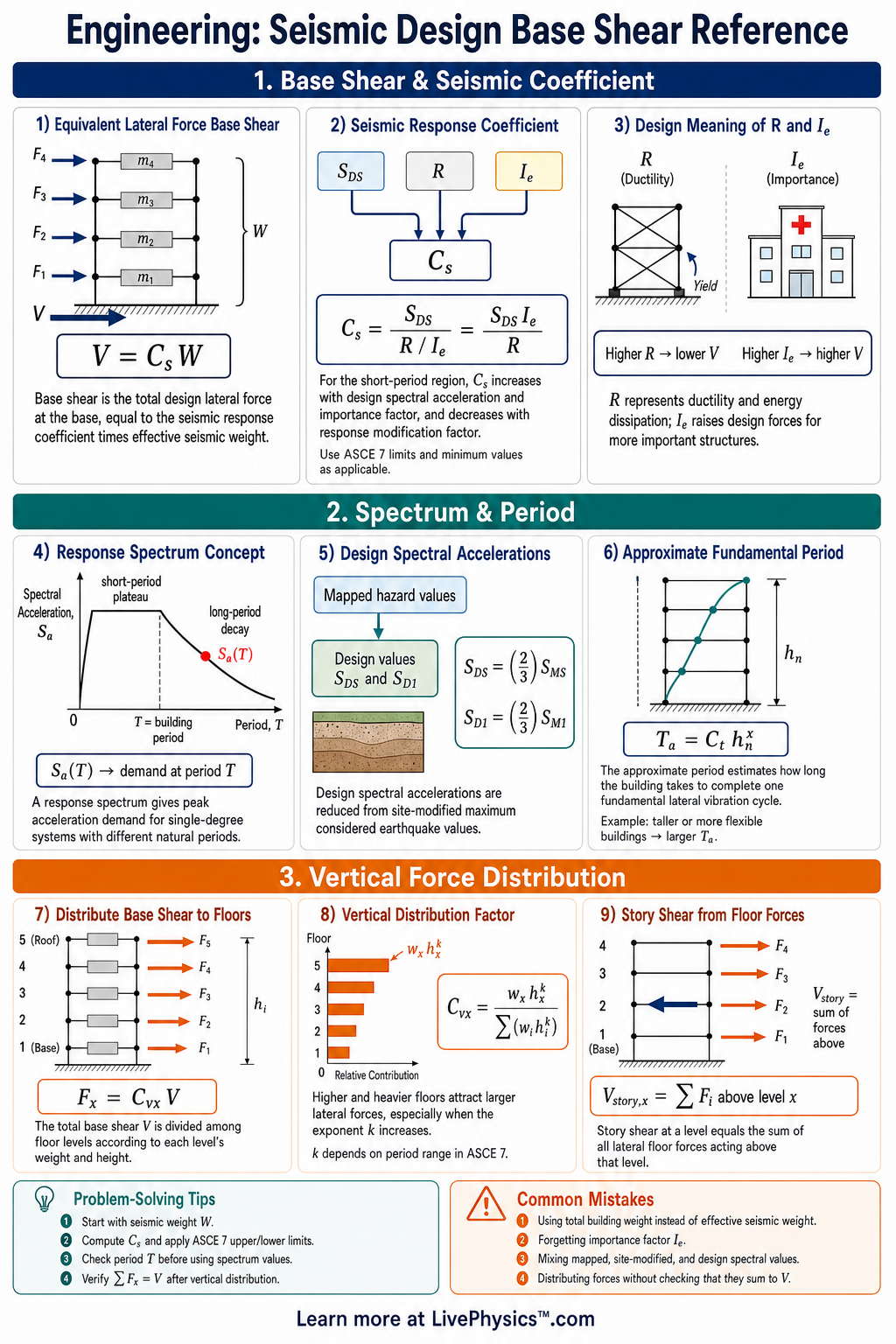

This cheat sheet covers the main equations and design checks used to estimate seismic design base shear in building structures. College engineering students need these references because seismic provisions connect structural dynamics, site hazard, building mass, and code-based safety factors. A compact formula sheet helps organize the workflow from mapped spectral values to total lateral design force.
Key Facts
- Equivalent lateral force base shear is commonly calculated as V = Cs W, where V is design base shear, Cs is the seismic response coefficient, and W is effective seismic weight.
- For many code-based procedures, the seismic response coefficient may be limited by Cs = SDS / (R / Ie), where SDS is the short-period design spectral acceleration, R is the response modification factor, and Ie is the importance factor.
- For longer-period structures, a common upper-period expression is Cs = SD1 / (T (R / Ie)), where SD1 is the 1-second design spectral acceleration and T is the fundamental period.
- The design base shear coefficient should not be taken below the applicable code minimum, such as Cs,min = max(0.044 SDS Ie, 0.01) in common ASCE 7 style provisions.
- Approximate fundamental period may be estimated as Ta = Ct hn^x, where Ct and x depend on the structural system and hn is the structural height.
- Effective seismic weight W includes the total dead load and specific portions of other loads required by the governing code, such as certain storage, partition, or snow loads.
- Vertical distribution of lateral force can be calculated as Fx = Cvx V, where Cvx = wx hx^k / sum(wi hi^k).
- Story shear at a level equals the sum of all lateral forces at and above that level, so Vx = sum(Fi) for levels i above or equal to x.
Vocabulary
- Base shear
- Base shear is the total horizontal seismic design force applied at the base of a structure.
- Seismic response coefficient
- The seismic response coefficient Cs is a dimensionless factor that converts effective seismic weight into design base shear.
- Effective seismic weight
- Effective seismic weight W is the portion of building weight considered to participate in earthquake inertia forces.
- Design spectral acceleration
- Design spectral acceleration is a code-adjusted ground motion value used to estimate earthquake demand at short or 1-second periods.
- Response modification factor
- The response modification factor R reduces elastic seismic demand to account for ductility, overstrength, and energy dissipation.
- Fundamental period
- The fundamental period T is the time a structure takes to complete one cycle of vibration in its primary mode.
Common Mistakes to Avoid
- Using total building weight automatically for W is wrong because effective seismic weight follows code-specific inclusions and exclusions. Check whether storage loads, partitions, equipment, or snow loads must be included.
- Forgetting the importance factor Ie is wrong because it changes the required force level for buildings with higher risk or post-earthquake function. Always apply Ie consistently in Cs expressions.
- Selecting R from the wrong structural system is wrong because R depends on the lateral-force-resisting system and detailing requirements. A special moment frame, ordinary moment frame, and shear wall system can have very different R values.
- Ignoring the minimum Cs limit is wrong because long-period formulas can produce a base shear below the code-required lower bound. After computing Cs, compare it with all required minimum values.
- Distributing V uniformly by floor is wrong because seismic lateral force distribution depends on floor weight, height, and the exponent k. Taller and heavier upper levels usually receive larger lateral forces.
Practice Questions
- 1 A building has W = 18,000 kips and Cs = 0.085. Calculate the design base shear V.
- 2 For a structure with SDS = 0.90, R = 6, and Ie = 1.0, calculate Cs using Cs = SDS / (R / Ie).
- 3 A three-story building has lateral forces F1 = 40 kips, F2 = 70 kips, and F3 = 110 kips. What is the story shear at the first story?
- 4 Explain why a code may allow the response modification factor R to reduce elastic seismic force demand, and identify one design responsibility that comes with using a large R value.
Understanding Seismic Design Base Shear Reference
Seismic base shear begins with the expected shaking at the building site, not with the building frame. Earthquake hazard maps give rock-level motion estimates for a chosen risk level. The local soil can increase or reduce that motion.
Soft soil often lengthens and amplifies shaking, especially for some periods. Site classification therefore matters before any structural calculation begins. Engineers use the design response spectrum to connect ground motion with a building's natural vibration.
A short, stiff building usually responds most strongly at short periods. A tall, flexible building tends to respond at longer periods. This is why one spectral value cannot describe every building.
The response modification factor reflects a major design idea. Buildings are not expected to remain completely elastic during a severe earthquake. Approved structural systems can yield in controlled locations and dissipate energy through repeated cycles of motion.
The factor reduces the elastic force demand used in design, but it is earned through strict detailing rules. A frame assigned a larger factor needs connections, members, joints, collectors, and foundations that can deform without sudden failure. Students should not treat this factor as a simple discount.
It represents expected inelastic behavior, tested performance, redundancy requirements, and limits on structural irregularity. The importance factor moves in the other direction for buildings whose continued operation matters more after an earthquake.
The estimated period needs careful judgment because it has a strong effect on calculated force. A period based only on height gives a consistent starting point, but a more detailed analysis may predict a different value. Codes commonly place limits on the period used for force calculation.
Without a limit, an overly flexible computer model could produce a long period and unrealistically low base shear. This check is especially important when modeling cracked concrete, stiff masonry infills, diaphragm flexibility, and soil support.
Effective seismic weight deserves the same care. A missing rooftop unit, heavy facade, permanent equipment load, or required share of stored material changes inertia forces throughout the structure.
After finding the total lateral demand, engineers must place it through the height of the building. Upper levels usually receive a larger share because they are farther from the ground and move more during vibration. The resulting story shear grows toward the base as forces from floors above accumulate.
This affects brace forces, wall shear, frame member actions, diaphragm forces, collector design, and foundation connections. A real building rarely behaves as a perfectly centered stack of floors. If mass or stiffness is uneven, the floor can twist.
Engineers then check torsion, weak stories, discontinuous walls, soft ground floors, and load paths around openings. Base shear is therefore only the beginning. Safe seismic design depends on carrying that force continuously from every floor to the foundation while allowing the structure to deform in a predictable way.
