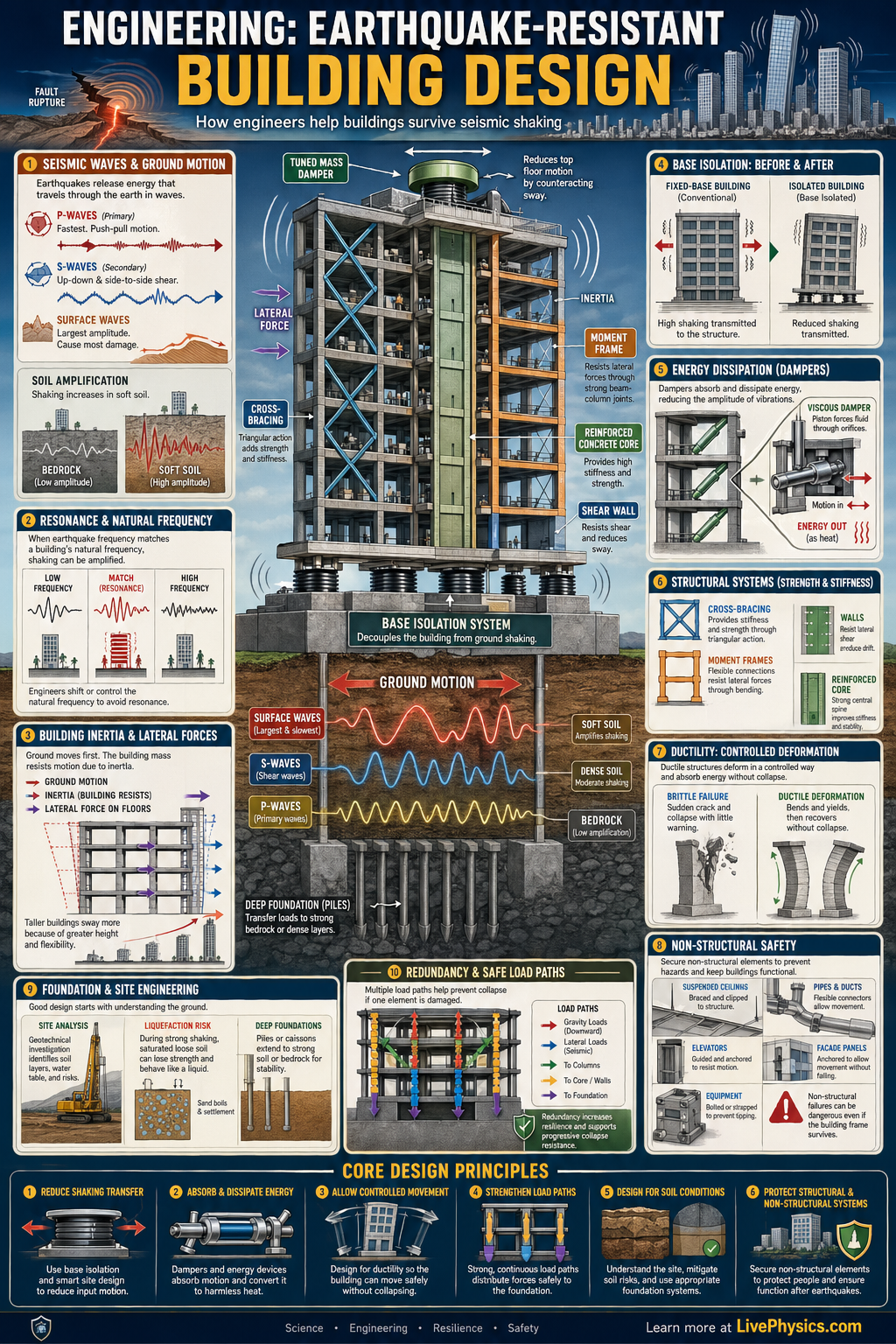

Earthquake-Resistant Building Design
Base Isolation, Dampers, and Flexible Frames
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets
Earthquake-resistant building design helps structures survive ground shaking without collapsing and protects the people inside. Engineers cannot stop earthquakes, but they can control how a building moves, bends, and absorbs energy during seismic events. This field matters because good design reduces deaths, injuries, repair costs, and long-term disruption in earthquake-prone regions. Modern seismic engineering combines physics, materials science, geology, and structural design.
A building responds to earthquake motion because the ground suddenly accelerates and the structure has inertia, which resists that motion. Engineers reduce damage by making load paths clear, adding ductile structural elements, strengthening connections, and sometimes isolating the building from the ground. Systems such as shear walls, cross-bracing, moment frames, dampers, and base isolators help control lateral forces and limit dangerous deformation. The final design must also account for soil conditions, resonance, building mass, and how different parts of the structure interact during shaking.
Key Facts
- Seismic force is related to mass and acceleration: F = ma.
- Building weight is W = mg, and heavier buildings usually experience larger inertial forces during shaking.
- A simple estimate of natural period is T = 2π√(m/k), where m is mass and k is stiffness.
- Base isolation increases the building period T and reduces transmitted acceleration from the ground.
- Damping reduces vibration amplitude by dissipating energy as heat or deformation.
- Lateral load-resisting systems include shear walls, braced frames, and moment-resisting frames.
Vocabulary
- Base isolation
- A design method that places flexible bearings or sliders between a building and its foundation to reduce the motion transferred from the ground.
- Ductility
- The ability of a material or structure to deform significantly without suddenly breaking.
- Shear wall
- A stiff vertical wall that resists sideways forces and helps keep a building stable during wind or earthquakes.
- Resonance
- A condition in which earthquake shaking matches a building's natural frequency and causes larger vibrations.
- Damping
- The process by which vibration energy is removed from a structure, reducing motion over time.
Common Mistakes to Avoid
- Assuming stronger always means safer, which is wrong because a very stiff but brittle building can crack or fail suddenly instead of deforming safely.
- Ignoring the soil under the building, which is wrong because soft soil, liquefaction risk, and uneven ground motion can greatly increase damage.
- Treating earthquake force as only a vertical load, which is wrong because seismic design mainly focuses on lateral motion and overturning effects.
- Forgetting connection details, which is wrong because even strong beams and columns can fail if joints, anchors, and reinforcement are poorly designed.
Practice Questions
- 1 A 2.0 × 10^6 kg building experiences horizontal ground acceleration of 0.30 m/s^2. Calculate the horizontal inertial force on the building using F = ma.
- 2 A simplified building model has mass m = 5.0 × 10^5 kg and lateral stiffness k = 2.0 × 10^7 N/m. Estimate its natural period using T = 2π√(m/k).
- 3 Two buildings have the same height and mass, but one uses brittle unreinforced walls while the other uses ductile moment frames with dampers. Explain which building is likely to perform better in a strong earthquake and why.
