Special Right Triangles (30-60-90 and 45-45-90) cheat sheet - grade 8-11

Click image to open full size

Math Grade 8-11

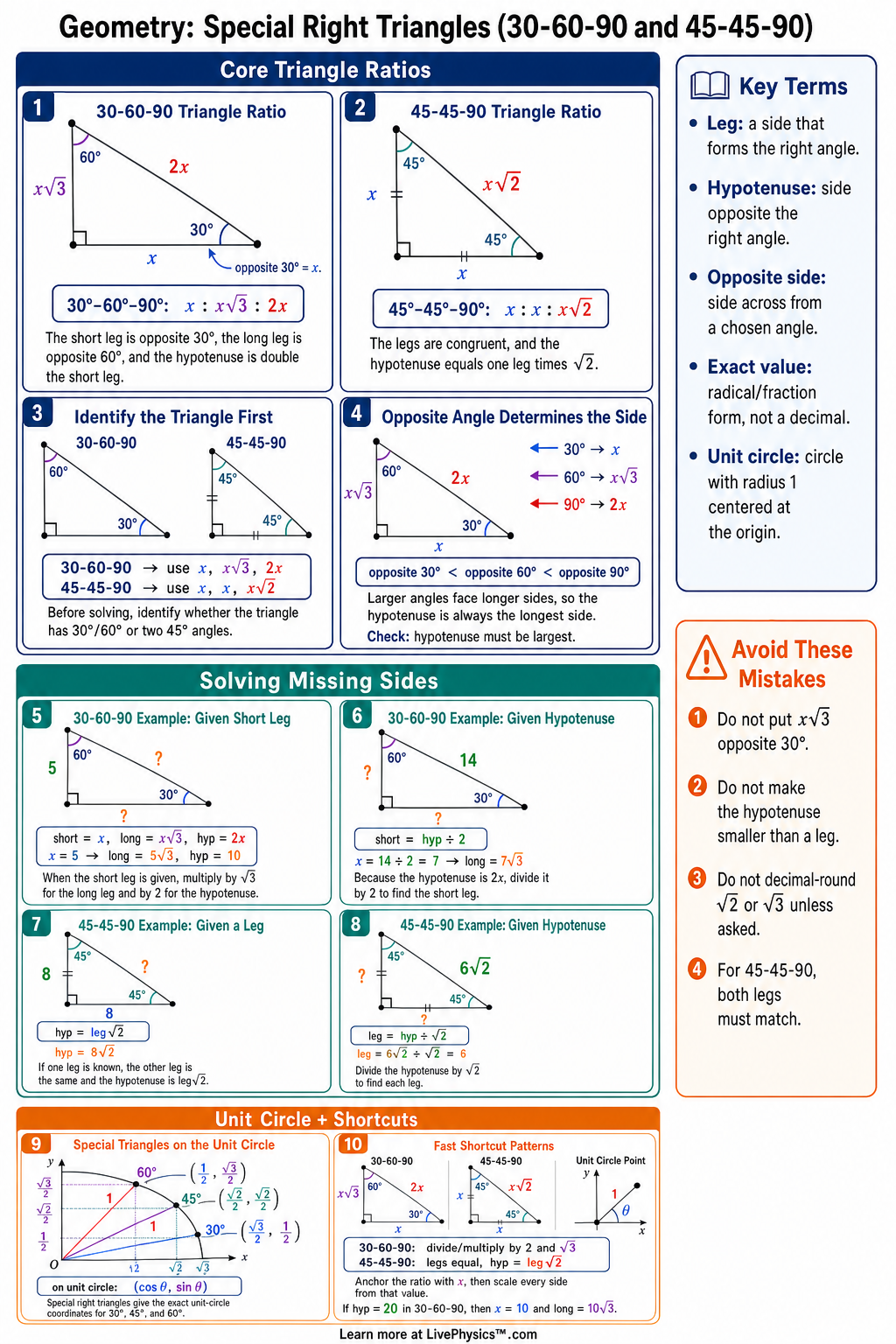

Special Right Triangles (30-60-90 and 45-45-90) Cheat Sheet

A printable reference covering 30-60-90 ratios, 45-45-90 ratios, hypotenuse relationships, leg relationships, and exact radical lengths for grades 8-11.

TopicsTrigonometryRatios and ProportionsShapesMeasurementMathematics
Download PNG

Related Tools

Related Labs

Related Worksheets

Related Infographics

Study as Flashcards

Special right triangles are right triangles with angle measures that create predictable side length ratios. This cheat sheet covers the two most important types, 30∘30^\circ-60∘60^\circ-90∘90^\circ and 45∘45^\circ-45∘45^\circ-90∘90^\circ triangles. Students use these patterns to find missing side lengths quickly without needing a calculator.

These triangles also appear often in geometry proofs, trigonometry, coordinate geometry, and standardized tests.

In a 45∘45^\circ-45∘45^\circ-90∘90^\circ triangle, the legs are equal and the hypotenuse is 2\sqrt{2} times a leg. In a 30∘30^\circ-60∘60^\circ-90∘90^\circ triangle, the short leg, long leg, and hypotenuse follow the ratio 1:3:21:\sqrt{3}:2. The shortest side is always across from 30∘30^\circ, and the longest side is always the hypotenuse. Knowing which side you are given helps you multiply or divide by 2\sqrt{2}, 3\sqrt{3}, or 22 correctly.

Key Facts

  • In a 45∘45^\circ-45∘45^\circ-90∘90^\circ triangle, the side ratio is x:x:x2x:x:x\sqrt{2}.
  • In a 45∘45^\circ-45∘45^\circ-90∘90^\circ triangle, if each leg is xx, then the hypotenuse is x2x\sqrt{2}.
  • In a 45∘45^\circ-45∘45^\circ-90∘90^\circ triangle, if the hypotenuse is hh, then each leg is h2=h22\frac{h}{\sqrt{2}}=\frac{h\sqrt{2}}{2}.
  • In a 30∘30^\circ-60∘60^\circ-90∘90^\circ triangle, the side ratio is x:x3:2xx:x\sqrt{3}:2x.
  • In a 30∘30^\circ-60∘60^\circ-90∘90^\circ triangle, the short leg xx is across from 30∘30^\circ.
  • In a 30∘30^\circ-60∘60^\circ-90∘90^\circ triangle, the long leg x3x\sqrt{3} is across from 60∘60^\circ.
  • In a 30∘30^\circ-60∘60^\circ-90∘90^\circ triangle, the hypotenuse 2x2x is twice the short leg.
  • The Pythagorean Theorem a2+b2=c2a^2+b^2=c^2 confirms both special right triangle patterns.

Vocabulary

Right Triangle
A triangle with one angle measuring 90∘90^\circ.
Hypotenuse
The longest side of a right triangle, located across from the 90∘90^\circ angle.
Leg
Either of the two sides that form the right angle in a right triangle.
45-45-90 Triangle
An isosceles right triangle with angles 45∘45^\circ, 45∘45^\circ, and 90∘90^\circ and side ratio x:x:x2x:x:x\sqrt{2}.
30-60-90 Triangle
A right triangle with angles 30∘30^\circ, 60∘60^\circ, and 90∘90^\circ and side ratio x:x3:2xx:x\sqrt{3}:2x.
Radical Form
An exact form using a square root, such as 636\sqrt{3}, instead of a rounded decimal.

Common Mistakes to Avoid

  • Using the same ratio for both triangle types is wrong because 45∘45^\circ-45∘45^\circ-90∘90^\circ triangles use x:x:x2x:x:x\sqrt{2}, while 30∘30^\circ-60∘60^\circ-90∘90^\circ triangles use x:x3:2xx:x\sqrt{3}:2x.
  • Putting the short leg across from 60∘60^\circ is wrong because in a 30∘30^\circ-60∘60^\circ-90∘90^\circ triangle, the short leg xx is always across from 30∘30^\circ.
  • Multiplying by 2\sqrt{2} to find a leg from the hypotenuse in a 45∘45^\circ-45∘45^\circ-90∘90^\circ triangle is wrong because you should divide: x=h2x=\frac{h}{\sqrt{2}}.
  • Forgetting that the hypotenuse is the longest side is wrong because neither leg can be longer than the side across from the 90∘90^\circ angle.
  • Rounding radical answers too early is wrong because exact answers such as 434\sqrt{3} or 727\sqrt{2} are usually required in geometry.

Practice Questions

  1. 1 A 45∘45^\circ-45∘45^\circ-90∘90^\circ triangle has legs of length 66. Find the hypotenuse.
  2. 2 A 30∘30^\circ-60∘60^\circ-90∘90^\circ triangle has a short leg of length 55. Find the long leg and hypotenuse.
  3. 3 A 45∘45^\circ-45∘45^\circ-90∘90^\circ triangle has a hypotenuse of 10210\sqrt{2}. Find the length of each leg.
  4. 4 Explain how you can decide whether to use the ratio x:x:x2x:x:x\sqrt{2} or x:x3:2xx:x\sqrt{3}:2x when solving a special right triangle.

Understanding Special Right Triangles (30-60-90 and 45-45-90)

These patterns come from building larger familiar shapes. A forty five degree right triangle appears when a square is cut along a diagonal. The diagonal creates two matching triangles, so their two shorter sides must match.

The diagonal is longer because it crosses the square from corner to corner. The Pythagorean theorem explains its exact length.

If each side of the square has length one, the diagonal has length square root of two. Scaling the square by any factor scales every triangle side by that same factor.

A thirty degree, sixty degree, ninety degree triangle comes from cutting an equilateral triangle in half from a vertex to the midpoint of the opposite side. The cut makes a right angle and splits the top angle into two thirty degree angles. It also divides the base into equal halves.

This construction explains why the side opposite thirty degrees is half the original equilateral side. The altitude is found with the Pythagorean theorem, producing a length involving square root of three. Knowing the origin of the pattern can help you rebuild it if you forget it during a test.

The main skill is identifying sides by their positions, not by how they look in a drawing. First locate the right angle. The side directly across from it is always the hypotenuse, even if it is drawn vertically or near the bottom of the page.

Then find the side opposite each acute angle. In a thirty degree triangle, the short leg is determined by the angle opposite it.

In a forty five degree triangle, both acute angles match, so the opposite legs match. Rotate a triangle in your mind or redraw it with clear labels when the picture feels confusing.

Exact lengths matter because rounding too soon can create errors later. A length such as five times square root of three is a precise value, while a decimal is only an approximation. Keep square roots in exact form through most geometry work.

When dividing by a square root, rewrite the result so there is no square root in the denominator. For example, a hypotenuse of ten in a forty five degree right triangle gives each leg as five times square root of two. These triangles appear in square diagonals, roof braces, ramps, triangular road signs, coordinate grid distances, and trigonometry.

A reliable habit is to check whether your answer makes sense. The hypotenuse must be the longest side, and the side across the larger acute angle must be longer than the side across the smaller acute angle.
