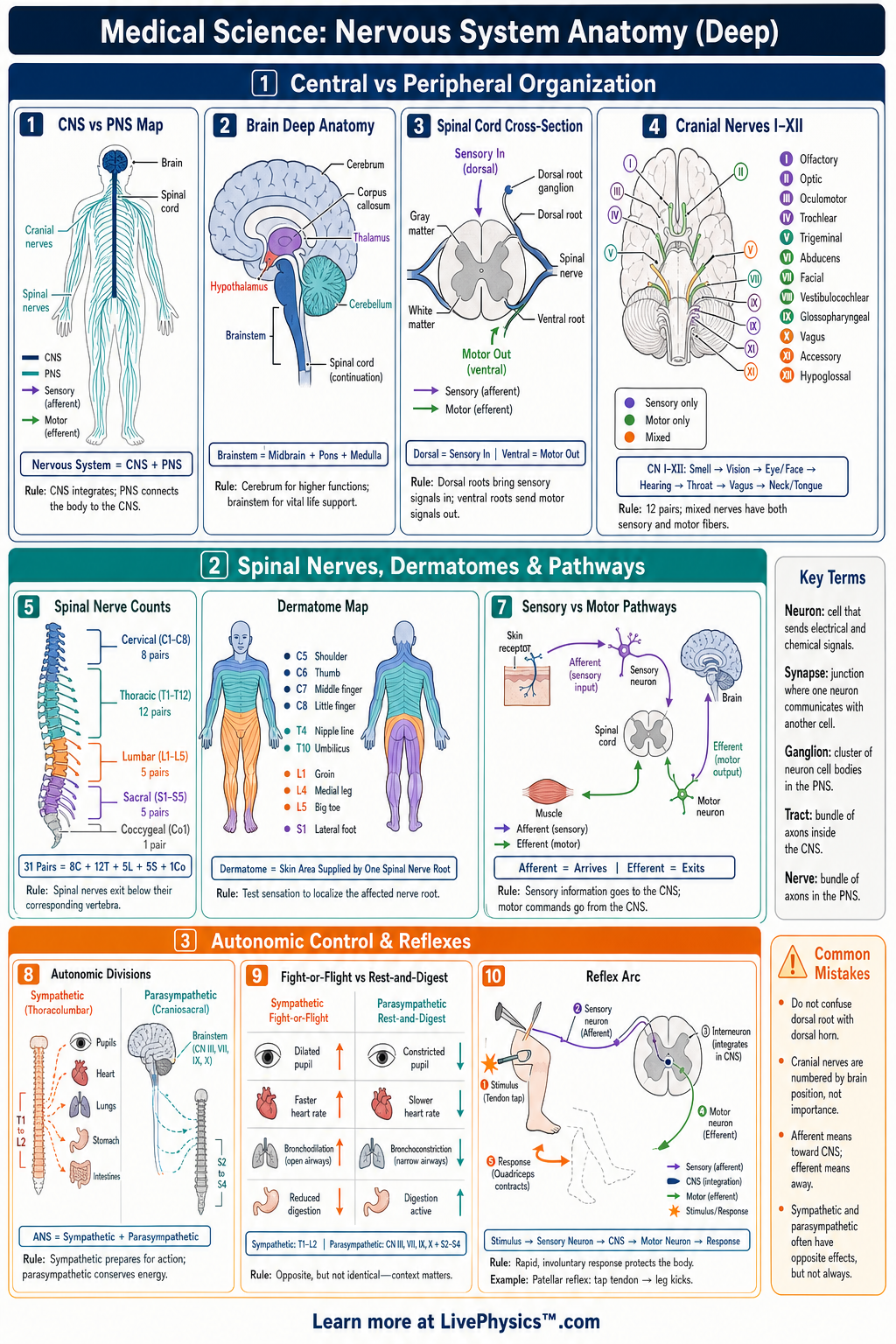

Nervous System Anatomy (Deep) Cheat Sheet
A printable reference covering CNS versus PNS organization, cranial nerves, spinal nerves, dermatomes, autonomic control, and reflex arcs for grades 9-12.
Related Labs
Related Worksheets
This cheat sheet covers deep nervous system anatomy, including how the brain, spinal cord, nerves, and autonomic pathways are organized. Students need this reference because nervous system terminology can be dense, and structure is closely tied to function. It helps connect major anatomical divisions with clinical ideas such as dermatomes, reflexes, and nerve pathways. The layout supports quick review for biology, anatomy, physiology, and medical science courses. The core ideas include CNS = brain + spinal cord and PNS = cranial nerves + spinal nerves + ganglia. Spinal nerves are mixed nerves that carry sensory input through dorsal roots and motor output through ventral roots. The autonomic nervous system controls involuntary functions through sympathetic and parasympathetic divisions. Reflex arcs follow a basic pathway: receptor, sensory neuron, integration center, motor neuron, and effector.
Key Facts
- The central nervous system is CNS = brain + spinal cord, and it processes information, coordinates responses, and stores memory.
- The peripheral nervous system is PNS = cranial nerves + spinal nerves + peripheral ganglia, and it carries signals between the CNS and the body.
- A spinal nerve forms when dorsal root sensory fibers join ventral root motor fibers, so spinal nerve = sensory + motor.
- There are 31 pairs of spinal nerves: 8 cervical, 12 thoracic, 5 lumbar, 5 sacral, and 1 coccygeal.
- A dermatome is an area of skin mainly supplied by one spinal nerve root, such as C6 near the thumb and L5 near the big toe.
- The basic reflex arc is receptor -> sensory neuron -> spinal cord integration center -> motor neuron -> effector.
- Sympathetic output is thoracolumbar, mainly from T1 to L2, and prepares the body for fight or flight responses.
- Parasympathetic output is craniosacral, mainly from cranial nerves III, VII, IX, X and sacral levels S2 to S4, and supports rest and digestion.
Vocabulary
- Central nervous system
- The brain and spinal cord, which receive, process, and coordinate nervous system information.
- Peripheral nervous system
- All nervous tissue outside the brain and spinal cord, including cranial nerves, spinal nerves, and ganglia.
- Dermatome
- A region of skin that receives sensory input mainly from one spinal nerve root.
- Ganglion
- A cluster of neuron cell bodies located outside the central nervous system.
- Reflex arc
- A fast neural pathway that produces an automatic response to a stimulus, often through the spinal cord.
- Autonomic nervous system
- The division of the nervous system that controls involuntary body functions such as heart rate, digestion, and pupil size.
Common Mistakes to Avoid
- Confusing dorsal and ventral roots is wrong because dorsal roots carry sensory input into the spinal cord, while ventral roots carry motor output away from it.
- Calling every nerve either sensory or motor is wrong because most spinal nerves are mixed and contain both sensory and motor fibers.
- Assuming dermatomes are perfectly separate is wrong because neighboring dermatomes overlap, so loss of sensation may not match one exact line.
- Mixing up sympathetic and parasympathetic origins is wrong because sympathetic output is T1 to L2, while parasympathetic output is craniosacral.
- Thinking reflexes always require conscious brain processing is wrong because many reflexes are integrated in the spinal cord before the brain is fully aware.
Practice Questions
- 1 A patient has numbness around the thumb. Which dermatome is most likely involved: C6, T4, L5, or S2?
- 2 How many total pairs of spinal nerves are there if there are 8 cervical, 12 thoracic, 5 lumbar, 5 sacral, and 1 coccygeal pair?
- 3 Trace the pathway of a withdrawal reflex when a person touches a hot surface, using receptor, sensory neuron, integration center, motor neuron, and effector.
- 4 Explain why damage to a spinal nerve can affect both sensation and movement, while damage to only a dorsal root mainly affects sensation.
