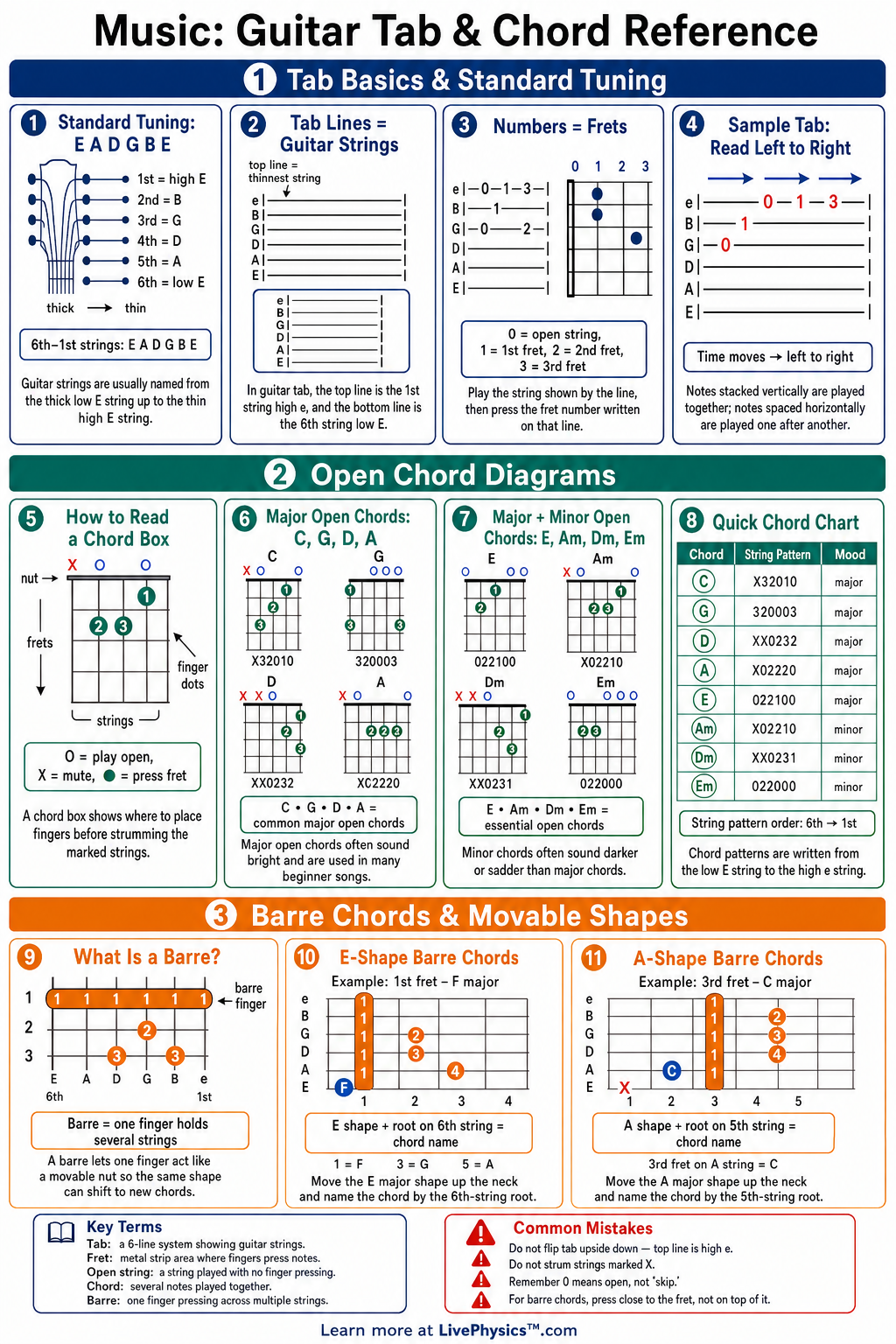

This cheat sheet covers the basic symbols and diagrams guitarists use to read tabs and chord charts. Students need it because guitar music often uses tablature instead of standard notation, especially for songs, riffs, and practice exercises. A clear reference helps players find the right string, fret, finger, and rhythm pattern quickly.
It is useful for beginners learning their first songs and for experienced students reviewing common notation rules.
Key Facts
- Standard guitar tuning from the lowest pitched string to the highest pitched string is E, A, D, G, B, E.
- In guitar tab, the top line represents the thinnest high E string and the bottom line represents the thickest low E string.
- A tab number tells which fret to press, so 0 means play the open string and 3 means press the third fret.
- Numbers stacked vertically in tab are played at the same time as a chord or double stop.
- Numbers written left to right in tab are played in time order from left to right.
- In a chord diagram, vertical lines are strings, horizontal lines are frets, dots show finger placement, X means do not play the string, and O means play it open.
- Common open chord fingerings include Em as 022000, G as 320003, C as x32010, D as xx0232, Am as x02210, and E as 022100.
- Basic strumming symbols often use D for downstroke, U for upstroke, and rhythm counts such as 1 and 2 and 3 and 4 and.
Vocabulary
- Tablature
- A guitar notation system that shows strings as lines and fret numbers as notes to play.
- Fret
- A metal strip on the guitar neck, also used to name the spaces where fingers press the strings.
- Open string
- A string played without pressing any fret, shown as 0 in guitar tab or O in a chord diagram.
- Chord diagram
- A visual grid that shows where to place fingers to play a chord on the guitar neck.
- Downstroke
- A strum that moves the pick or fingers downward from the lower pitched strings toward the higher pitched strings.
- Finger number
- A number used in chord charts where 1 is index, 2 is middle, 3 is ring, and 4 is pinky.
Common Mistakes to Avoid
- Reading the tab lines upside down is wrong because the top tab line is the high E string, not the low E string.
- Treating every number as a finger number is wrong because tab numbers show frets, while chord diagram finger numbers show which finger to use.
- Playing strings marked X in a chord diagram is wrong because X means that string should be muted or avoided.
- Confusing 0 with no sound is wrong because 0 means play the open string, while silence is usually shown with a rest or omitted note.
- Ignoring stacked tab numbers is wrong because numbers aligned vertically should be played together, not one after another.
Practice Questions
- 1 In standard tuning, what are the six guitar strings from lowest pitch to highest pitch?
- 2 If a tab shows 0, 2, and 3 on the same string from left to right, which frets do you play in order?
- 3 For the chord shape x32010, which strings are not played and which strings are played open?
- 4 Why is guitar tablature helpful for beginners even when it does not show every detail of rhythm?
Understanding Guitar Tab & Chord Reference
A guitar changes pitch by changing the vibrating length of a string. Pressing a string behind a fret makes its active length shorter, which makes the note higher. The frets are arranged in small equal pitch steps called semitones.
Moving one fret toward the guitar body raises a note by one semitone. This pattern matters because the same note can often be played in more than one place. A player chooses a position based on tone, hand comfort, and what notes come next.
Thick strings tend to sound lower and fuller. Thin strings sound brighter. Listening for these differences helps students make musical choices instead of treating a tab as a list of button presses.
Tab shows where to place the hands, but it often gives limited information about note length and rhythm. Two versions of the same tab can sound very different if the player changes the timing, volume, or space between notes. Students should listen to a recording whenever possible and tap a steady beat before playing.
The left to right spacing in tab can suggest timing, but it is not always exact. Standard music notation gives more precise rhythm information, while tab is especially useful for guitar specific techniques.
These include slides, bends, hammer ons, pull offs, vibrato, palm muting, and harmonics. Each technique changes the sound after the note is picked, so the hands must do more than reach the correct fret.
Chord shapes work because several strings produce notes that fit together. A good chord requires clean pressure from the fretting hand and controlled picking or strumming from the other hand. Place a fingertip close behind the fret, not directly on top of it.
Use enough pressure to stop buzzing, but avoid squeezing as hard as possible. Keep the thumb roughly behind the neck for balance. When a chord sounds wrong, test one string at a time.
This quickly reveals a muted string, an accidental touch from another finger, or a string that should not have been played. This skill is useful in class ensembles, garage bands, worship groups, and any setting where chords support a singer.
Strumming is mainly a timing skill. The arm can keep moving in a steady down and up motion even when the pick misses the strings on some movements. That continuous motion makes syncopated patterns easier because the hand stays connected to the beat.
Start slowly with a metronome or a drum track. Count evenly and make the downstrokes line up with the main beats. Add upstrokes only after the pulse feels stable.
A chord change should be prepared before the exact moment it is needed. Beginners often stop their strumming hand while searching for the next shape.
Practising two chords back and forth for one minute builds smoother movement. Accuracy comes first, then speed and expression.
