The guitar fretboard is a repeating map of musical pitch laid out across six strings and many frets. Learning the note names on this map helps students connect music theory to real playing, including scales, chords, and melody. Instead of memorizing isolated positions, players can recognize patterns that repeat across the instrument.
This makes it easier to transpose music, improvise, and understand how songs are built.
A standard guitar in common tuning uses the open strings E, A, D, G, B, and E from lowest to highest pitch. Each fret raises the pitch by one semitone, so moving up 12 frets brings you to the same note name one octave higher. Because the strings are mostly tuned in fourths, note shapes often repeat in predictable ways across the neck, with one important shift between the G and B strings.

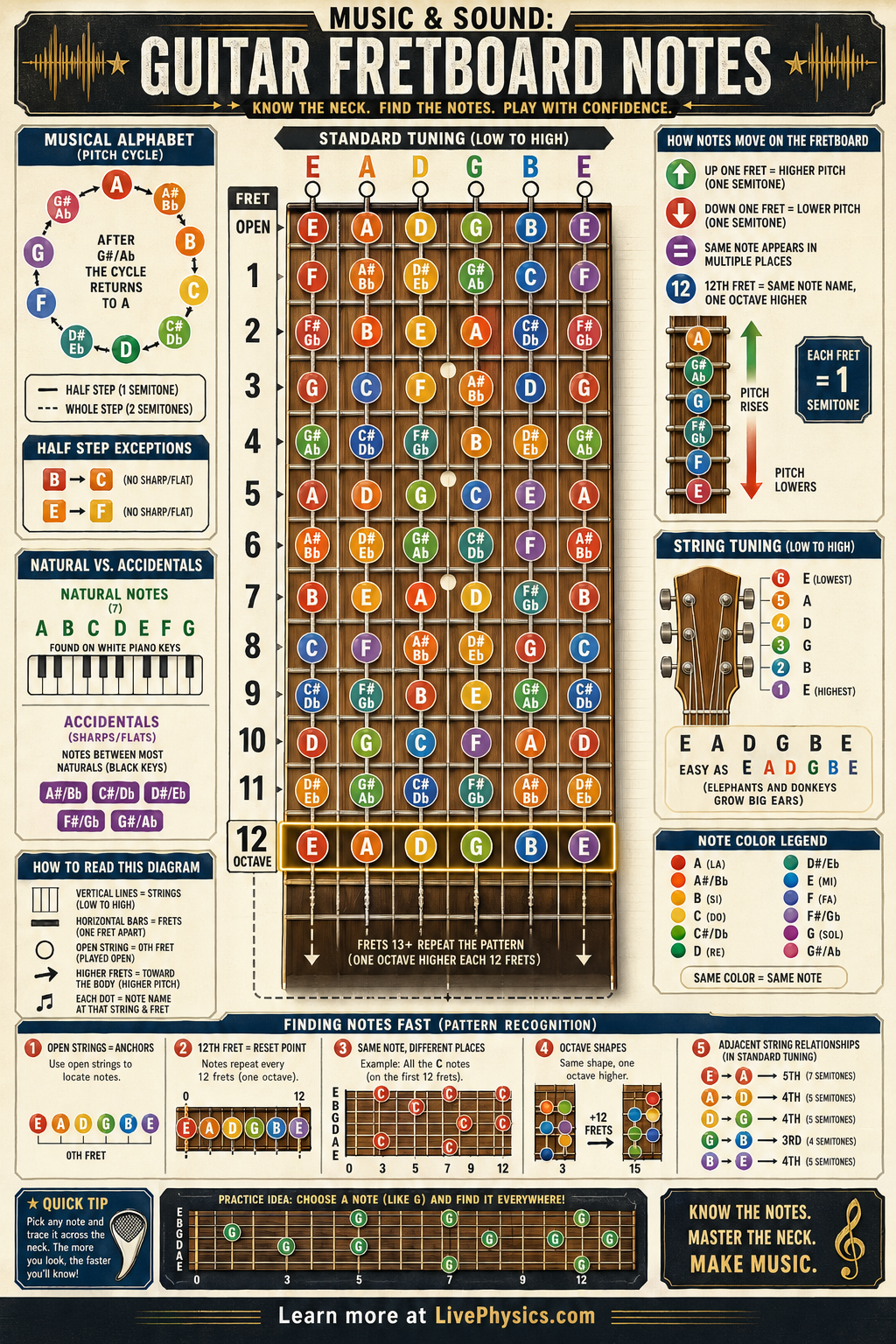

A clear fretboard note map shows where every pitch class appears and how octaves and intervals connect visually.
Understanding Guitar Fretboard Notes
Frets do more than mark places for the fingers. Pressing a string against a fret creates a new vibrating length between that fret and the bridge. A shorter vibrating length produces a higher frequency, so the sound rises as the hand moves toward the guitar body.
The twelfth fret sits near the midpoint of the string. It gives a pitch whose frequency is twice that of the open string, which the ear hears as an octave. Modern guitars divide this distance using equal temperament.
Each step changes frequency by the same multiplying amount. This lets the instrument play reasonably well in every key. It also explains why fret spacing becomes visibly smaller near the body.
Note locations become more useful when they are understood as intervals. An interval is the distance in pitch between two notes. A player who knows where a root note is can find a nearby third, fifth, or octave without naming every fret one by one.
This is how many chord and scale shapes work. The usual spacing between neighboring strings makes these shapes fairly regular. The change between the G string and B string shifts familiar shapes by one fret.
Beginners often think they have made a mistake at this point. The shape has changed because the tuning relationship changed. Paying attention to this exception prevents many errors when moving a pattern across the strings.
A practical starting method is to learn strong landmarks first. The open strings are one set of landmarks. Natural notes on the low E and A strings are especially helpful because many common chords use roots on these strings.
The fifth and seventh frets are easy physical reference points, while the twelfth fret is a major pitch landmark. From a known note, count forward or backward through the musical alphabet. Remember that there is no sharp or flat between B and C, or between E and F.
A note called C sharp and a note called D flat sound the same on a standard guitar. The different names matter when reading music in different keys, but the fret position is shared.
Fretboard knowledge appears in ordinary playing tasks. A guitarist uses it to locate the root of a chord, move a riff into a new key, follow a bass line, or find melody notes by ear. It helps when playing with singers because a song may need to be raised or lowered to fit a voice.
Learn notes in small areas instead of trying to memorize the whole neck at once. Say the note name aloud as you play it, then test yourself in a random order. Listen carefully too.
A correctly named note can still sound wrong if the string is out of tune, pressed too hard, or bent slightly by the finger. Good navigation combines visual patterns, note names, and accurate listening.
Key Facts
- Standard tuning from lowest to highest string is E2, A2, D3, G3, B3, E4.
- Moving up 1 fret increases pitch by 1 semitone.
- 12 semitones = 1 octave.
- Same note name repeats every 12 frets: note at fret n = note at fret n + 12.
- Natural notes are A, B, C, D, E, F, G and accidentals fill the semitone steps between most pairs.
- Adjacent strings are usually tuned a perfect fourth apart, 5 semitones, except G to B, which is a major third, 4 semitones.
Vocabulary
- Fretboard
- The fretboard is the front surface of the guitar neck where the strings are pressed to change pitch.
- Semitone
- A semitone is the smallest pitch step in standard Western tuning and equals one fret on a guitar.
- Octave
- An octave is the interval between one note and the next note with the same name at double the frequency.
- Standard tuning
- Standard tuning is the common guitar tuning E, A, D, G, B, E from lowest to highest string.
- Pitch class
- A pitch class is a note name such as C or F sharp regardless of which octave it is in.
Common Mistakes to Avoid
- Confusing string order, because students mix up lowest pitch with highest physical position. The 6th string is the lowest sounding string even though it may appear at the top in many diagrams.
- Forgetting that each fret is one semitone, because students skip note names unevenly. This causes wrong note labeling and incorrect scale patterns.
- Assuming all adjacent strings have the same interval, because students ignore the G to B tuning change. This shifts note shapes and octave patterns if not accounted for.
- Memorizing only fret numbers without note names, because students rely on shapes alone. This makes transposition and theory understanding much harder.
Practice Questions
- 1 In standard tuning, what note is on the 5th fret of the 6th string if the open string is E and each fret raises the pitch by one semitone?
- 2 What note is on the 3rd fret of the 2nd string in standard tuning, where the open 2nd string is B?
- 3 A student says that a shape played on the D and G strings can always be moved to the G and B strings without changing anything. Explain why this is not always correct.
