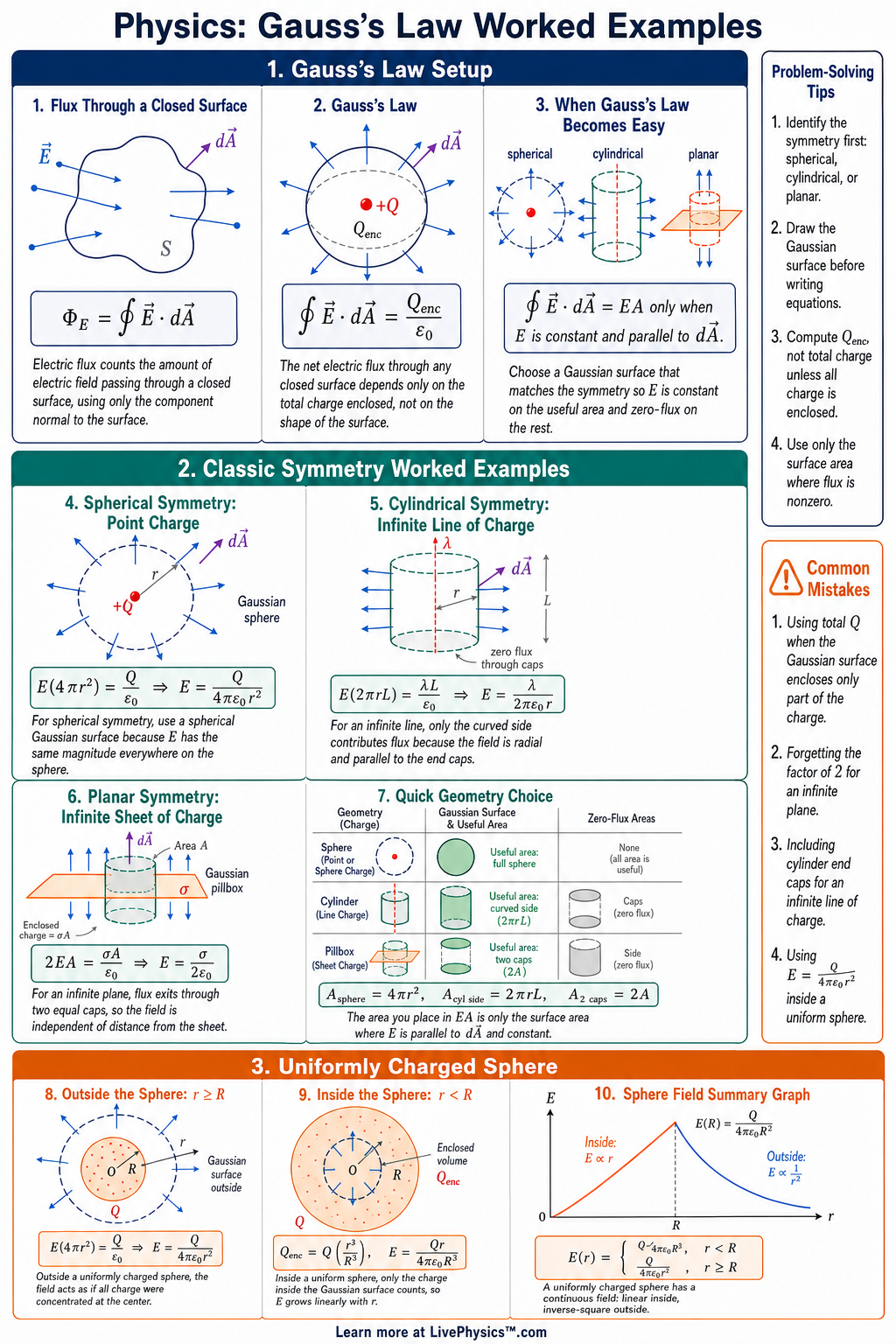

Gauss's law connects electric flux through a closed surface to the charge enclosed inside that surface. This cheat sheet helps students recognize when Gauss's law is the fastest way to find an electric field. It focuses on worked-example patterns for spherical, cylindrical, and planar symmetry.
These patterns are important for AP Physics, honors physics, and early college electromagnetism.
Key Facts
- Gauss's law states that the total electric flux through a closed surface is .
- Electric flux through a flat surface in a uniform field is , where is the angle between and the area vector.
- For a point charge or spherical charge distribution, choose a spherical Gaussian surface so .
- Outside a spherically symmetric charge distribution, the field is , as if all charge were at the center.
- For a long charged cylinder or line charge, choose a cylindrical Gaussian surface so and .
- For an infinite plane sheet of charge, a pillbox Gaussian surface gives and .
- For a conductor in electrostatic equilibrium, the electric field inside the conducting material is and any excess charge lies on the surface.
- Gauss's law is always true, but it is most useful when symmetry makes constant in magnitude on the Gaussian surface or zero on parts of it.
Vocabulary
- Electric flux
- Electric flux measures how much electric field passes through a surface and is calculated by .
- Gaussian surface
- A Gaussian surface is an imaginary closed surface chosen to make easier to evaluate.
- Enclosed charge
- Enclosed charge is the net charge inside the Gaussian surface, written as .
- Permittivity of free space
- The permittivity of free space is the constant in Gauss's law.
- Surface charge density
- Surface charge density is charge per unit area, written as .
- Line charge density
- Line charge density is charge per unit length, written as .
Common Mistakes to Avoid
- Using total charge instead of enclosed charge is wrong because Gauss's law uses only inside the chosen closed surface.
- Forgetting the dot product in is wrong because only the component of perpendicular to the surface contributes to flux.
- Choosing a Gaussian surface without symmetry is unhelpful because may not be constant, so cannot be simplified easily.
- Using for a single infinite sheet is wrong because one isolated sheet has on each side.
- Including flux through the flat ends of a cylindrical Gaussian surface for a line charge is wrong because is parallel to those end surfaces, so there.
Practice Questions
- 1 A point charge of is at the center of a sphere with radius . What is the electric flux through the sphere?
- 2 An infinite line of charge has . Find the electric field magnitude at from the line.
- 3 An infinite sheet has surface charge density . What is the electric field magnitude on one side of the sheet?
- 4 A charge is outside a closed empty metal box. Explain why the net electric flux through the box is even though the electric field at points on the box may not be .
Understanding Gauss's Law Worked Examples
The main skill in worked examples is choosing a surface that matches the field pattern, not choosing a surface that follows the physical object exactly. A Gaussian surface is imaginary. It can pass through empty space, a conductor, or a charged material.
First identify the symmetry. A charge spread evenly around a center suggests a sphere. Charge spread along a very long wire suggests a cylinder.
Charge spread across a very large flat sheet suggests a short cylinder called a pillbox. Then decide where the field has one constant magnitude. That is the location of the useful surface.
Keep charge enclosed separate from charge present in the whole problem. A Gaussian surface only counts charge inside its boundary. For example, inside a uniformly charged solid sphere, a smaller Gaussian sphere encloses only the charge in the smaller volume.
Since volume grows with the cube of radius, the enclosed charge changes as the cube of the chosen radius. Outside the sphere, the surface encloses all of the charge, so the field follows the familiar inverse square pattern.
Charges outside a closed surface can change the field at points on that surface, but their total contribution to net flux is zero. This fact often feels strange at first, so it deserves careful attention.
The direction of the field determines which parts of the surface contribute flux. On a cylindrical surface around a line charge, the field points outward through the curved wall. It runs parallel to the flat end caps, so those caps contribute zero flux.
For a pillbox around a charged sheet, the field passes through the two flat faces. The curved side contributes zero flux because the field is parallel to it. Draw the outward area direction on every part of the surface.
This prevents a common mistake of counting an area where the field is sideways. A zero contribution does not mean the field is zero there. It means the field has no component through that piece of surface.
Conductors give important examples because charges move until electrostatic equilibrium is reached. The field within the conducting material must be zero. A Gaussian surface placed entirely inside the metal therefore has zero net flux and encloses zero net charge.
This shows why excess charge settles on the outer surface. A hollow conductor can shield its interior from outside electric fields. If a charge is placed inside a cavity, however, charge is induced on the cavity wall, and the outer surface responds too.
These ideas appear in coaxial cables, metal enclosures, lightning protection, and electrostatic painting. In exam problems, state the symmetry, name the Gaussian surface, identify the enclosed charge, and explain why each flux term is constant or zero before doing any algebra.
