In calculus, net change and total distance both come from the area under a velocity versus time graph, but they answer different physical questions. Net change tells how far the position has shifted from the starting point, including direction. Total distance tells how much ground was actually covered, no matter which way the object moved.
This distinction matters whenever motion changes direction.
If velocity stays positive, net change and total distance are the same. When velocity becomes negative, the signed area below the time axis subtracts from the signed area above it, so net change can be smaller than the total distance. Total distance is found by adding the magnitudes of all areas, which is equivalent to integrating the absolute value of velocity.

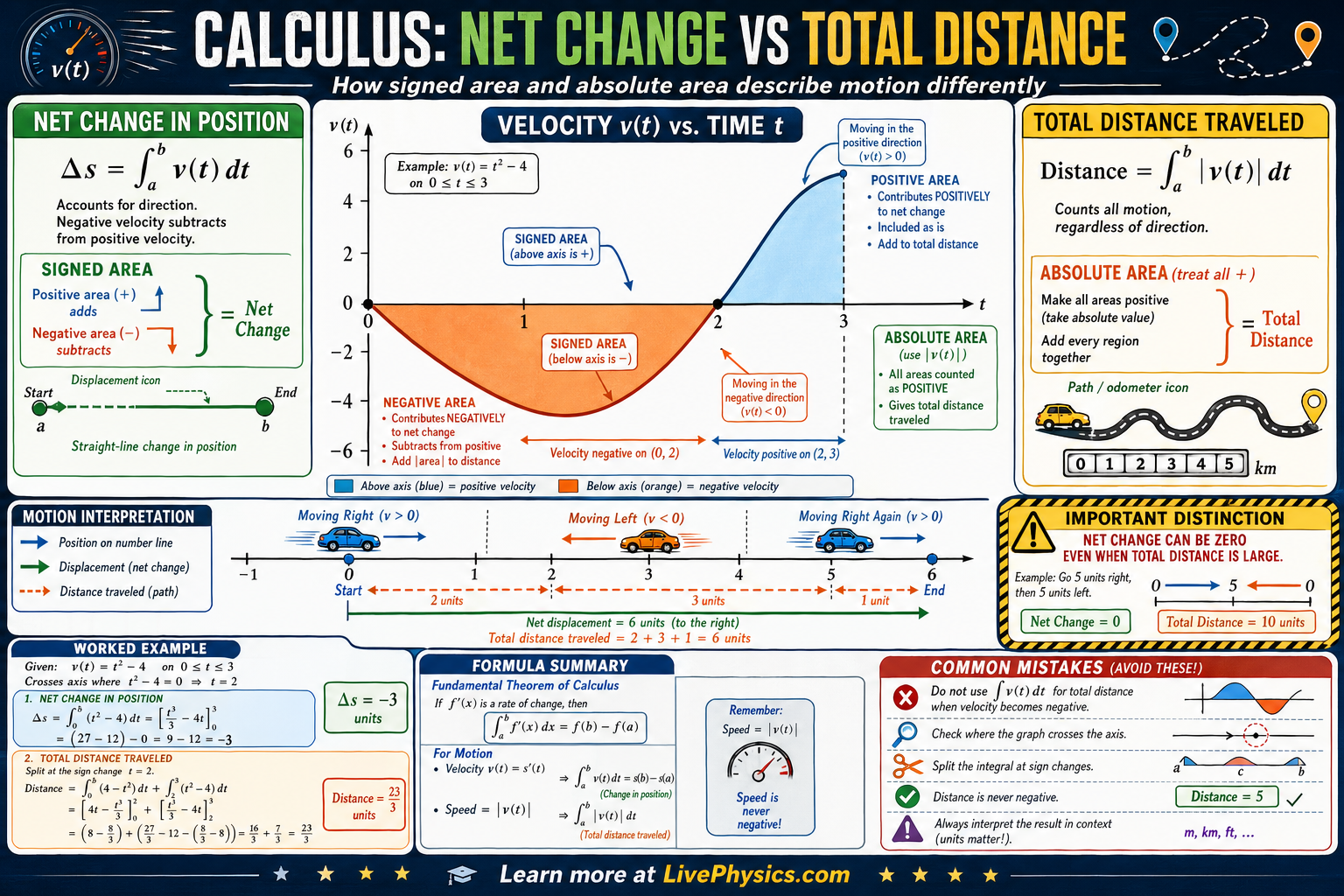

A graph that crosses the time axis is the clearest way to see the difference.
Understanding Net Change vs Total Distance
A velocity graph is really a record of rate over time. Each thin vertical strip under the graph represents a small piece of motion. Its width represents a short time interval.
Its height represents velocity during that interval. Multiplying those two quantities gives a small change in position. Calculus adds all of these small changes together.
This is why the units work out. If velocity is measured in metres per second and time is measured in seconds, the result is measured in metres. Reading units carefully is a useful check in every calculus problem involving motion.
Direction changes need special attention because a zero velocity is not always a stop for a long time. It may be only the instant when an object turns around. For example, a person can walk east, pause briefly, then walk west.
Their final location may be near where they began even though they walked a substantial route. The signed result tracks the final location relative to the start. The distance result tracks the full route.
A final signed result of zero means the starting and ending positions match. It does not mean that no motion occurred.
Graph shape affects how areas are found. A horizontal section forms a rectangle. A straight sloping section often forms a triangle or trapezoid.
A curved section may require an antiderivative, numerical approximation, or technology. When a graph crosses the time axis, find the crossing times before calculating. Those times divide the journey into separate intervals with one direction of motion on each interval.
Calculate each region carefully, keeping its direction until the final position calculation. For the full travel calculation, use each region's positive size.
A common mistake is to take the absolute value only after combining all regions. That loses information about motion that happened in opposite directions.
This idea appears beyond walking examples. A car's dashboard odometer records total distance, while a navigation app compares its current position with an earlier position to describe displacement. In science experiments, a motion sensor may produce a velocity graph that is noisy near zero.
Small fluctuations across the axis can create many apparent direction changes. Students should decide whether the data represent real reversals or measurement noise, using the scale and the situation.
When solving textbook problems, label the intervals, include units, and state clearly whether the requested answer is a change in position or a total amount traveled. Those two phrases point to different calculations even when they use the same graph.
Key Facts
- Net change in position over is .
- Total distance traveled over is .
- Area above the time axis contributes positively to the integral of .
- Area below the time axis contributes negatively to the integral of .
- If v(t) does not change sign on [a, b], then net change and total distance have the same magnitude.
- To compute total distance from a velocity graph, split the interval at times where and add absolute areas.
Vocabulary
- Net change
- The overall change in a quantity over an interval, found by adding positive and negative contributions together.
- Total distance
- The full amount of motion traveled, found by adding all movement as positive amounts.
- Velocity
- A rate of change of position that includes both speed and direction.
- Signed area
- Area counted as positive above the axis and negative below the axis.
- Absolute value
- The distance of a number from zero, so it is always nonnegative.
Common Mistakes to Avoid
- Using for total distance, which is wrong because negative velocity subtracts instead of adding to the amount traveled.
- Ignoring where the velocity graph crosses the time axis, which is wrong because sign changes determine where you must split the integral.
- Treating negative velocity as negative distance, which is wrong because distance is always nonnegative and measures amount of travel, not direction.
- Confusing position with velocity on the graph, which is wrong because the area under a velocity graph gives change in position, not the position itself.
Practice Questions
- 1 A particle has velocity for . Find the net change in position and the total distance traveled.
- 2 A velocity graph forms a triangle above the time axis from to with height , and a triangle below the time axis from to with height . Find the net change in position and the total distance traveled.
- 3 Explain why an object can have zero net change in position over a time interval but still have a positive total distance traveled.
