Gears are rotating machine elements that transfer motion, force, and power from one shaft to another. They are used in bicycles, clocks, car transmissions, and industrial machines because they can precisely change speed and torque. By choosing gear sizes carefully, engineers can make a system turn faster, slower, stronger, or with better control.
Understanding gears helps students connect rotational motion to real engineering design.

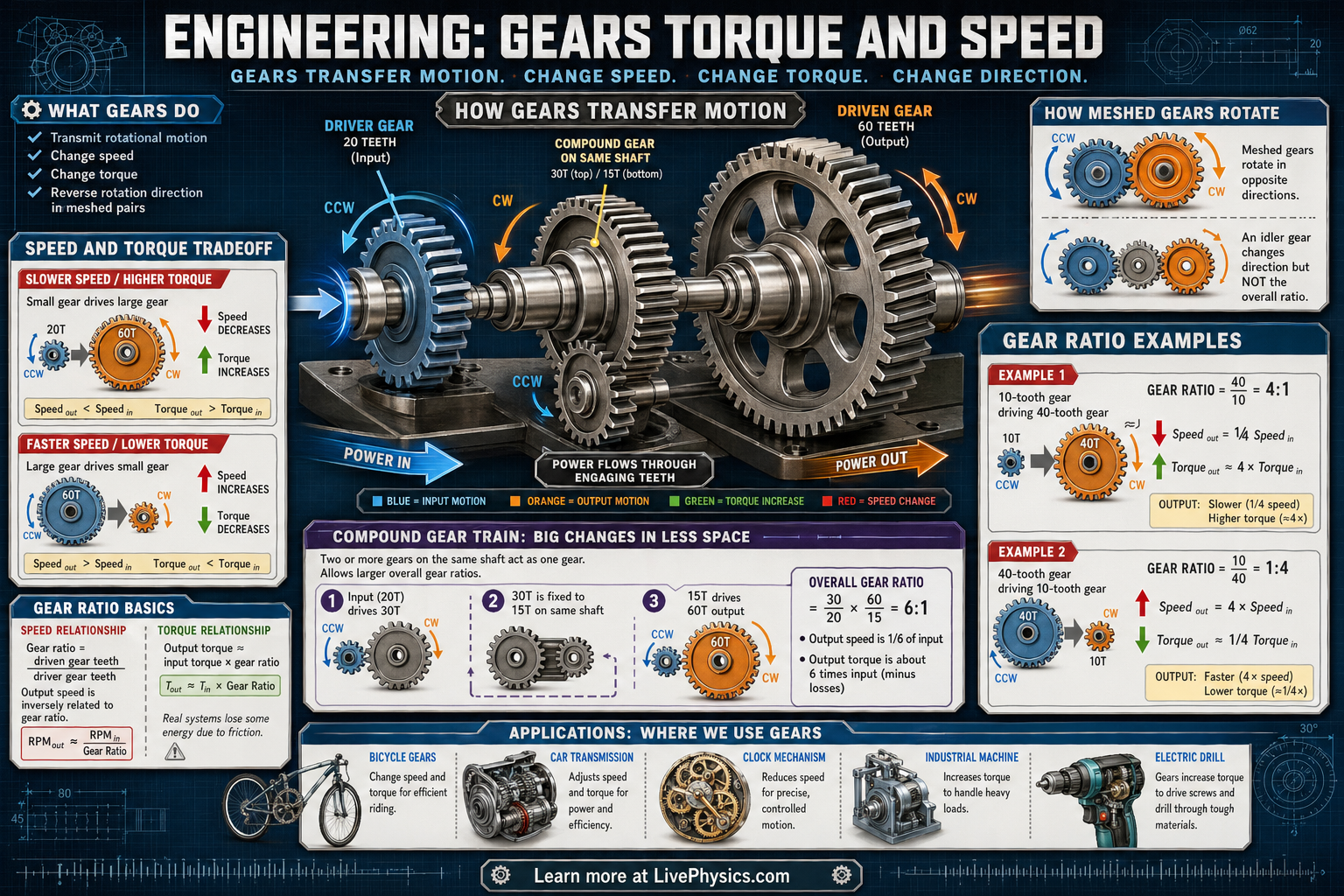

When two gears mesh, the teeth push on each other so the tangential speed at the contact point stays the same for both gears. This means a larger gear turns more slowly than a smaller gear, but it can deliver greater torque. In a gear train, the gear ratio determines how angular speed and torque change from input to output.
Compound gears let engineers combine several ratios in a compact system to get large changes in speed or force.
Understanding Gears, Torque, and Speed
A gear works because its teeth have carefully shaped curved sides. The common tooth shape is called an involute. This shape keeps the push between teeth smooth as the contact point moves from one tooth to the next.
Poorly shaped teeth can jam, wear quickly, or produce uneven motion. The teeth must have the same size and spacing to mesh correctly. Engineers describe this spacing with a standard called module or diametral pitch.
Gears made to different standards usually cannot work together, even when they look similar. The distance between shaft centers must be accurate too. A small error can make a mechanism noisy or cause teeth to skip.
Torque is the turning effect of a force. A door handle gives a familiar example. Pushing near the hinges is difficult because the turning distance is small.
Pushing at the handle is easier because the turning distance is larger. A large output gear uses this same idea. The force from the smaller gear acts farther from the large gear's center, creating more turning effect.
This helps a motor start a heavy load, such as a lift, a conveyor, or a robot arm. The cost is slower rotation.
No ordinary gear system creates extra energy. If the output has greater turning force, it must turn through a smaller angle during the same time.
Real gears lose some energy. Teeth rub slightly as they enter and leave contact. Bearings resist motion.
Oil or grease reduces friction and prevents metal surfaces from damaging each other. High speed gearboxes can heat up, so lubrication becomes especially important. Gear teeth need a little gap, called backlash, so they do not bind when parts expand or manufacturing dimensions vary.
Too much backlash causes a delay when the direction reverses. Students may notice this in a loose bicycle drivetrain, a hand drill, or a steering mechanism. Precision machines such as printers, telescopes, and robots often use methods to reduce backlash because small position errors matter.
Gear choices depend on the job. A cyclist selects a low gear for climbing because the pedals can turn more easily while the wheel turns less for each pedal turn. A high gear suits faster travel on level ground, but it needs more pedal force to start.
In a car, low transmission gears help the engine move the vehicle from rest. Higher gears allow the engine to run at a lower speed during cruising. An idler gear can be placed between two gears when designers need a certain shaft location or rotation direction.
It changes direction but does not change the overall speed ratio set by the first and last gears. When studying gear trains, trace each gear in order.
Mark its direction, count tooth ratios, then check whether the result makes physical sense. A slower output should have more torque when losses are small.
Key Facts
- Gear ratio = N_driven / N_driver, where N is the number of teeth.
- Angular speed relationship: omega_driver / omega_driven = N_driven / N_driver.
- Torque relationship for ideal gears: tau_driven / tau_driver = N_driven / N_driver.
- Tangential speed at contact is equal: v = r1 omega1 = r2 omega2.
- Meshed gears rotate in opposite directions; each additional gear reverses direction again.
- For an ideal machine, power is approximately conserved: P_in = P_out, so tau_in omega_in approximately equals tau_out omega_out.
Vocabulary
- Driver gear
- The driver gear is the input gear that receives power first and turns the rest of the gear system.
- Driven gear
- The driven gear is the output gear that is turned by another gear and delivers motion or torque to the load.
- Gear ratio
- Gear ratio is the ratio of the number of teeth on the driven gear to the number of teeth on the driver gear and tells how speed and torque change.
- Torque
- Torque is the turning effect of a force about an axis and is measured in newton meters.
- Compound gear train
- A compound gear train uses two or more gears fixed on the same shaft so multiple gear ratios can be combined.
Common Mistakes to Avoid
- Using gear diameter or tooth count backward in the ratio, which gives the inverse answer for speed and torque. Always define clearly which gear is the driver and which is the driven gear before calculating.
- Assuming a larger gear always spins faster, which is wrong because the larger meshed gear turns more slowly to keep contact speed the same. Larger driven gears increase torque but reduce angular speed.
- Ignoring direction of rotation, which leads to wrong predictions for the output motion. Every pair of meshed gears reverses direction once.
- Multiplying all gears in a simple train as if each changes the final ratio independently, which is wrong when some gears only act as idlers. Idler gears change direction and spacing but do not change the overall speed ratio.
Practice Questions
- 1 A 12 tooth driver gear turns a 36 tooth driven gear at 180 rpm. Find the output speed and the gear ratio.
- 2 A motor applies 8 N m of torque to a 20 tooth driver gear that meshes with a 60 tooth driven gear. Assuming ideal gears, find the output torque.
- 3 A gear train has a driver gear, an idler gear, and a final driven gear. Explain how the idler affects the output direction and why it does not change the overall gear ratio.
