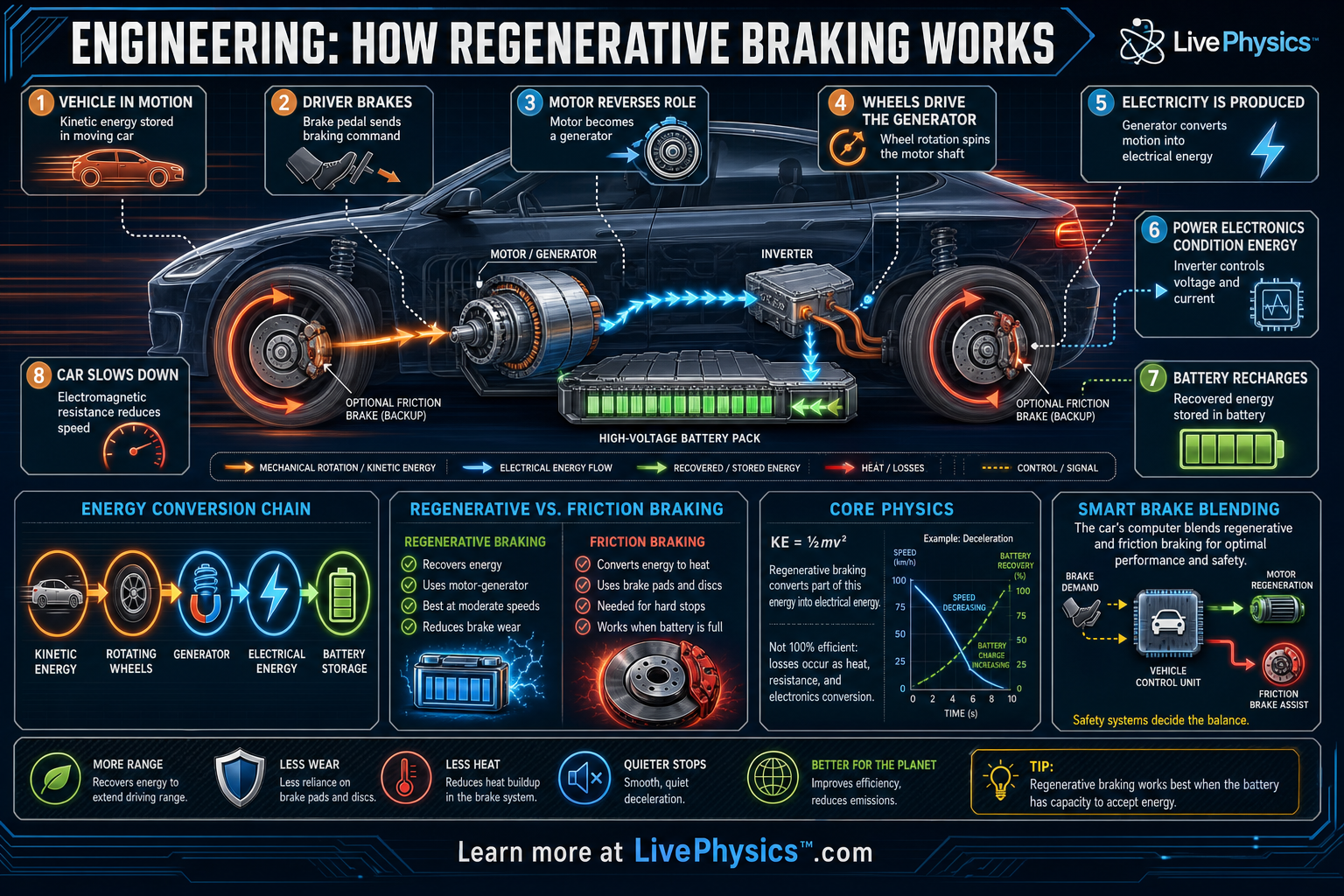

How Regenerative Braking Works
Turning a motor into a generator
Related Tools
Related Labs
Related Worksheets
Regenerative braking is a system in electric and hybrid vehicles that recovers some of the vehicle's kinetic energy during slowing. Instead of turning nearly all motion energy into heat at the brake pads, the drive motor is used as a generator. This improves efficiency, extends driving range, and reduces wear on friction brakes. It matters because transportation wastes a large amount of energy whenever vehicles slow down or stop.
Key Facts
- Kinetic energy of a moving vehicle is KE = 1/2 mv^2.
- During regenerative braking, wheel rotation drives the motor-generator, converting mechanical power into electrical power.
- Electrical power sent toward the battery is P = VI.
- Energy recovered is E = P t when power is approximately constant.
- Regenerative braking force depends on motor torque, with P = τω for rotating systems.
- Total braking may combine regenerative braking and friction braking when more stopping force is needed.
Vocabulary
- Regenerative braking
- A braking method that converts some vehicle motion energy into electrical energy for storage.
- Motor-generator
- An electric machine that can act as a motor to drive the wheels or as a generator to produce electricity.
- Kinetic energy
- The energy an object has because of its motion, given by KE = 1/2 mv^2.
- Battery management system
- An electronic control system that monitors and protects the battery during charging and discharging.
- Friction braking
- A braking method that slows a vehicle by converting motion energy into heat through rubbing surfaces.
Common Mistakes to Avoid
- Assuming regenerative braking recovers all kinetic energy is wrong because losses occur in the tires, motor, electronics, battery, and wiring.
- Forgetting that speed is squared in KE = 1/2 mv^2 is wrong because doubling speed makes the vehicle have four times as much kinetic energy.
- Thinking regenerative braking works the same at every speed is wrong because generator power and braking torque depend on wheel speed, motor limits, and battery charging limits.
- Ignoring friction brakes is wrong because vehicles still need them for emergency stops, low-speed stopping, full battery conditions, and situations where regenerative braking is limited.
Practice Questions
- 1 A 1600 kg electric car slows from 20 m/s to 10 m/s. How much kinetic energy is removed from the car?
- 2 During braking, a motor-generator sends 18 kW of electrical power to the battery for 6 s. If 80% of that electrical energy is stored, how much energy is stored in the battery?
- 3 Explain why regenerative braking is usually more effective in stop-and-go city driving than on a long highway trip at nearly constant speed.
