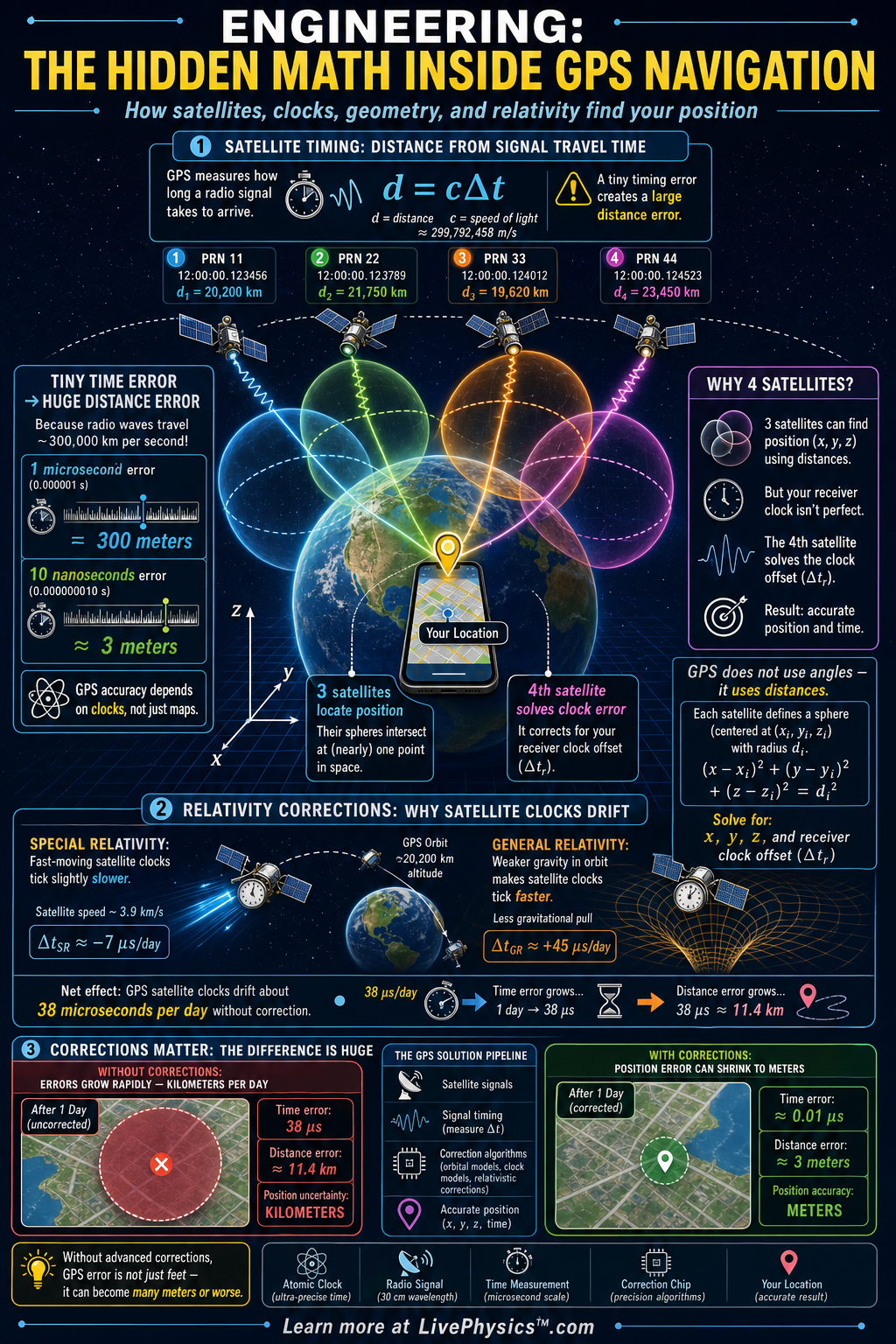

The Hidden Math Inside GPS Navigation
Trilateration, satellite timing, and relativistic correction
Related Tools
Related Worksheets
GPS navigation looks simple on a phone, but it depends on a network of satellites, atomic clocks, and careful mathematics. Each satellite broadcasts the exact time a signal was sent and its position in space. Your phone compares that send time with the receive time to estimate distance. Because radio signals travel at the speed of light, even a tiny timing error can move your calculated location by many meters.
The main math idea is trilateration, which finds your position from distances to several known satellite positions. Three satellites can locate a point in ideal 3D space, but a fourth satellite is needed because your phone clock is not as accurate as satellite atomic clocks. Engineers also correct for relativity, since satellite clocks tick at slightly different rates because of their speed and weaker gravity high above Earth. Without these corrections, GPS positions would drift quickly and become too inaccurate for driving, mapping, and emergency location.
Key Facts
- Signal distance is found from distance = speed × time, so d = cΔt.
- GPS radio signals travel at about c = 3.00 × 10^8 m/s.
- A 1 nanosecond timing error causes about 0.30 m of distance error.
- Trilateration uses distances to known satellite positions to solve for an unknown receiver position.
- A GPS receiver solves for four unknowns: x, y, z, and clock offset.
- Relativity corrections are needed because satellite clock rates differ from Earth clocks by about 38 microseconds per day.
Vocabulary
- Trilateration
- A method for finding position by using distances from three or more known locations.
- Pseudorange
- The estimated distance from a GPS receiver to a satellite, including error from the receiver clock.
- Atomic clock
- An extremely precise clock that measures time using the regular vibrations of atoms.
- Clock offset
- The difference between a receiver's internal clock time and the true GPS system time.
- Relativistic correction
- An adjustment for time differences caused by motion and gravity, as predicted by relativity.
Common Mistakes to Avoid
- Using only three satellites in real GPS calculations, which ignores the phone clock error. A fourth satellite is needed to solve for the receiver clock offset along with position.
- Treating the signal travel time as unimportant because it is very small, which misses the scale of light-speed measurement. A microsecond error equals about 300 meters of distance error.
- Confusing trilateration with triangulation, which uses angles rather than distances. GPS mainly uses measured signal travel times to estimate distances.
- Ignoring relativity because satellites are not moving near light speed, which is still incorrect for precision timing. Even small clock rate differences build up into large position errors over time.
Practice Questions
- 1 A GPS signal takes 0.071 seconds to travel from a satellite to a phone. Using c = 3.00 × 10^8 m/s, estimate the distance to the satellite in meters.
- 2 A receiver clock is wrong by 25 nanoseconds. About how many meters of distance error does this create if light travels 0.30 m in 1 nanosecond?
- 3 Explain why a GPS receiver needs signals from four satellites instead of only three when locating a phone on Earth.
