Angles are everywhere in geometry, from the corners of polygons to the directions of intersecting lines. Learning the main angle types helps students describe shapes, solve for unknown measures, and understand how figures fit together. Angle relationships are especially important because they let you find missing angles without measuring directly.
This makes geometry more logical and less dependent on drawing tools.
Different angle relationships come from how lines and rays are arranged. Complementary and supplementary angles are based on sums, while vertical and adjacent angles depend on position. When a transversal crosses parallel lines, several predictable angle pairs are formed, and these patterns are used often in proofs and problem solving.
Recognizing the relationship first is usually the fastest path to finding an unknown angle.

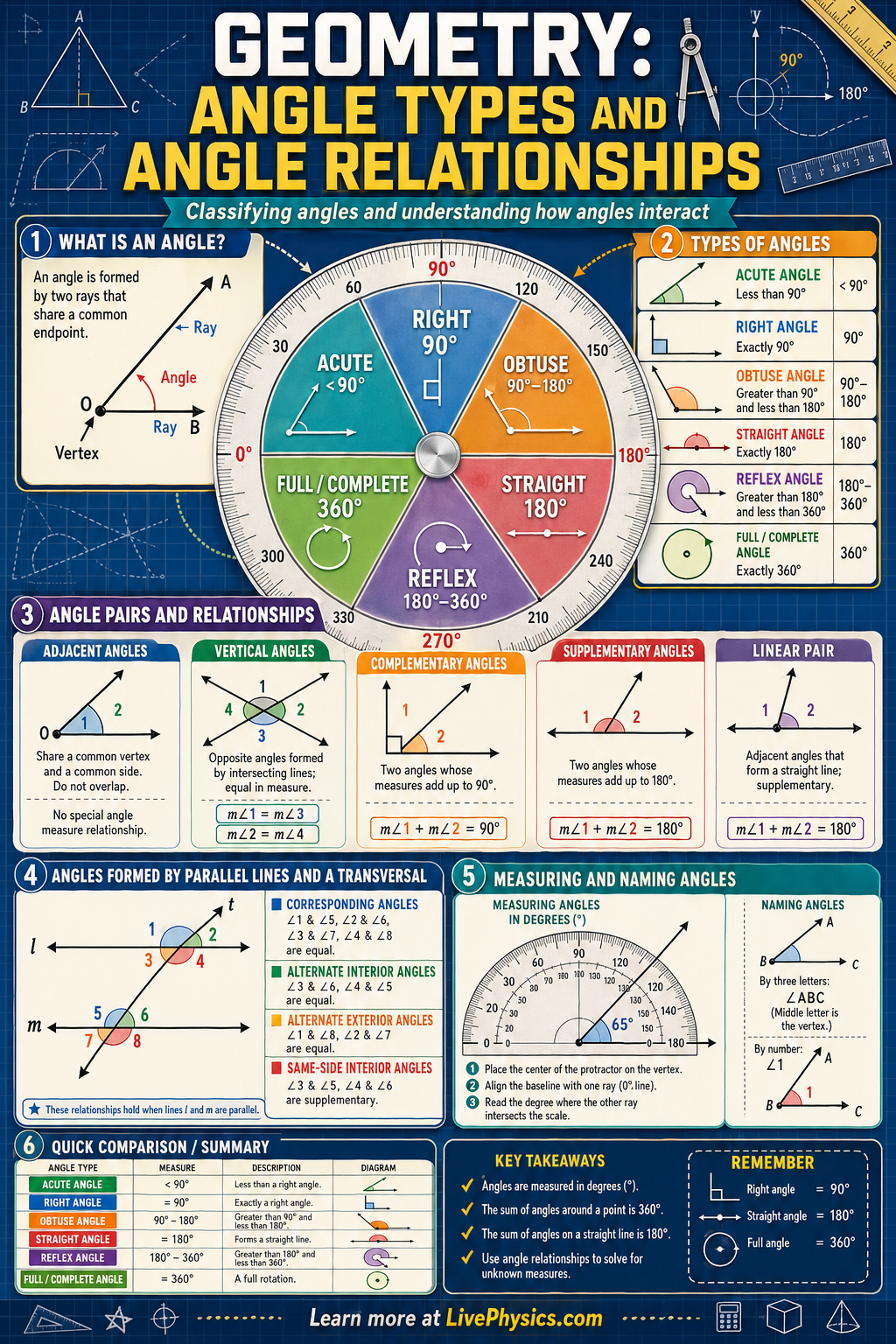

Understanding Angle Types and Angle Relationships
An angle is made by two rays that share one endpoint, called the vertex. A ray starts at the vertex and continues in one direction. The amount of turning from one ray to the other is the angle measure.
The length of the rays does not change that measure. A small drawing can contain long rays, while a large drawing can contain short rays. What matters is the opening between them.
This is useful when diagrams are not drawn to scale. Trust the given measures and relationship marks more than the appearance of the picture.
Some relationships come from rays placed side by side. Adjacent angles share a vertex and one common side, but their interiors do not overlap. If two adjacent angles form a straight line, they are called a linear pair.
Their measures must total one hundred eighty degrees because together they fill a half turn. This rule works even when the angles look uneven.
For example, if one angle in a linear pair measures one hundred twenty degrees, the other measures sixty degrees. Students should check that the outside rays really point in opposite directions before calling a pair linear.
When two full lines cross, they create four angles. Opposite angles are vertical angles. Vertical angles have equal measures because each one forms a linear pair with the same neighboring angle.
This fact is often used as the first step in a longer problem. If one angle at an intersection is known, its vertical partner has the same measure. The two remaining angles are each supplementary to it.
A single known angle can therefore determine all four measures. Careful labeling helps. Write the value beside every angle as soon as it is found, rather than trying to hold several facts in memory.
Parallel lines cut by a third line create another set of useful patterns. The third line is called a transversal. Corresponding angles occupy matching corner positions at the two intersections, so they are equal when the lines are parallel.
Alternate interior angles lie between the parallel lines on opposite sides of the transversal, and they are equal. Same side interior angles lie between the lines on one side of the transversal, and they are supplementary. These patterns appear in stair rails, window frames, road markings, and tiled floors.
In exercises, first identify the parallel line marks. Then trace the transversal through both intersections. Do not assume lines are parallel just because they look parallel.
Angle problems often become simple algebra problems after the relationship is identified. If complementary angles are described as three times a number and thirty degrees, their total equals ninety degrees. If a linear pair is described with expressions, set their total equal to one hundred eighty degrees.
Solve for the unknown, then substitute it back to find each angle measure. Always check that the final answers fit the angle types stated or shown. A negative measure is impossible, and a value greater than one hundred eighty degrees cannot describe an ordinary angle in these basic diagrams.
Good geometry work depends on reasons. Name the relationship beside each step, such as vertical angles, linear pair, or corresponding angles.
Key Facts
- Acute angle: 0 degrees < angle < 90 degrees
- Right angle: angle = 90 degrees
- Obtuse angle: 90 degrees < angle < 180 degrees
- Straight angle: angle = 180 degrees
- Complementary angles add to 90 degrees, so m angle 1 + m angle 2 = 90 degrees
- Supplementary angles add to 180 degrees, so m angle 1 + m angle 2 = 180 degrees
Vocabulary
- Angle
- An angle is formed by two rays that share a common endpoint called the vertex.
- Vertex
- The vertex is the common endpoint where the two sides of an angle meet.
- Adjacent angles
- Adjacent angles are two angles that share a vertex and one side without overlapping.
- Vertical angles
- Vertical angles are opposite angles formed when two lines intersect, and they always have equal measure.
- Transversal
- A transversal is a line that crosses two or more other lines at different points.
Common Mistakes to Avoid
- Confusing complementary with supplementary, because students mix up 90 degrees and 180 degrees. Complementary angles sum to 90 degrees, while supplementary angles sum to 180 degrees.
- Assuming adjacent angles are always equal, because they are next to each other. Adjacent angles only share a side and vertex, and their measures can be different.
- Thinking all intersecting angles form linear pairs, which is wrong because only adjacent angles that make a straight line are a linear pair. Opposite angles at an intersection are vertical angles instead.
- Using a picture that is not drawn to scale to guess angle size, which leads to wrong conclusions. Always use angle relationships or given measures instead of appearance.
Practice Questions
- 1 Two angles are complementary. One angle measures 37 degrees. What is the measure of the other angle?
- 2 Two angles form a linear pair. One angle measures 128 degrees. Find the measure of the other angle.
- 3 When two lines intersect, one angle is 52 degrees. Explain which other angles are equal to 52 degrees and which angles are supplementary to it.
