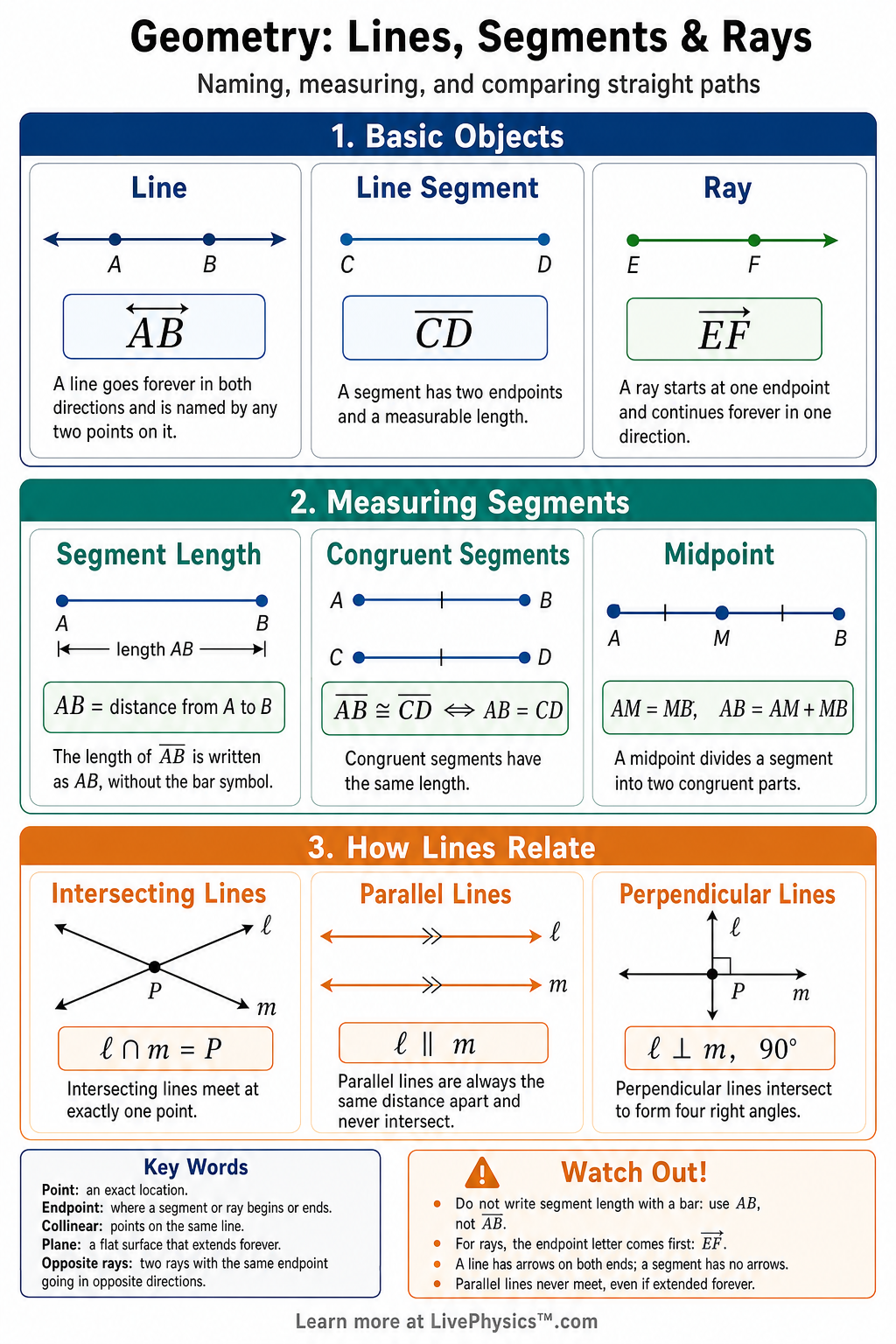

Lines, segments, and rays are the building blocks of geometry. This cheat sheet helps students recognize each figure, use correct notation, and understand how points create different parts of a line. It is useful for naming diagrams, reading geometric symbols, and solving problems with lengths and angles.
A line extends forever in two directions, a ray extends forever in one direction, and a segment has two endpoints. Students should know symbols such as , , and . They should also understand how intersecting, parallel, and perpendicular lines relate to angles and distance.
Key Facts
- A line through points and is written and extends forever in both directions.
- A line segment with endpoints and is written and has a measurable length .
- A ray that starts at and passes through is written , and the endpoint must be named first.
- If point is between and , then the Segment Addition Postulate says .
- Parallel lines never meet and are written .
- Perpendicular lines meet to form right angles and are written .
- Intersecting lines cross at exactly one point unless they are the same line.
- A right angle measures , and perpendicular lines form four angles.
Vocabulary
- Line
- A straight path of points that extends forever in two opposite directions.
- Line Segment
- A part of a line with two endpoints and a fixed length.
- Ray
- A part of a line that starts at one endpoint and extends forever in one direction.
- Endpoint
- A point at the beginning or end of a segment, or at the starting point of a ray.
- Parallel Lines
- Lines in the same plane that never intersect, no matter how far they extend.
- Perpendicular Lines
- Lines that intersect to form right angles measuring .
Common Mistakes to Avoid
- Writing a ray with the endpoint second is wrong because the endpoint must be named first, such as starting at .
- Using for a full line is wrong because means a segment with endpoints and , not an endless line.
- Assuming parallel lines are just lines that do not touch in a small drawing is wrong because parallel lines must never meet, even when extended forever.
- Forgetting the middle point in segment addition is wrong because only works when is between and .
- Calling any crossing lines perpendicular is wrong because perpendicular lines must form angles of exactly .
Practice Questions
- 1 Point is between and . If cm and cm, find .
- 2 Point is between and . If units and units, find .
- 3 Name the correct notation for a ray that starts at and passes through .
- 4 Explain why a line segment can be measured but a line cannot be measured.
Understanding Lines, Segments & Rays
Geometry drawings are models, not physical objects. A pencil mark has width and ends where the paper ends. A geometric line has no width and no end.
This difference matters when students measure a diagram. They can measure the picture of a segment with a ruler, but they cannot measure a whole line or a ray. The labeled dots show exact locations called points.
A point has position but no size. When several points lie on one straight path, they are called collinear.
Any two different points on that path can identify the same line. This is why a line may have more than one correct name.
The order of letters carries important information. For a segment, switching the two endpoint names does not change the object. The distance from A to B is the same as the distance from B to A.
For a ray, switching the letters changes its direction. Think of a flashlight. Its bulb is the fixed starting point, while the beam continues outward.
A road that begins at a town and continues in one direction can model a ray. A piece of string stretched between two knots models a segment because the knots limit its length. These real objects are only models, since real beams, roads, and strings always have some physical limits.
Segment addition is useful when a longer path is split into smaller pieces. A diagram may show points that look evenly spaced, but appearances can be misleading. Students should use given lengths, tick marks, or measurements instead of guessing from the drawing.
If one point lies between two others, the two smaller lengths combine to make the complete length. This idea appears in maps, rulers, number lines, and coordinate grids. On a coordinate grid, horizontal and vertical distance can be counted carefully.
A segment is horizontal when its points have the same vertical coordinate. It is vertical when its points have the same horizontal coordinate.
Line relationships help organize shapes and solve angle problems. Parallel paths keep a constant distance apart, which is why railroad tracks and ruled notebook lines are familiar models. Perpendicular paths create square corners, like the edges of many tiles, windows, and graph paper.
When one line crosses two parallel lines, it forms repeating angle patterns. Matching corner positions have equal angle measures. Angles inside the parallel lines on opposite sides of the crossing line also have equal measures.
These patterns are only valid after parallel lines are known or marked. Pay close attention to arrow marks for parallel lines, small square marks for right angles, and matching tick marks for equal lengths. Those marks give reliable information that a sketch may not show clearly.
