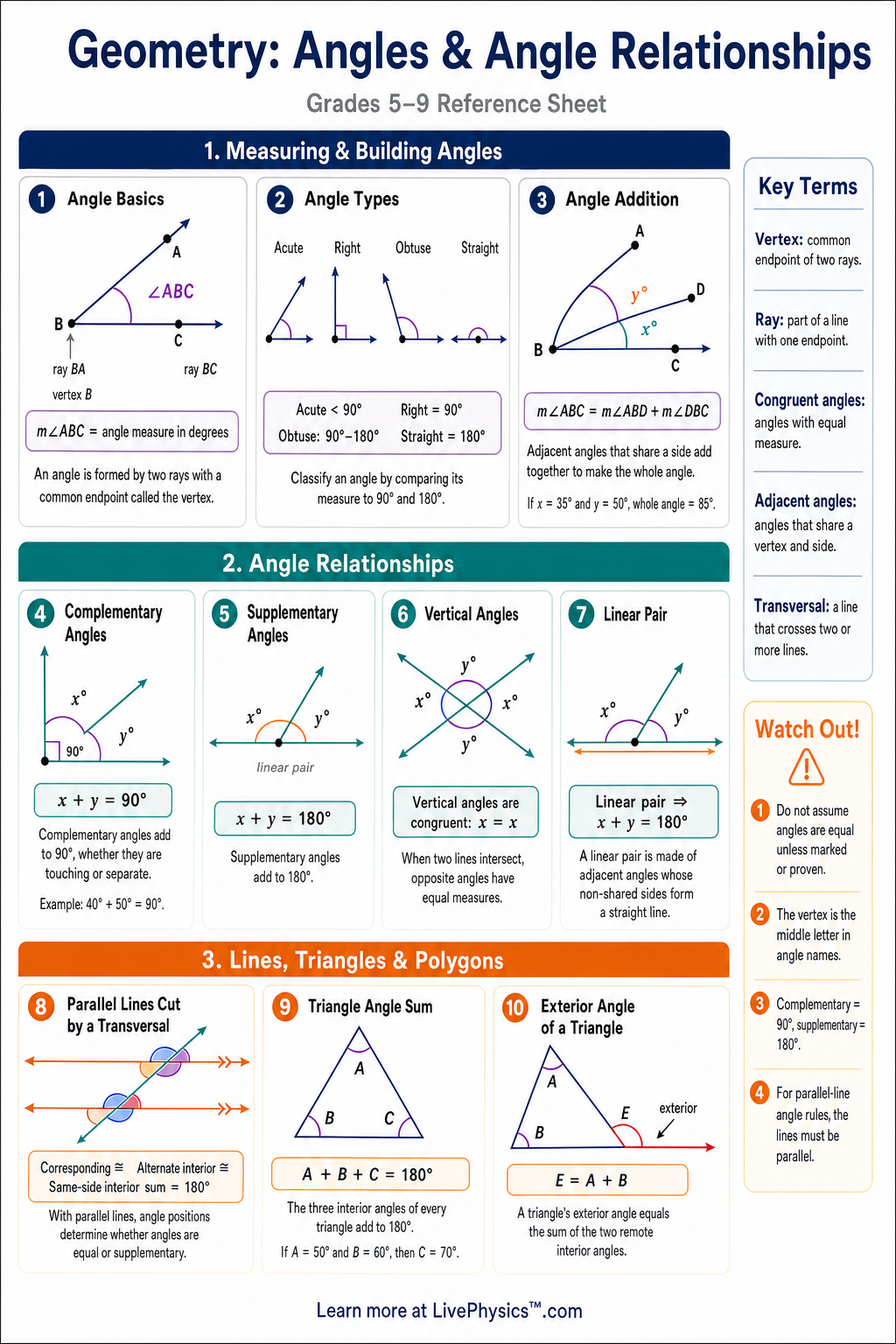

Angles & Angle Relationships cheat sheet - grade 5-9

Click image to open full size

Math Grade 5-9

Angles & Angle Relationships Cheat Sheet

A printable reference covering angle types, complementary angles, supplementary angles, vertical angles, linear pairs, and parallel-line angle relationships for grades 5-9.

TopicsShapesMeasurementGeometryMathematicsStudy Guide
Download PNG

Related Tools

Related Labs

Related Worksheets

Related Infographics

Study as Flashcards

Quick answer

Angle relationships help students find missing measures using complementary, supplementary, vertical, adjacent, linear-pair, and parallel-line angle rules.

Study next

This cheat sheet covers how to name, measure, classify, and compare angles in geometry. Students need these ideas to solve problems with intersecting lines, triangles, polygons, and parallel lines. It is designed as a quick reference for recognizing angle relationships and setting up equations.

Clear diagrams and formulas help students connect visual patterns to exact angle measures.

The most important concepts include acute, right, obtuse, straight, and reflex angles. Complementary angles add to 90∘90^\circ, while supplementary angles add to 180∘180^\circ. Vertical angles are congruent, and a linear pair is always supplementary.

When parallel lines are cut by a transversal, corresponding, alternate interior, and alternate exterior angles are congruent, while same-side interior angles are supplementary.

Key Facts

  • An acute angle measures greater than 0∘0^\circ and less than 90∘90^\circ.
  • A right angle measures exactly 90∘90^\circ and is often marked with a small square.
  • An obtuse angle measures greater than 90∘90^\circ and less than 180∘180^\circ.
  • A straight angle measures exactly 180∘180^\circ and forms a straight line.
  • Complementary angles have measures that add to 90∘90^\circ, so m∠A+m∠B=90∘m\angle A + m\angle B = 90^\circ.
  • Supplementary angles have measures that add to 180∘180^\circ, so m∠A+m∠B=180∘m\angle A + m\angle B = 180^\circ.
  • Vertical angles are congruent, so if two lines intersect, then m∠1=m∠3m\angle 1 = m\angle 3 and m∠2=m∠4m\angle 2 = m\angle 4.
  • If two parallel lines are cut by a transversal, corresponding angles are congruent and same-side interior angles are supplementary.

Vocabulary

Angle
An angle is formed by two rays that share a common endpoint called the vertex.
Vertex
The vertex is the common endpoint where the two sides of an angle meet.
Complementary Angles
Complementary angles are two angles whose measures add to 90∘90^\circ.
Supplementary Angles
Supplementary angles are two angles whose measures add to 180∘180^\circ.
Vertical Angles
Vertical angles are opposite angles formed when two lines intersect, and they always have equal measures.
Transversal
A transversal is a line that crosses two or more other lines, often creating special angle relationships.

Common Mistakes to Avoid

  • Confusing complementary and supplementary angles is wrong because complementary angles add to 90∘90^\circ, while supplementary angles add to 180∘180^\circ.
  • Assuming all angles that look equal are congruent is wrong because angle relationships must be proven by markings, measurements, or rules such as vertical angles.
  • Treating a linear pair as congruent is wrong because a linear pair only guarantees that the two angle measures add to 180∘180^\circ.
  • Using parallel-line angle rules without parallel lines is wrong because corresponding and alternate angle relationships require lines marked or stated as parallel.
  • Forgetting to write and solve an equation is wrong because unknown angle measures often require relationships such as x+35∘=180∘x + 35^\circ = 180^\circ or 2x=90∘2x = 90^\circ.

Practice Questions

  1. 1 Two angles are complementary. One angle measures 37∘37^\circ. What is the measure of the other angle?
  2. 2 Two angles form a linear pair. One angle measures 112∘112^\circ. What is the measure of the other angle?
  3. 3 Two parallel lines are cut by a transversal. If one corresponding angle measures 68∘68^\circ, what is the measure of its corresponding angle?
  4. 4 Explain how you can tell whether two angles formed by intersecting lines are vertical angles or a linear pair.

Understanding Angles & Angle Relationships

An angle is made by two rays that start at the same point. That shared point is the vertex. The size of an angle describes a turn from one ray to the other, not the length of either ray.

This is why a small drawing can contain a wide angle, while a large drawing can contain a narrow one. A protractor measures this turn in degrees.

Place its center mark exactly on the vertex, line up one ray with the zero line, then read the scale that begins at zero on that side. Many protractors have two number scales, so choosing the wrong scale is a common source of errors.

Angle relationships become useful because a diagram often gives only one measurement. From that one fact, geometry rules can determine several others. At an intersection, the angles around the point fill one complete turn.

That complete turn measures three hundred sixty degrees. Angles beside each other on a straight path fill half of that turn. These facts let students check their work.

If four angles around an intersection do not total three hundred sixty degrees, at least one value is wrong. A diagram is useful for seeing the structure, but it is not always drawn to scale. Trust the markings and stated information before trusting how wide an angle looks.

Parallel-line problems are really pattern problems. A transversal creates matching positions at two separate intersections. Students often learn names for these positions, but the location matters more than memorizing a list.

First identify the two parallel lines. Next find the transversal, which is the line crossing both of them. Then mark the interior region, the space between the parallel lines.

This makes it easier to tell interior pairs from exterior pairs. Trace the same corner position from one intersection to the other for corresponding angles.

For alternate pairs, look on opposite sides of the transversal. For same-side interior pairs, look between the parallel lines on one side of the transversal.

Algebra turns these visual relationships into solvable equations. Suppose one related angle is written as three times a number plus ten, while another is fifty five. If the relationship tells you the angles have equal measure, set three times the number plus ten equal to fifty five.

Solve for the number first, then substitute it back to find each angle measure. If the pair must form a straight line, write an equation whose two expressions add to one hundred eighty. Keep the variable separate from the angle measure.

The variable is a number used to build the measure, not the angle itself. These skills appear in building plans, road intersections, tiling patterns, computer graphics, and any task involving turns or directions.
