Transformations on the coordinate plane describe how a figure moves or changes position while keeping or changing its orientation in a predictable way. They are important because they connect algebra and geometry through ordered pairs and rules. Students use transformations to analyze symmetry, congruence, similarity, and patterns in graphs.
These ideas also appear in computer graphics, engineering, and map design.

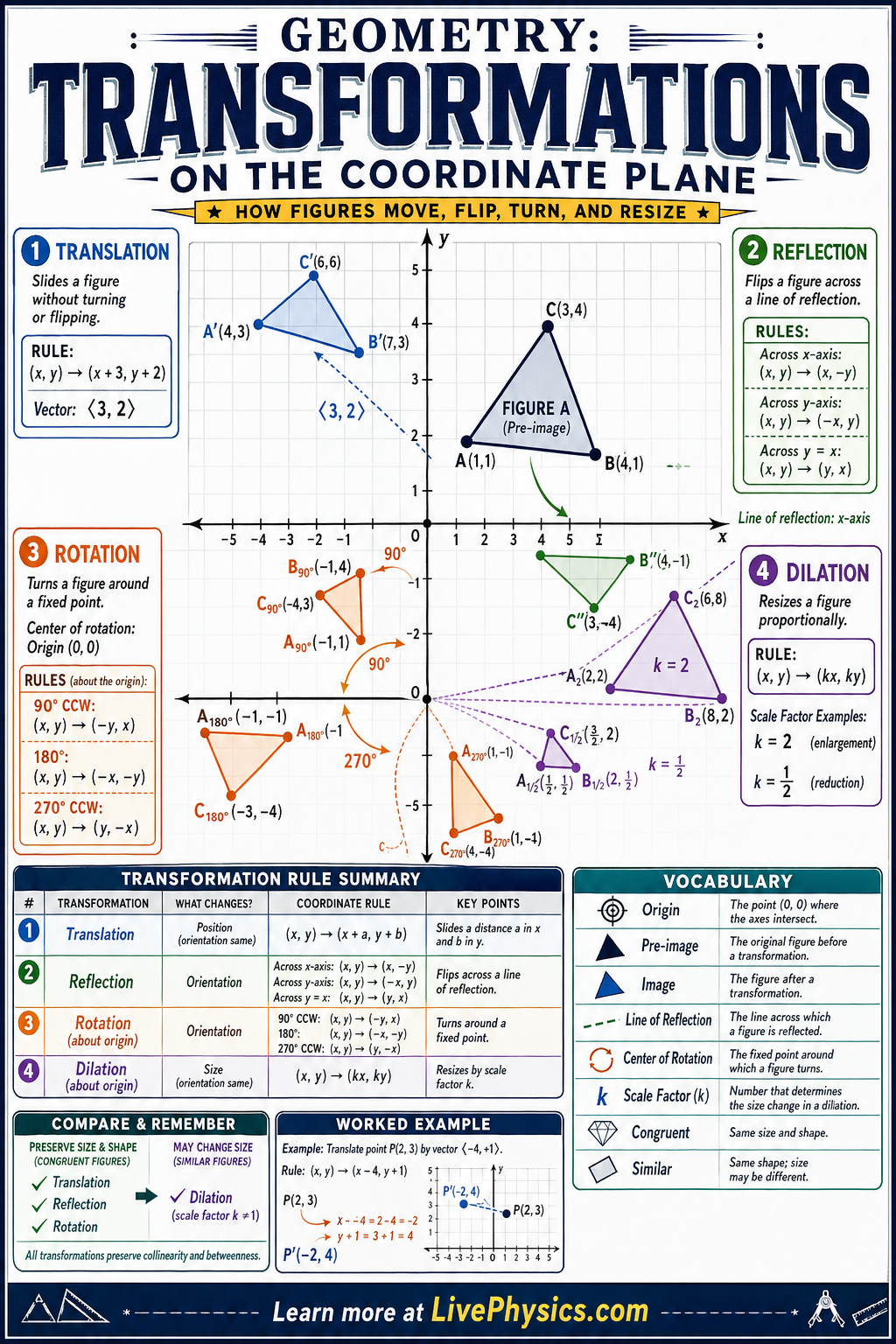

On a coordinate plane, each transformation follows a rule that changes every point of a figure. A translation slides a figure, a reflection flips it across a line, a rotation turns it around a center, and a dilation resizes it from a center point. By applying coordinate rules such as to , students can predict the exact image of any shape.
Comparing the original figure and its image helps reveal which lengths, angles, and orientations stay the same and which change.
Understanding Transformations on the Coordinate Plane
A transformation is easiest to understand by tracking matching points. Name the original vertices A, B, and C, then name their images A prime, B prime, and C prime. Each original point must pair with one image point.
This prevents a common mistake of moving only part of a shape or mixing up vertices. A translation gives every point the same horizontal change and the same vertical change.
The segments connecting each point to its image are parallel and equal in length. This is why a translated figure keeps its size, shape, angle measures, and direction of tracing around the figure.
Reflections require careful attention to the mirror line. A point and its reflected image sit the same perpendicular distance from that line, on opposite sides. The mirror line is the midpoint path between every pair of matching points.
Points already on the mirror line do not move. A reflection preserves lengths and angles, so the image is congruent to the original. Its orientation reverses, though.
If the vertices of a triangle are listed clockwise before the reflection, they will be listed counterclockwise afterward. This change in orientation helps students tell a reflection apart from a slide or a turn.
For rotations, the center matters as much as the angle. Every point stays the same distance from the center while its direction from the center changes. Before using a coordinate rule, picture the point as an arrow starting at the center.
A quarter turn changes a horizontal direction into a vertical direction. A half turn sends each point directly through the center to the opposite side. Many errors happen when students use a clockwise rule for a counterclockwise turn.
Drawing a small arrow near the origin can help. When the center is not the origin, shift the center to the origin in your thinking, rotate the point, then shift back.
Dilations behave differently because they change distance from the center. A scale factor greater than one moves every image point farther away. A scale factor between zero and one pulls every image point closer.
Corresponding side lengths change by the same factor, while angle measures stay equal. This creates similar figures rather than congruent figures, except when the scale factor is one. Negative scale factors place the image on the opposite side of the center and resize it.
Transformations appear when a phone map zooms, when a game sprite turns, when a logo is mirrored, or when an architect scales a drawing. Coordinate tables are useful because they reveal patterns, but a graph is still important. Check whether the plotted image has the expected location, size, orientation, and distances.
Key Facts
- Translation by vector : to
- Reflection across the x-axis: (x, y) to (x, -y)
- Reflection across the y-axis: (x, y) to (-x, y)
- Rotation 90 degrees counterclockwise about the origin: (x, y) to (-y, x)
- Rotation 180 degrees about the origin: (x, y) to (-x, -y)
- Dilation with scale factor k about the origin: (x, y) to (kx, ky)
Vocabulary
- Transformation
- A transformation is a rule that changes the position, orientation, or size of a figure on the coordinate plane.
- Translation
- A translation moves every point of a figure the same distance in the same direction.
- Reflection
- A reflection flips a figure across a line so that each point lands the same distance from the line on the opposite side.
- Rotation
- A rotation turns a figure around a fixed point called the center of rotation.
- Dilation
- A dilation changes the size of a figure by multiplying distances from a center by a scale factor.
Common Mistakes to Avoid
- Using the wrong sign in a translation rule, which moves the figure in the opposite direction from the one intended. Always match right and up with positive values and left and down with negative values.
- Confusing reflection rules, which gives the image on the wrong side of the axis or line. Across the x-axis only y changes sign, and across the y-axis only x changes sign.
- Mixing up the coordinates in a rotation, which produces an incorrect image. For a 90 degree counterclockwise rotation about the origin, switch the coordinates and make the new x negative: (x, y) to (-y, x).
- Assuming all transformations preserve size, which is wrong for dilations. A dilation changes side lengths unless the scale factor is 1, even though the shape stays similar.
Practice Questions
- 1 Triangle ABC has A(1, 2), B(4, 2), and C(2, 5). Translate the triangle by the vector (3, -2). What are the coordinates of A', B', and C'?
- 2 Point P(-3, 4) is rotated 180 degrees about the origin and then reflected across the x-axis. What are the final coordinates of the image?
- 3 A figure and its image have the same side lengths and angle measures, but the order of the vertices appears reversed. Which transformation most likely occurred, and how can you tell?
