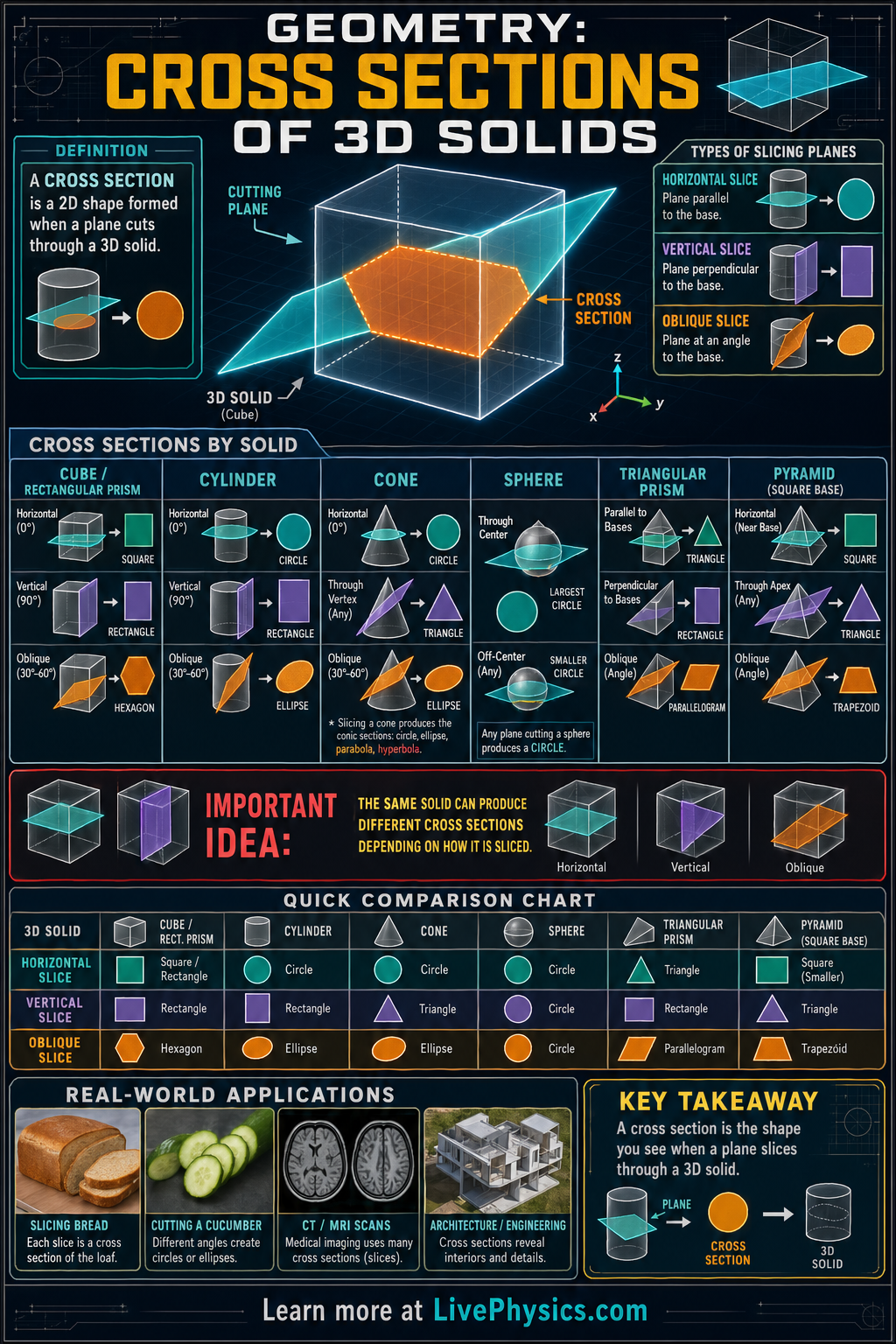

A cross section is the two dimensional shape made when a plane cuts through a three dimensional solid. Studying cross sections helps students connect flat geometry with solid geometry and visualize hidden structure inside objects. This idea appears in architecture, engineering, medicine, and manufacturing, where internal shapes matter as much as outer surfaces.
Learning to predict cross sections also strengthens spatial reasoning and diagram interpretation.
The shape of a cross section depends on both the solid and the angle and position of the cutting plane. A cube can produce squares, rectangles, or other polygons, while a cone can produce circles, triangles, ellipses, parabolas, or hyperbolas depending on the slice. In prisms and cylinders, slices parallel to the base usually match the base shape, while tilted slices often create different figures.
To solve problems, students compare the plane's direction to edges, faces, and bases of the solid.
Understanding Cross Sections of 3D Solids
A useful way to picture a slice is to imagine the cutting plane leaving a thin outline on the solid. That outline is formed where the plane meets surfaces, edges, and sometimes vertices. In a polyhedron, each time the plane crosses an edge, it creates a corner of the section.
Connecting those corners in order gives the polygon. This gives an important check for drawings.
A slice through a cube cannot make a five sided figure unless the plane crosses five of its edges. Students often draw a shape that looks possible on paper but does not match the number of edges actually crossed.
The position of the plane matters as much as its tilt. Move a plane through a pyramid while keeping it parallel to the base. The sections keep the same general shape, but they shrink as they move toward the tip.
Their side lengths change in a constant scale relationship because similar triangles are built into the side faces. This idea helps with area.
If every length in a section is half as large, its area is one fourth as large. A section near the apex can therefore have a much smaller area than one lower down, even when both have matching shapes.
Curved solids need a different kind of attention because their boundaries do not have corners. In a sphere, the widest circular section passes through the center. Sections farther from the center become smaller circles.
This follows from a right triangle formed by the sphere radius, the distance from the center to the cutting plane, and the radius of the circular section. Medical scans use this principle.
A scan shows many flat images at nearby positions, then software uses them to build a view of organs, bones, or other internal structures. Engineers use similar slices when checking the inside of pipes, cast parts, and drilled holes.
A careful sketch can prevent most mistakes. First draw the full solid lightly, including hidden edges with dashed lines when needed. Mark where the plane enters and leaves each face.
Then connect only points that lie on the same face, since a section boundary travels across surfaces rather than through empty space. Pay attention to whether the plane touches a vertex or runs along an edge.
These special positions can produce a triangle, a line segment, or a section with fewer sides than a nearby slice. Physical models made from cardboard, clay, fruit, or stacked paper layers are especially helpful because rotating the object reveals relationships that a flat diagram can hide.
Key Facts
- A cross section is the intersection of a plane and a solid.
- If a plane cuts a prism or cylinder parallel to its base, the cross section is congruent to the base.
- For a rectangular prism, a slice parallel to a face gives a rectangle.
- For a sphere of radius cut a distance from the center, the cross section is a circle with radius where .
- For a right circular cylinder with radius , a slice parallel to the base has area .
- For a cone, different slices can form a circle, ellipse, parabola, or hyperbola depending on the plane.
Vocabulary
- Cross section
- The two dimensional shape formed where a plane passes through a three dimensional solid.
- Plane
- A flat surface that extends infinitely in all directions within two dimensions.
- Prism
- A solid with two parallel congruent bases connected by flat faces.
- Cylinder
- A solid with two parallel congruent circular bases connected by a curved surface.
- Congruent
- Having the same shape and the same size.
Common Mistakes to Avoid
- Assuming every slice parallel to the ground matches the front view, which is wrong because the cross section depends on the plane's orientation relative to the solid's base or faces, not the viewer's perspective.
- Confusing the outer face of a solid with a cross section, which is wrong because a cross section is formed by an internal cut through the solid, not just by looking at one side.
- Thinking a tilted slice through a cylinder is always a circle, which is wrong because only slices parallel to the circular base are circles and many tilted slices are ellipses.
- Ignoring where the plane passes through the solid, which is wrong because moving the plane can change the size of the cross section and sometimes the shape as well.
Practice Questions
- 1 A cube has side length 6 cm. A plane cuts the cube parallel to one face. What is the shape of the cross section, and what is its area?
- 2 A sphere has radius 10 cm. A plane cuts the sphere 6 cm from its center. Find the radius of the circular cross section.
- 3 A right circular cone is sliced by a plane. Explain why a slice parallel to the base gives a circle, but a slanted slice that does not pass through the tip can give an ellipse.
