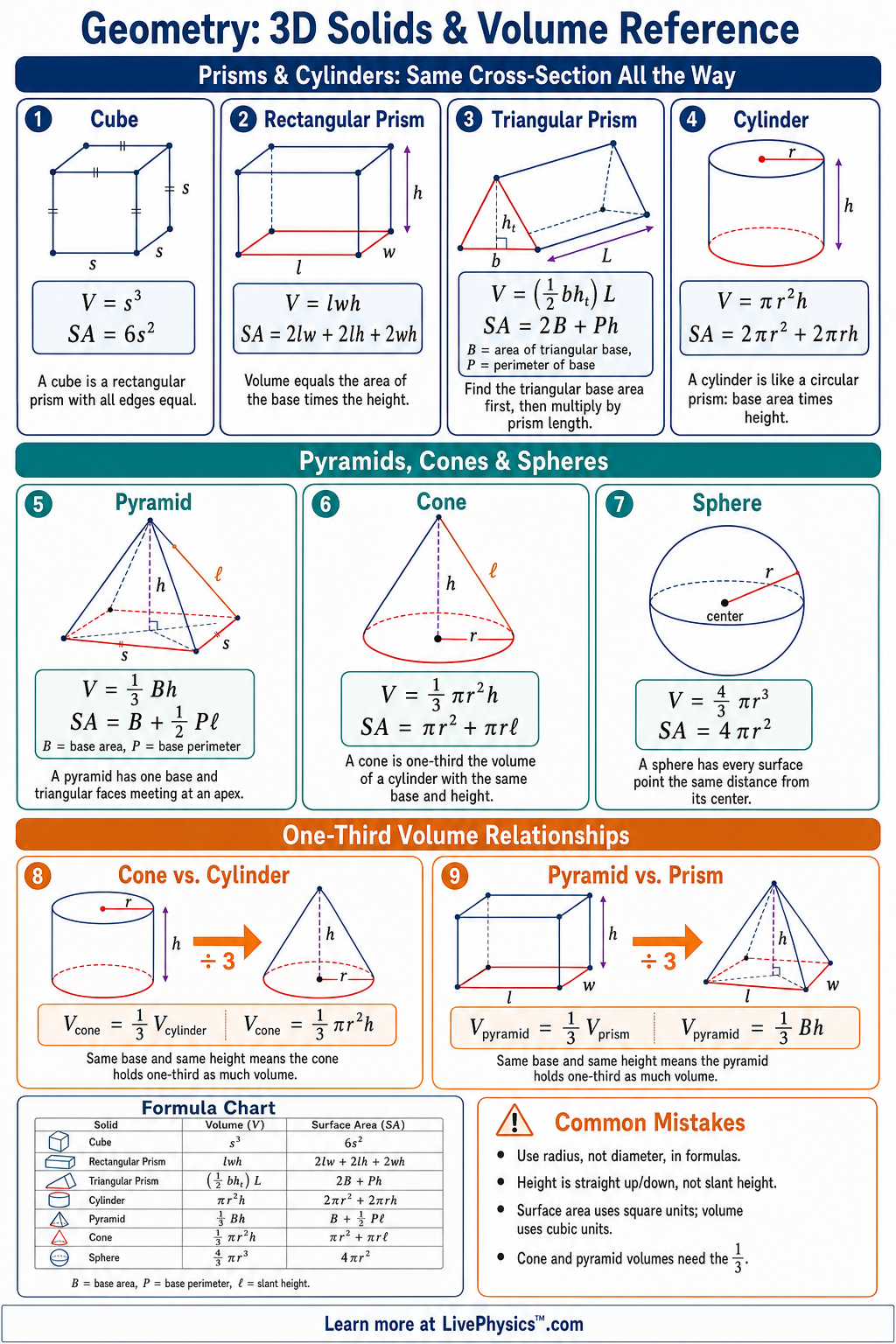

3D Solids & Volume Reference Cheat Sheet

A printable reference covering prism, cylinder, cone, pyramid, sphere volume formulas, base area, height, and $\frac{1}{3}$ relationships for grades 6-8.

Download PNG

Related Tools

Related Labs

Related Worksheets

Related Infographics

This cheat sheet covers the main three-dimensional solids students use in middle school geometry: prisms, cylinders, cones, pyramids, and spheres. It helps students connect each solid to its volume formula and identify the measurements needed before calculating. Students need this reference because many volume problems look similar but use different formulas. Clear formulas and shape categories make it easier to choose the correct method. The most important idea is that volume measures the amount of space inside a solid and is written in cubic units such as $\text{cm}^3$ . Prisms and cylinders use the pattern $V = Bh$ , where $B$ is the area of the base and $h$ is the height. Cones and pyramids use $V = \frac{1}{3}Bh$ because each has one-third the volume of a matching prism or cylinder. Spheres use $V = \frac{4}{3}\pi r^3$ , where $r$ is the radius.

Key Facts

The volume of any prism is $V = Bh$ , where $B$ is the area of the base and $h$ is the height.
The volume of a rectangular prism is $V = lwh$ , where $l$ is length, $w$ is width, and $h$ is height.
The volume of a cylinder is $V = \pi r^2h$ , because the circular base area is $B = \pi r^2$ .
The volume of a pyramid is $V = \frac{1}{3}Bh$ , where $B$ is the area of the base.
The volume of a cone is $V = \frac{1}{3}\pi r^2h$ , which is one-third of the volume of a cylinder with the same base and height.
The volume of a sphere is $V = \frac{4}{3}\pi r^3$ , where $r$ is the distance from the center to the surface.
Height $h$ means the perpendicular distance from the base to the opposite face, vertex, or center-aligned endpoint.
Volume is always measured in cubic units, such as $\text{in}^3$ , $\text{cm}^3$ , or $\text{m}^3$ .

Vocabulary

Volume: Volume is the amount of space inside a three-dimensional solid, measured in cubic units.
Base: A base is the face or circular region used to build the volume formula for a solid.
Base Area: Base area is the area of the base, often represented by $B$ in formulas like $V = Bh$ .
Height: Height is the perpendicular distance from a base to the opposite face or point of a solid.
Radius: Radius is the distance from the center of a circle or sphere to its edge, represented by $r$ .
Cubic Unit: A cubic unit is a unit for volume, such as $\text{cm}^3$ , that represents a cube with side length $1$ unit.

Common Mistakes to Avoid

Using surface area instead of volume is wrong because volume measures space inside the solid, not the area covering the outside.
Forgetting the factor $\frac{1}{3}$ for cones and pyramids is wrong because these solids have one-third the volume of a matching cylinder or prism.
Using diameter as radius is wrong because formulas such as $V = \pi r^2h$ and $V = \frac{4}{3}\pi r^3$ require $r$ , so the diameter must be divided by $2$ .
Using slant height instead of perpendicular height is wrong because volume formulas require the straight vertical height $h$ , not the diagonal side length.
Writing square units for volume is wrong because volume uses cubic units, such as $\text{cm}^3$ , not $\text{cm}^2$ .

Practice Questions

1 Find the volume of a rectangular prism with length $8\text{ cm}$ , width $5\text{ cm}$ , and height $3\text{ cm}$ .
2 Find the volume of a cylinder with radius $4\text{ in}$ and height $10\text{ in}$ , using $\pi \approx 3.14$ .
3 Find the volume of a cone with radius $6\text{ m}$ and height $9\text{ m}$ , using $V = \frac{1}{3}\pi r^2h$ .
4 A cone and a cylinder have the same circular base and the same height. Explain why the cone has volume $\frac{1}{3}$ of the cylinder.
