A quadrilateral is any polygon with four sides, but not all quadrilaterals have the same properties. The quadrilateral family tree helps students organize shapes by shared features such as parallel sides, equal sides, and right angles. This matters because many geometry problems become easier when you know which properties always go together.
A family tree also shows that one shape can belong to more than one category at the same time.

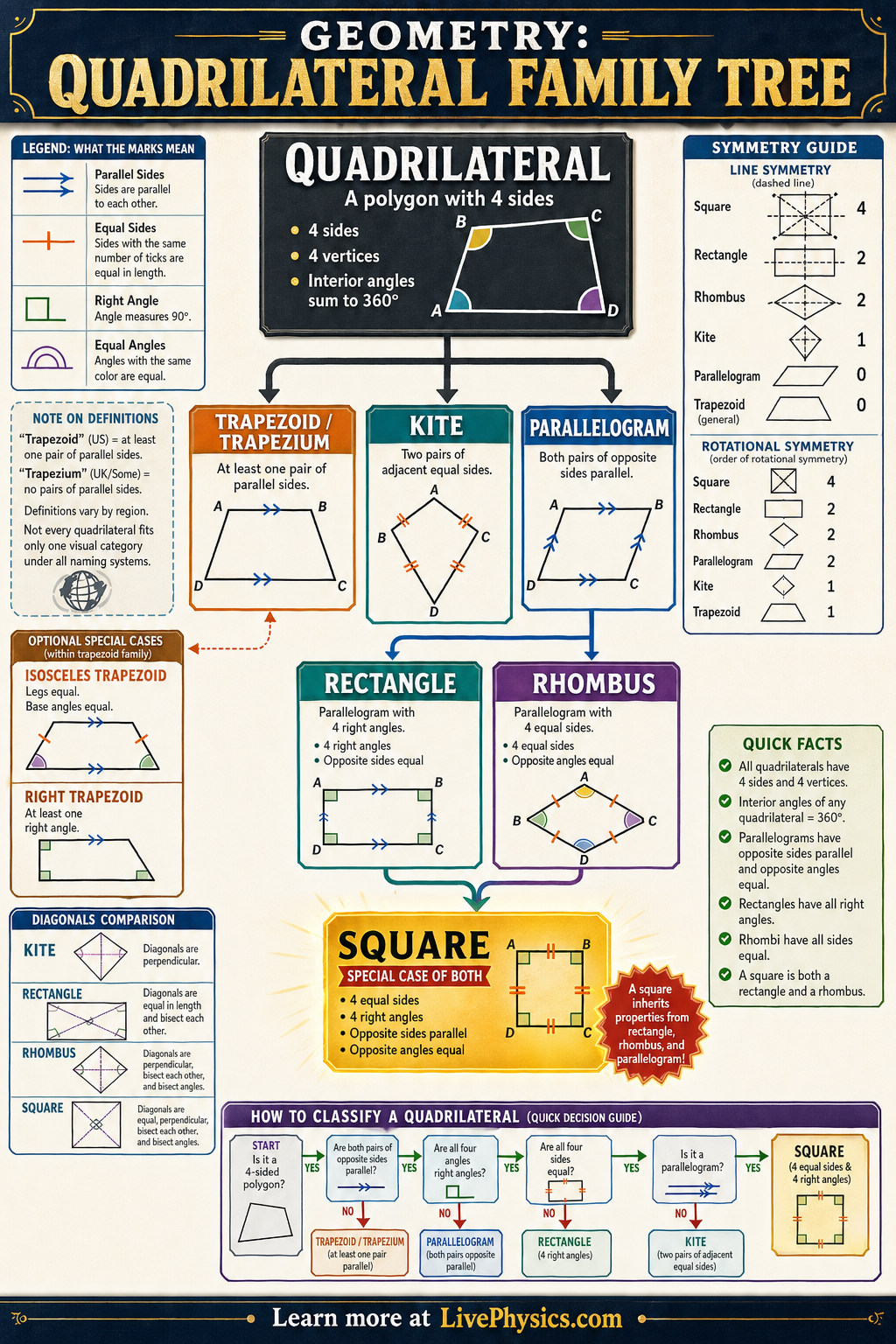

The hierarchy starts with the broad category Quadrilateral and then branches into groups like trapezoid, kite, parallelogram, rectangle, rhombus, and square. Each lower branch adds more conditions, so the shapes become more specific. For example, every square is both a rectangle and a rhombus, and both of those are types of parallelograms.
Understanding these inheritance relationships helps with proofs, classification, symmetry, and finding missing angles or side lengths.
Understanding Quadrilateral Family Tree
A family tree works because properties are inherited downward. If a fact is true for every parallelogram, it is automatically true for every rectangle, rhombus, and square. The reverse is not always true.
A rectangle does not have to have all sides equal, so it is not automatically a rhombus. This one way flow is important in geometry proofs.
Start with the most specific shape named in the problem, then collect every property that comes from the branches above it. Do not assume a property just because a diagram appears to show it.
Diagonals reveal many of the strongest differences between these shapes. In a parallelogram, the diagonals cut each other into equal halves. In a rectangle, the diagonals have equal length as well.
In a rhombus, the diagonals meet at right angles and each diagonal splits a pair of opposite angles into equal parts. A square has all of these diagonal properties. A kite has two pairs of nearby equal sides rather than opposite equal sides.
Its diagonals are perpendicular, and one diagonal bisects the other. That same diagonal usually bisects the pair of angles between the equal sides. These facts give useful routes for finding unknown lengths and angles.
The word trapezoid needs careful attention because textbooks use two conventions. Some define it as a quadrilateral with at least one pair of parallel sides. Under that inclusive definition, every parallelogram belongs to the trapezoid group.
Other textbooks require exactly one pair of parallel sides, which keeps parallelograms out of the trapezoid group. Read the definition used by your course before drawing the family tree. The same care applies to kites.
A rhombus can fit a broad definition of kite because it has adjacent equal sides, but some courses define a kite so that the two pairs have different side lengths. Definitions set the rules for classification.
These shapes appear in floor tiles, windows, road signs, bridge supports, picture frames, and design grids. Builders use rectangles because right angles make corners easy to align. Engineers use triangular supports inside quadrilateral frames because a plain four sided frame can change shape when pushed.
Coordinate geometry gives another practical way to identify the family. Slopes can show whether sides are parallel or perpendicular. Distance calculations can compare side lengths and diagonal lengths.
In a proof, mark only facts that are given or justified. Then look for a matching property test, such as diagonals bisecting each other to prove a quadrilateral is a parallelogram. Accurate labels matter more than a shape that merely looks familiar.
Key Facts
- The sum of the interior angles of any quadrilateral is 360 degrees.
- A parallelogram has both pairs of opposite sides parallel.
- A rectangle is a parallelogram with four right angles.
- A rhombus is a parallelogram with four equal sides.
- A square is both a rectangle and a rhombus, so it has four equal sides and four right angles.
- For any quadrilateral, angle 1 + angle 2 + angle 3 + angle 4 = 360 degrees.
Vocabulary
- Quadrilateral
- A polygon with exactly four sides and four angles.
- Parallelogram
- A quadrilateral with both pairs of opposite sides parallel.
- Rectangle
- A parallelogram with four right angles.
- Rhombus
- A parallelogram with all four sides equal in length.
- Square
- A quadrilateral with four equal sides and four right angles.
Common Mistakes to Avoid
- Thinking a square is not a rectangle, which is wrong because a rectangle only requires four right angles and a square has all four right angles.
- Assuming every trapezoid is a parallelogram, which is wrong because a trapezoid does not have to have two pairs of parallel sides.
- Forgetting that opposite sides of a parallelogram are equal, which is wrong because this property is used to solve for missing side lengths.
- Adding the angles of a quadrilateral to 180 degrees, which is wrong because quadrilaterals have interior angle sum 360 degrees, not 180 degrees.
Practice Questions
- 1 A quadrilateral has angles 95 degrees, 85 degrees, and 110 degrees. Find the fourth angle.
- 2 A shape has both pairs of opposite sides parallel, and one angle is 90 degrees. What specific type of quadrilateral must it be?
- 3 Explain why every square belongs in more than one branch of a quadrilateral family tree.
