Geometric transformations describe how a figure can move or change position on a coordinate plane while keeping or changing certain properties. They are important because they connect algebra, geometry, and visual reasoning in one system. Students use transformations to analyze symmetry, compare shapes, and model motion in math and science.
On a graph, transformations let you predict exactly where every point of a figure will go.

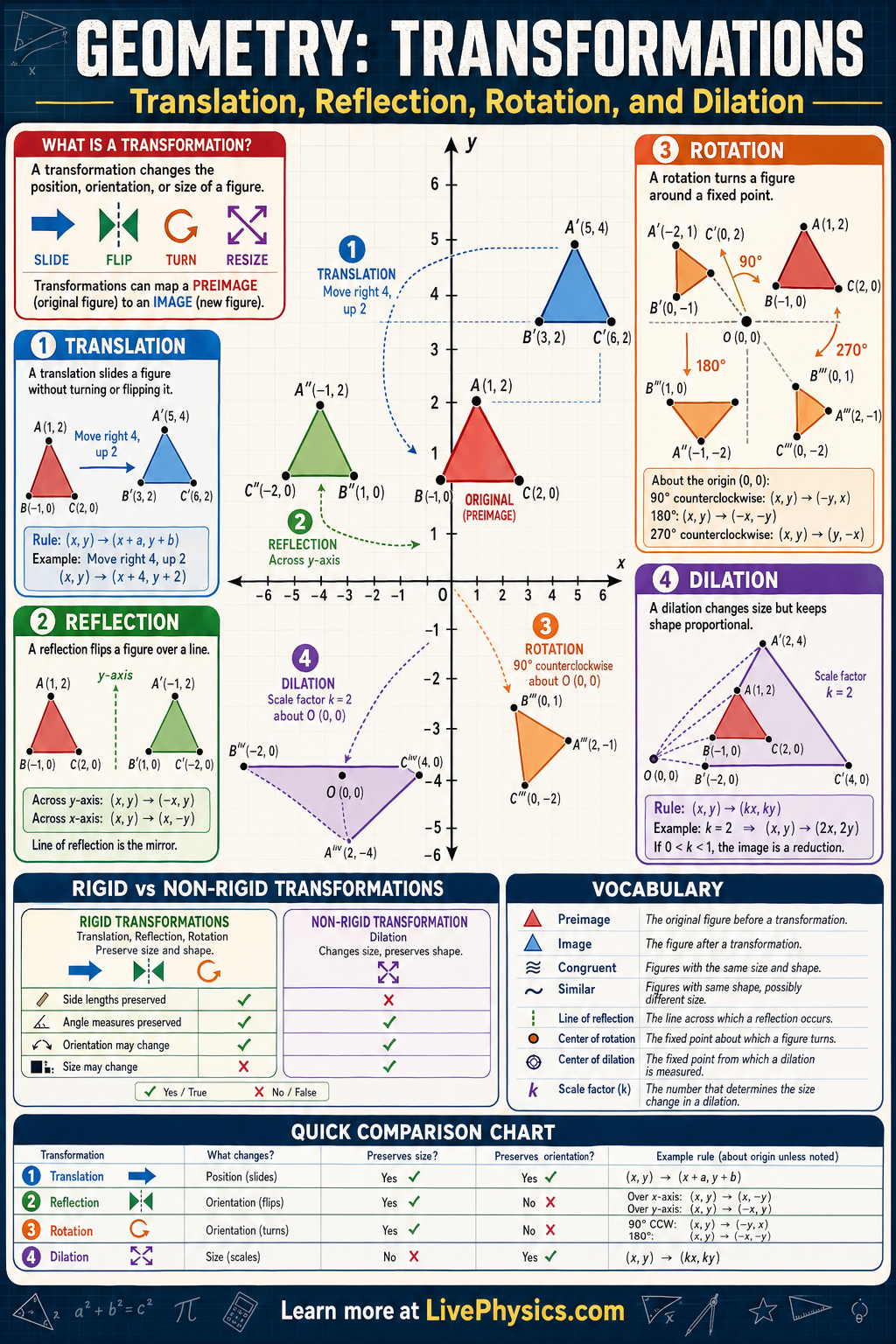

The four main transformations are translation, reflection, rotation, and dilation. A translation slides a figure, a reflection flips it across a line, a rotation turns it around a point, and a dilation changes its size by a scale factor. Each transformation follows a rule that maps original coordinates to new coordinates.
By learning these rules, students can sketch images quickly and check whether a transformation preserves length, angle measure, orientation, or size.
Understanding Geometric Transformations
A transformation is best understood as a matching between points. Choose one vertex of a shape, find its image, then do the same for every other vertex in the same order. The side joining two original vertices must correspond to the side joining their images.
This point by point thinking prevents a common mistake where a student moves only part of a figure correctly. Translations, rotations, and reflections are rigid motions. They keep every distance unchanged, so the original figure and image are congruent.
They keep angle measures too. A reflection is different because it reverses orientation. A shape that is traced clockwise before reflection is traced counterclockwise afterward.
The center or line of a transformation controls the result. For a rotation, each point travels along a circular path centered at the rotation point. Points closer to the center travel a shorter arc than points farther away, but every point turns through the same amount.
A point placed exactly at the center does not move. When the center is not the origin, students can subtract the center coordinates from each point first. This measures the point relative to the center.
They can then rotate those relative values and add the center coordinates back. The same idea helps with dilations centered at a point other than the origin.
Dilations need careful attention because they create similar figures rather than usually congruent figures. Corresponding angles stay equal, while all corresponding lengths are multiplied by the same scale factor. Areas change more dramatically.
If each length is multiplied by two, the area is multiplied by four. If each length is multiplied by three, the area is multiplied by nine. A scale factor between zero and one makes a reduction.
A scale factor greater than one makes an enlargement. With a positive scale factor, each image point lies on the same ray from the center as its original point. A negative scale factor places the image on the opposite side of the center.
Several transformations can be performed in sequence, and order matters. Moving a figure right and then rotating it can give a different final position from rotating it first and then moving it right. This is called a composition of transformations.
In coordinate work, label original points clearly, then label each intermediate image before finding the final image. Check the result with simple facts. A translation should leave parallel sides parallel.
A reflection should place matching points the same perpendicular distance from the mirror line. A rotation should keep each point the same distance from its center. These checks are useful in computer graphics, map design, architecture, animation, and patterns such as tiles, logos, and road signs.
Key Facts
- Translation by :
- Reflection across the x-axis:
- Reflection across the y-axis:
- Rotation 90 degrees counterclockwise about the origin:
- Rotation 180 degrees about the origin:
- Dilation with scale factor about the origin:
Vocabulary
- Transformation
- A rule that moves or changes a figure to create a new image.
- Preimage
- The original figure before a transformation is applied.
- Image
- The new figure produced after a transformation.
- Scale factor
- The number that tells how much a figure is enlarged or reduced in a dilation.
- Orientation
- The order and direction in which the vertices of a figure are arranged.
Common Mistakes to Avoid
- Mixing up translation and dilation, which is wrong because a translation only shifts a figure while a dilation changes its size.
- Changing both coordinates during a reflection across one axis, which is wrong because reflecting across the x-axis changes only y and reflecting across the y-axis changes only x.
- Using the wrong coordinate rule for a rotation, which is wrong because each angle and direction has a specific mapping such as degrees counterclockwise: .
- Assuming all transformations preserve orientation, which is wrong because reflections reverse orientation while translations and rotations preserve it.
Practice Questions
- 1 Triangle A has vertices (1, 2), (4, 2), and (2, 5). Translate it by <3, -1>. What are the new coordinates of the image?
- 2 Point P is at (-2, 5). First reflect P across the y-axis, then rotate the result 180 degrees about the origin. What are the final coordinates?
- 3 A figure is transformed and the image has the same size and shape as the original, but the vertex order is reversed. Which transformation most likely happened, and why?
