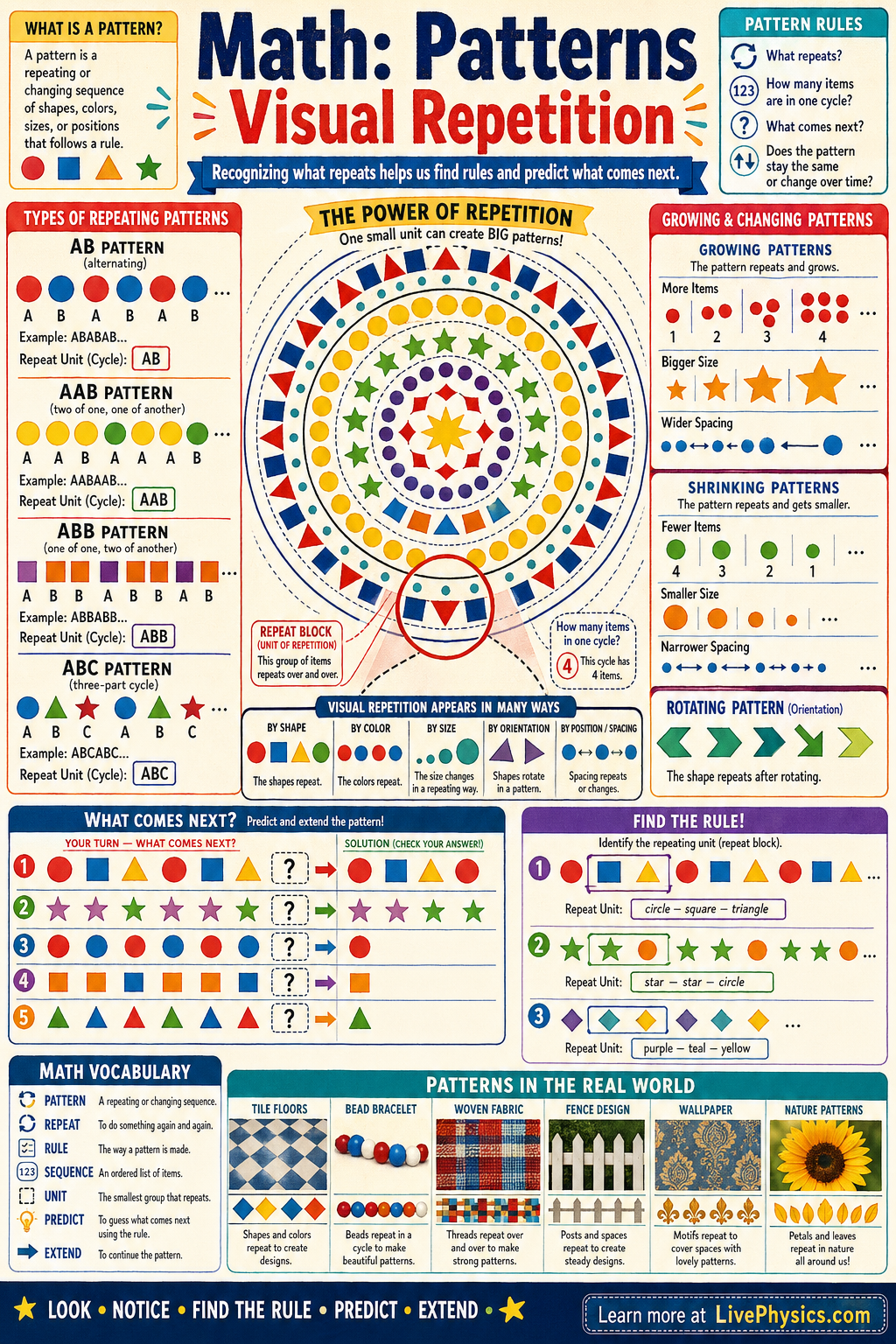

Patterns are repeated arrangements that help us describe order in math and in the world around us. Visual repetition appears in floor tiles, fabrics, art, architecture, and graphs. By studying how shapes, colors, and positions repeat, students learn to predict what comes next and describe structure clearly.
This idea connects geometry, algebra, and symmetry in one visual system.
A visual pattern can repeat by translation, rotation, reflection, or scaling, and each rule changes the design in a precise way. Mathematicians often look for the smallest repeating unit, then track how it is copied across space. Patterns can be described with words, diagrams, tables, or formulas, which makes them useful for both art and problem solving.
Recognizing repetition also helps students generalize rules and find efficient ways to count or model complex designs.
Understanding Patterns and Visual Repetition
A useful way to study a design is to mark one feature of a shape, such as a corner or a colored square, and follow it through the copies. On a coordinate grid, translation changes every point by the same horizontal amount and the same vertical amount. This means side lengths, angles, and direction stay unchanged.
A rotation needs more care because every point travels around one center. The distance from the center stays fixed, but the direction changes.
Students often confuse a turn around the origin with a turn around another point. Drawing the center first makes the rule much easier to check.
Reflections create mirror images, so orientation reverses. A letter shape that faces right may face left after a reflection, even though its size stays the same. This is an important clue.
A translation or rotation keeps the clockwise order of a shape's vertices, while a reflection reverses that order. In coordinate work, students should compare matching points one at a time. For a reflection across a vertical line, each matching pair lies on the same horizontal level.
For a reflection across a horizontal line, each pair stays in the same vertical line. The mirror line is exactly halfway between each point and its image.
Some patterns use more than one transformation. A border design may slide a motif several times, then flip the next row so the pieces fit together. The order matters.
Rotating a shape first and then moving it can give a different result from moving it first and then rotating it. This idea appears in tiling, computer graphics, logo design, and image editing tools.
It explains why a pattern can look regular without every copy facing the same direction. Students can describe a multi-step rule clearly by stating the starting figure, the center or line if needed, and the movement used at each step.
Growing patterns need counting as well as careful pictures. Instead of guessing from the next image, count a feature that changes, such as tiles, matchsticks, or boundary squares. Make a table with the figure number in one column and the total count in another.
Then compare consecutive totals. A constant increase shows an arithmetic pattern. If the increases themselves change by a constant amount, the rule may involve square numbers or another nonlinear relationship.
Check a rule against several figures, not just the first two. Early terms can hide a mistake, especially when a design has shared edges or overlapping pieces. A reliable rule explains both the visible construction and every count in the table.
Key Facts
- A pattern is a repeated arrangement that follows a rule.
- The core or unit of a pattern is the smallest part that repeats.
- Translation moves a shape without turning it: .
- Rotation turns a figure around a point by a fixed angle, often 90 degrees, 180 degrees, or 360 degrees.
- Reflection flips a figure across a line so corresponding points stay the same distance from the line.
- For a growing visual pattern, the th term can often be written as .
Vocabulary
- Pattern
- A pattern is an arrangement that repeats or changes according to a rule.
- Repeating unit
- The repeating unit is the smallest block of a design that can be copied to make the full pattern.
- Symmetry
- Symmetry means a figure matches itself after a flip, turn, or other transformation.
- Transformation
- A transformation is a mathematical change such as a slide, turn, flip, or resize of a figure.
- Sequence
- A sequence is an ordered list of terms that follows a specific rule.
Common Mistakes to Avoid
- Ignoring the repeating unit, which makes the pattern seem more complicated than it is. Always identify the smallest block that repeats before extending or analyzing the design.
- Assuming every visual pattern grows by addition, which is wrong because some patterns repeat without growing and others change by multiplication or transformation. Check whether the rule is repeat, translate, rotate, reflect, or scale.
- Mixing up reflection and rotation, which leads to incorrect drawings. A reflection flips across a line, while a rotation turns around a point.
- Counting visible shapes without tracking overlap or spacing, which can give the wrong total. Separate the pattern into units and count each unit carefully.
Practice Questions
- 1 A border pattern repeats the unit circle, square, triangle. If the pattern continues for 24 shapes, how many triangles are there?
- 2 A growing pattern has 5 tiles in figure 1, 8 tiles in figure 2, 11 tiles in figure 3, and 14 tiles in figure 4. Write a formula for the number of tiles in figure n and find the number of tiles in figure 12.
- 3 A design uses the same triangle copied around a center point, each copy turned by the same angle. Explain how this shows visual repetition and identify the transformation involved.
