Antibody Structure and Immunoglobulin Classes
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets
Antibodies, also called immunoglobulins, are proteins made by B cells that help the immune system recognize and remove foreign substances. Their structure is tightly linked to their function, so learning the parts of an antibody helps explain how immunity works in infection, vaccination, allergy, and autoimmune disease. Medical students use this topic to connect molecular structure with laboratory testing and clinical diagnosis. The five major immunoglobulin classes each have distinct locations and roles in the body.

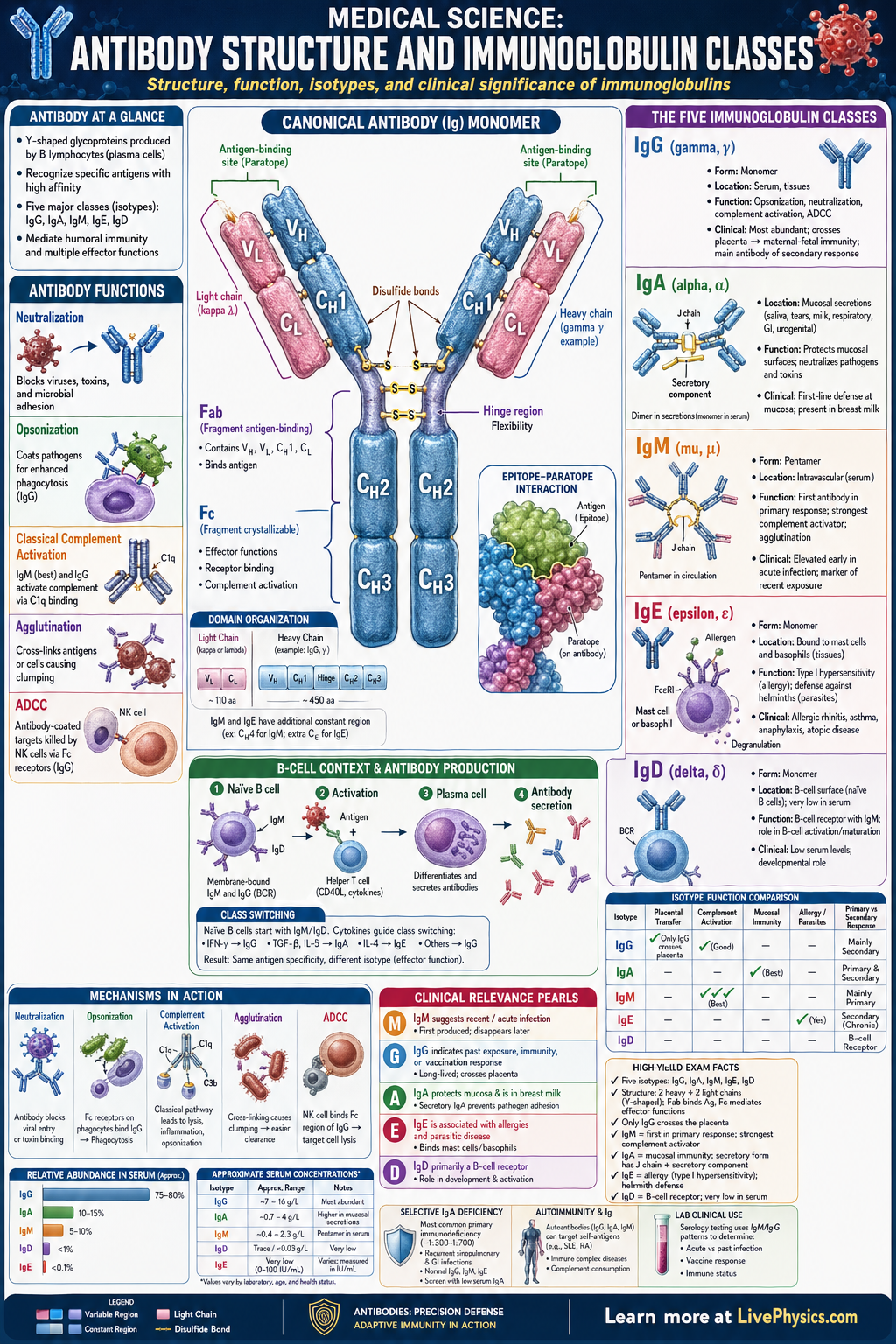

A typical antibody monomer has two heavy chains and two light chains arranged in a Y shape. The tips of the Y contain variable regions that bind antigen, while the stem contains the constant Fc region that interacts with immune cells and complement proteins. Differences in the heavy chain constant region create the classes IgG, IgA, IgM, IgE, and IgD, giving each class special properties such as placental transfer, mucosal protection, or allergy signaling. These structural differences are clinically important in immunodeficiency, infection patterns, hypersensitivity, and serologic testing.
Key Facts
- Basic antibody monomer structure: 2 heavy chains + 2 light chains linked by disulfide bonds
- Antigen binding occurs at the Fab regions, and effector functions occur at the Fc region
- Each antibody monomer has 2 antigen binding sites
- IgG is the main antibody in secondary immune responses and the only class that crosses the placenta
- Secretory IgA is usually a dimer in mucosal secretions, while IgM is usually a pentamer in plasma
- Primary response pattern: IgM appears first, then class switching can produce IgG, IgA, or IgE
Vocabulary
- Fab region
- The Fab region is the antigen binding part of an antibody located at the two arms of the Y.
- Fc region
- The Fc region is the constant stem of the antibody that binds immune cells and activates other defense mechanisms.
- Variable region
- The variable region is the part of the heavy and light chains whose amino acid sequence determines antigen specificity.
- Class switching
- Class switching is the process by which a B cell changes the antibody class it produces without changing antigen specificity.
- Complement activation
- Complement activation is a protein cascade that helps destroy microbes and can be triggered strongly by some antibodies such as IgM and IgG.
Common Mistakes to Avoid
- Confusing Fab with Fc, which is wrong because Fab binds antigen while Fc carries out many downstream effector interactions with cells and complement.
- Assuming all immunoglobulin classes have the same location and function, which is wrong because IgA protects mucosal surfaces, IgE mediates allergy and parasite defense, and IgG dominates blood and tissue immunity.
- Thinking IgM is always stronger than IgG in every situation, which is wrong because IgM is excellent at early response and complement activation but IgG is more important for long term systemic protection and memory responses.
- Forgetting that only IgG crosses the placenta, which is wrong because this property is a key clinical distinction used to explain passive fetal and neonatal immunity.
Practice Questions
- 1 An antibody monomer has 2 heavy chains and 2 light chains. How many total polypeptide chains are present in 6 antibody monomers?
- 2 A pentameric IgM molecule is made of 5 monomer-like units, each with 2 antigen binding sites. How many total antigen binding sites does one IgM pentamer have?
- 3 A patient has strong protection at mucosal surfaces such as the gut and respiratory tract. Which immunoglobulin class is most directly responsible, and why is its structure well suited to that role?
