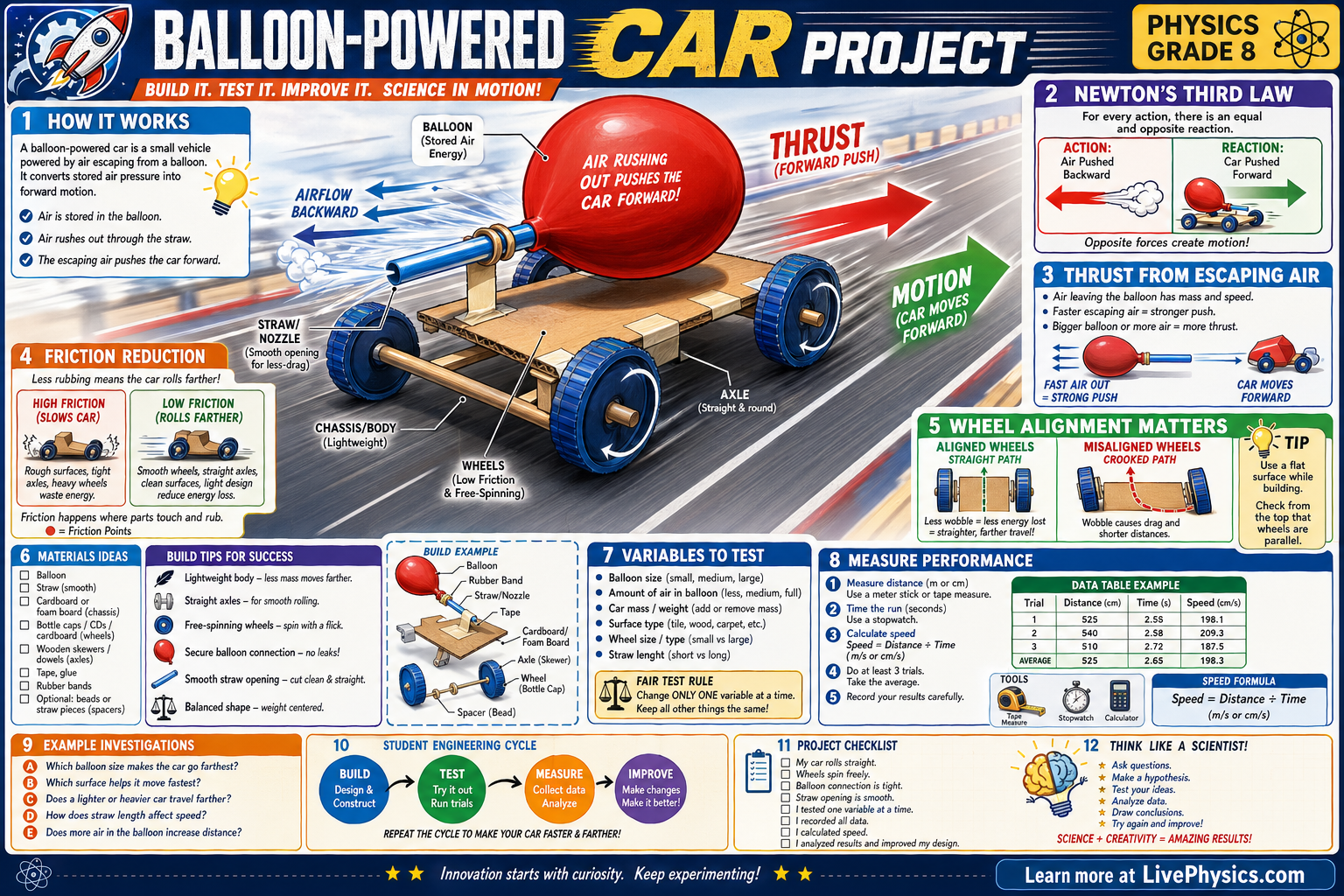

A balloon powered car is a simple project that shows how forces cause motion. When air rushes out of the balloon in one direction, the car moves in the opposite direction. This makes the project a clear example of Newton's third law of motion.
It also helps students connect science ideas to a real design challenge.
The car's performance depends on thrust, friction, mass, and wheel alignment. A larger push from escaping air can increase acceleration, but extra mass and rubbing parts can slow the car down. Careful building can reduce friction so more of the balloon's energy moves the car forward.
By testing one variable at a time, students can measure how design changes affect distance and speed.
Understanding Balloon-Powered Car Project
The balloon does more than hold air. Stretching its rubber stores elastic energy. When the neck is opened, the rubber squeezes the air and the pressure inside is greater than the pressure outside.
Air then flows through the straw or nozzle. The shape of that exit path matters. A bent straw can aim the airflow away from the straight-back direction, so part of the push is wasted sideways.
A loose connection leaks air before it can produce useful thrust. The strongest push usually happens at the start, when the balloon is fullest and its pressure is highest. As the balloon empties, the pressure falls, so the car often accelerates less and may eventually coast.
Newton's second law helps explain why two cars with the same balloon can move differently. Net force equals mass times acceleration. Net force means the overall forward or backward effect after all forces are combined.
Thrust acts forward, while rolling resistance, axle rubbing, air resistance, and any wheel scraping act against motion. A light chassis needs less force to gain speed than a heavy one. However, a car that is too light can be hard to build straight and stable.
The best design is not always the one with the fewest materials. It is the one that keeps mass low while staying rigid enough to hold the wheels in place.
Wheel and axle details often decide the result. Wheels should be parallel to each other and perpendicular to the axles. If one wheel points slightly sideways, it drags across the surface instead of rolling freely.
This can make the car curve, slow down, or stop early. Check that each axle turns without rubbing the body. Straws can work as axle holders, but they must be fixed securely and placed in a straight line.
Larger wheels may roll over small bumps more easily, though they can add mass. Smooth wheel surfaces and clean axles reduce energy losses.
On carpet, much energy is lost as the wheels press into the fibres. On a smooth floor, rolling is easier, but a very slippery surface can make the driven wheels or body slide in an unstable way.
Good testing turns a craft project into physics evidence. Choose one result to measure, such as travel distance, travel time, or average speed. Average speed equals distance divided by time.
Mark a clear start line and measure to the same point on the car each time. Repeat every trial several times because balloon inflation, release timing, and small floor differences create variation. Record all results in a table, then compare averages rather than trusting one unusually good run.
When testing balloon size, keep the chassis, surface, nozzle direction, and starting position unchanged. When testing mass, add the same small weights in the same location so balance does not become a hidden variable.
Watch for patterns, but be honest about uncertainty. A result that changes only a little may be caused by measurement error rather than a real design improvement.
Key Facts
- Newton's third law: for every action force, there is an equal and opposite reaction force.
- Escaping air pushes backward, and the car is pushed forward by thrust.
- Net force equation: .
- Speed can be calculated with .
- Reducing friction at the wheels and axles helps the car travel farther.
- A fair test changes one variable at a time, such as balloon size, car mass, or surface type.
Vocabulary
- Thrust
- Thrust is the forward force produced when air shoots out of the balloon backward.
- Friction
- Friction is a force that resists motion when surfaces rub against each other.
- Mass
- Mass is the amount of matter in an object and affects how hard it is to accelerate.
- Acceleration
- Acceleration is the rate at which velocity changes over time.
- Wheel alignment
- Wheel alignment means the wheels and axles are straight so the car rolls smoothly in one direction.
Common Mistakes to Avoid
- Adding too much mass to the car, which is wrong because a heavier car needs more force to accelerate and may not move far with the same balloon.
- Letting the wheels rub against the body, which is wrong because extra friction wastes energy and slows the car quickly.
- Testing several design changes at once, which is wrong because you cannot tell which variable caused the improvement or problem.
- Measuring only distance and ignoring time, which is wrong because two cars can travel the same distance but have different speeds.
Practice Questions
- 1 A balloon car travels 4.5 m in 3.0 s. What is its average speed?
- 2 A student pushes a 0.20 kg balloon car with a net force of 0.60 N. What is the car's acceleration?
- 3 A balloon car curves to the left instead of moving straight. Explain what design problem may be causing this and describe one change that could fix it.
