Floating and Sinking Boats

Buoyancy, Density, and Displacement

Download PNG Save to Pinterest

Related Tools

Related Labs

Related Worksheets

Related Cheat Sheets

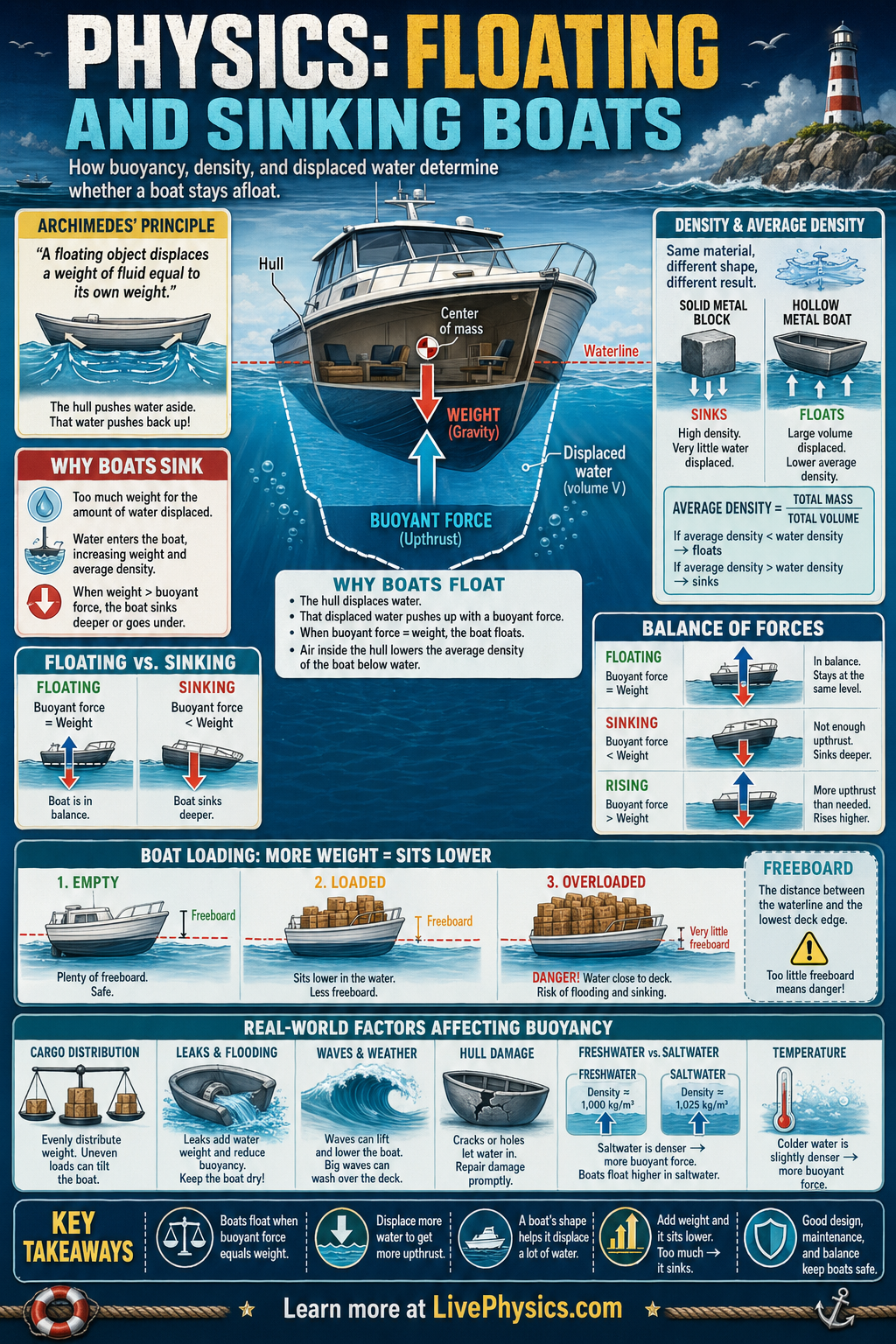

Boats float or sink because of the balance between weight and buoyant force. Weight pulls the boat downward due to gravity, while water pushes upward on the submerged part of the hull. A boat floats when these forces balance, and it sinks when the boat's weight becomes greater than the maximum buoyant force the water can provide. This idea helps explain why massive steel ships can float while a small dense object like a coin sinks.

The key physics comes from displacement. As a boat settles into the water, it pushes water aside, and the displaced water creates an upward buoyant force equal to the weight of that displaced water. A wide hollow hull lets a boat displace a large volume of water without using much mass, which lowers its average density. The waterline shows how much of the boat must be submerged to support its total weight, including cargo and passengers.

Key Facts

Buoyant force equals the weight of displaced fluid: $F_b = \rho_{\text{fluid}} V_{\text{displaced}} g$
Weight of the boat is $W = mg$
A floating boat is in equilibrium when $F_b = W$
If W > Fb,max, the boat sinks because the water cannot provide enough upward force
Average density determines floating: $\rho_{\text{avg}} = \frac{m}{V_{\text{total}}}$ , and an object floats if $\rho_{\text{avg}} < \rho_{\text{fluid}}$
Adding cargo increases m, so the boat must displace more water and sit lower in the water

Vocabulary

Buoyant force: The upward force a fluid exerts on an object that is partly or fully submerged.
Displacement: The volume of fluid pushed aside by an object placed in the fluid.
Waterline: The line on a boat that marks the level where the water surface meets the hull.
Hull: The main body of a boat that encloses air and interacts directly with the water.
Density: Mass per unit volume, usually written as $\rho = \frac{m}{V}$ .

Common Mistakes to Avoid

Thinking heavy objects always sink, which is wrong because floating depends on average density and displaced water, not just total mass.
Confusing mass with density, which is wrong because a large object can have more mass but still float if its volume is large enough.
Assuming buoyant force is constant, which is wrong because buoyant force changes with the amount of water displaced as the boat rises or sinks.
Ignoring cargo and passengers, which is wrong because extra weight increases the needed displacement and can push the boat below a safe waterline.

Practice Questions

1 A boat has a total mass of 1200 kg including passengers. How much buoyant force must the water provide for the boat to float at rest? Use $g = 9.8 \, \text{m/s}^2$ .
2 A boat displaces $1.8 \, \text{m}^3$ of fresh water. If $\rho_{\text{water}} = 1000 \, \text{kg/m}^3$ and $g = 9.8 \, \text{m/s}^2$ , what buoyant force acts on the boat?
3 A steel boat and a solid steel ball are made of the same material, but the boat floats while the ball sinks. Explain this using average density and displacement.
