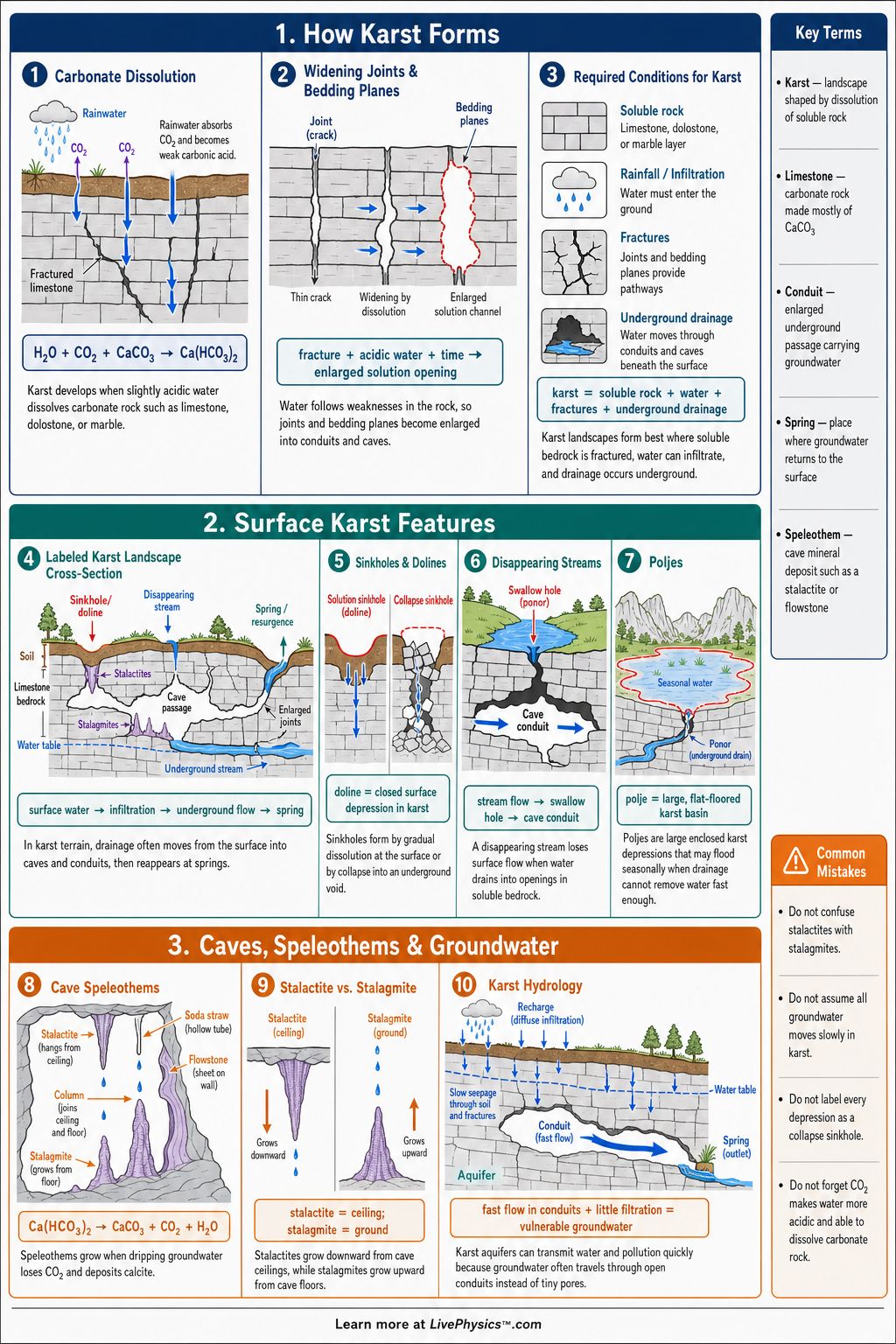

Karst Topography & Caves Reference Cheat Sheet
A printable reference covering karst formation, limestone dissolution, sinkholes, caves, groundwater flow, and speleothems for grades 9-12.
Related Tools
Related Labs
Related Worksheets
Related Infographics
Karst topography forms where slightly acidic water dissolves soluble bedrock, especially limestone, dolomite, and gypsum. This cheat sheet helps students connect surface landforms, underground caves, and groundwater movement in one system. It is useful for recognizing karst features on maps, diagrams, and real landscapes. Understanding karst also matters because these regions often have fragile groundwater supplies and sinkhole hazards. The core process is chemical weathering by carbonic acid, which forms when carbon dioxide mixes with water. In limestone areas, the main reaction is CaCO3 + H2CO3 -> Ca2+ + 2HCO3-. Water moves through joints, bedding planes, and fractures, enlarging them into caves, conduits, and sinkholes over time. Common cave deposits form when dissolved minerals come out of solution, building stalactites, stalagmites, columns, and flowstone.
Key Facts
- Karst forms mainly in soluble bedrock such as limestone, dolomite, gypsum, or rock salt when water dissolves the rock over long periods of time.
- Carbonic acid forms when water and carbon dioxide combine, using the reaction H2O + CO2 -> H2CO3.
- Limestone dissolves when carbonic acid reacts with calcite, using the reaction CaCO3 + H2CO3 -> Ca2+ + 2HCO3-.
- Karst groundwater often flows quickly through conduits and fractures, so pollution can spread faster than in many other aquifers.
- A sinkhole forms when the ground surface lowers or collapses into an underground void or into weakened, dissolved bedrock.
- Stalactites hang from cave ceilings, stalagmites grow upward from cave floors, and a column forms when they meet.
- A spring can form where groundwater flowing through a karst system reaches the surface at a lower elevation.
- Karst landscapes commonly have disappearing streams, caves, sinkholes, springs, and few surface rivers because water drains underground.
Vocabulary
- Karst topography
- A landscape shaped by the dissolving of soluble bedrock, often containing sinkholes, caves, disappearing streams, and springs.
- Carbonic acid
- A weak acid made when carbon dioxide dissolves in water, which helps weather limestone and other carbonate rocks.
- Sinkhole
- A closed depression or collapse feature at the surface caused by dissolving bedrock, sediment movement, or roof failure above a void.
- Cave
- A natural underground opening large enough for a person to enter, commonly formed when groundwater dissolves bedrock along fractures.
- Aquifer
- A body of rock or sediment that can store and transmit usable amounts of groundwater.
- Speleothem
- A cave mineral deposit, such as a stalactite, stalagmite, column, or flowstone, formed by precipitation of dissolved minerals.
Common Mistakes to Avoid
- Confusing stalactites and stalagmites is wrong because stalactites hang from the ceiling, while stalagmites grow up from the floor.
- Assuming all caves form by lava or waves is wrong because many caves in karst regions form by chemical dissolution of soluble bedrock.
- Thinking sinkholes appear only during earthquakes is wrong because sinkholes can form slowly by dissolution or suddenly when a weakened roof collapses.
- Treating karst groundwater like slow soil seepage is wrong because water in conduits can move rapidly and carry pollution long distances.
- Forgetting the role of carbon dioxide is wrong because rainwater becomes more effective at dissolving limestone after CO2 forms carbonic acid.
Practice Questions
- 1 A stream disappears into a limestone valley and reappears as a spring 2 kilometers away. What karst features are involved, and what path did the water likely take?
- 2 If groundwater in a karst conduit travels 600 meters in 4 hours, what is its average speed in meters per hour?
- 3 A stalagmite grows 0.2 millimeters per year. How many millimeters will it grow in 150 years, assuming the rate stays constant?
- 4 Why can pollution from a spill be especially dangerous in a karst region compared with an area where groundwater moves mainly through tiny pore spaces?
