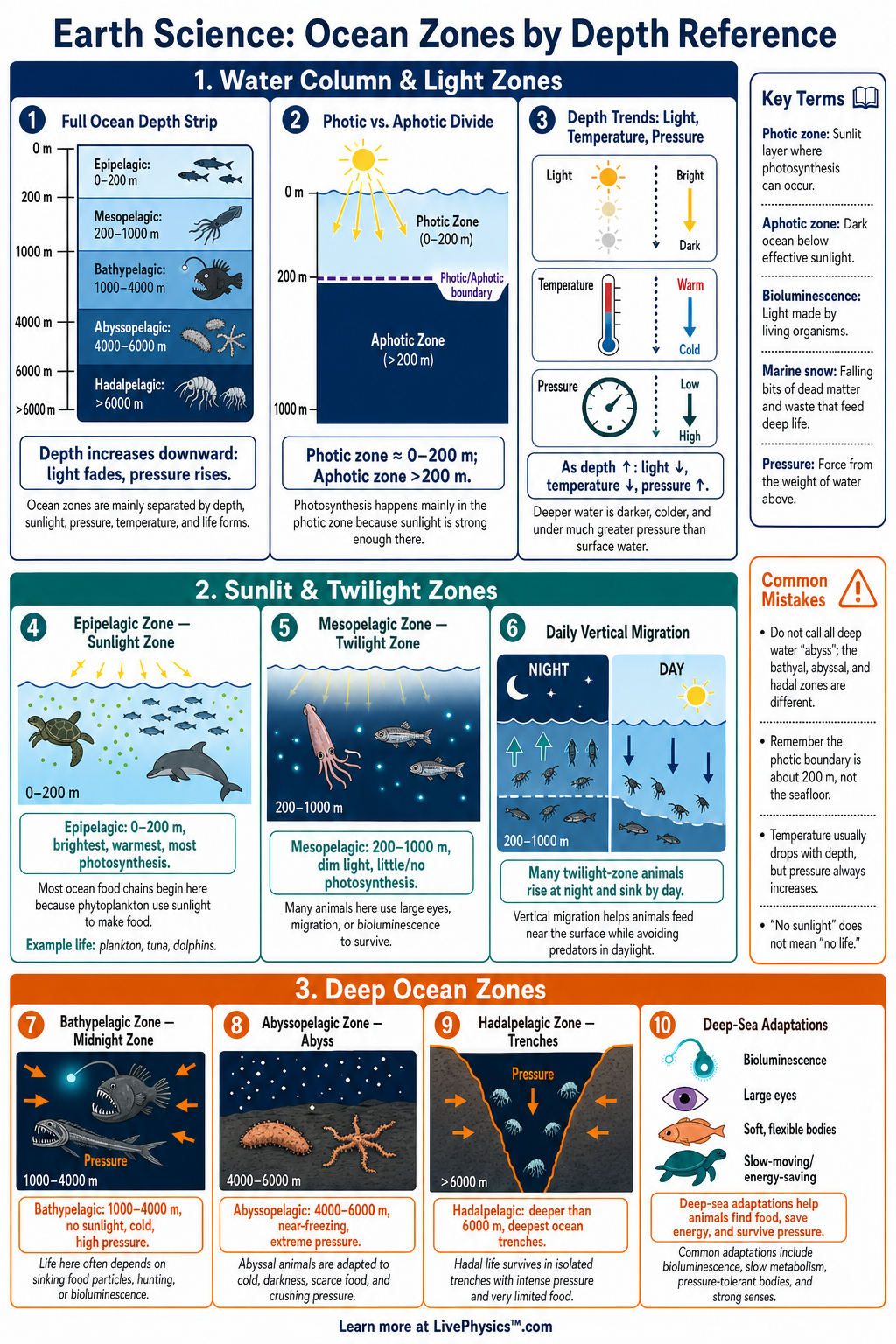

Ocean Zones by Depth Reference Cheat Sheet
A printable reference covering sunlight, twilight, midnight, abyssal, hadal ocean zones, depth ranges, pressure, light, and marine life for grades 6-8.
Related Worksheets
Ocean zones by depth help students understand how conditions change from the sunny surface to the deepest trenches. This cheat sheet covers the major depth zones, including the sunlight, twilight, midnight, abyssal, and hadal zones. Students need these zones to connect depth with light, temperature, pressure, and the types of organisms that can survive there. It is a quick reference for reading ocean diagrams, interpreting data, and comparing marine habitats. The most important pattern is that sunlight decreases as depth increases, while pressure increases. The epipelagic zone has enough light for photosynthesis, but deeper zones depend more on sinking food, hunting, scavenging, or chemosynthesis. Temperature usually gets colder with depth, except near hydrothermal vents where heat and chemicals support special ecosystems. Each ocean zone has a depth range, physical conditions, and living things adapted to that environment.
Key Facts
- The epipelagic zone, or sunlight zone, extends from 0 to about 200 meters and receives enough sunlight for photosynthesis.
- The mesopelagic zone, or twilight zone, extends from about 200 to 1,000 meters and has dim light but not enough for photosynthesis.
- The bathypelagic zone, or midnight zone, extends from about 1,000 to 4,000 meters and is completely dark except for bioluminescence.
- The abyssopelagic zone, or abyssal zone, extends from about 4,000 to 6,000 meters and is very cold, dark, and high pressure.
- The hadalpelagic zone, or hadal zone, is found in deep ocean trenches from about 6,000 to 11,000 meters.
- Water pressure increases by about 1 atmosphere for every 10 meters of depth, so pressure at 1,000 meters is about 100 atmospheres plus surface air pressure.
- Photosynthesis in the ocean mostly occurs in the top 200 meters because sunlight is strongest near the surface.
- Many deep ocean animals use bioluminescence, which is light made by living organisms, for attracting prey, finding mates, or confusing predators.
Vocabulary
- Epipelagic zone
- The upper ocean layer from 0 to about 200 meters where sunlight supports photosynthesis.
- Mesopelagic zone
- The ocean layer from about 200 to 1,000 meters where only faint light reaches and photosynthesis cannot occur.
- Bathypelagic zone
- The dark ocean layer from about 1,000 to 4,000 meters with cold temperatures and high pressure.
- Abyssopelagic zone
- The deep ocean layer from about 4,000 to 6,000 meters where conditions are dark, cold, and extremely high pressure.
- Hadalpelagic zone
- The deepest ocean zone found in trenches below about 6,000 meters.
- Bioluminescence
- Light produced by living organisms through chemical reactions inside their bodies.
Common Mistakes to Avoid
- Confusing the twilight zone with the midnight zone is wrong because the twilight zone has faint sunlight, while the midnight zone has no sunlight.
- Saying photosynthesis happens throughout the ocean is wrong because photosynthesis requires sunlight and mostly occurs in the epipelagic zone.
- Forgetting that pressure increases with depth is wrong because every 10 meters of seawater adds about 1 atmosphere of pressure.
- Assuming all deep ocean life depends directly on sunlight is wrong because many deep organisms rely on sinking food, predation, scavenging, or chemosynthesis.
- Using exact depth boundaries as if they never vary is wrong because ocean zone depths are approximate and can change with water clarity, location, and scientific source.
Practice Questions
- 1 A fish is found at a depth of 150 meters. Which ocean depth zone is it in, and is photosynthesis possible there?
- 2 A remotely operated vehicle dives to 2,500 meters. Which ocean zone is it exploring, and is sunlight present at that depth?
- 3 Estimate the water pressure increase at 800 meters using the rule that pressure increases by about 1 atmosphere every 10 meters.
- 4 Explain why animals in the bathypelagic and abyssopelagic zones often have special adaptations such as large eyes, large mouths, slow movement, or bioluminescence.
